Which information is included in the header of a UDP segment?

  1. Port numbers
  2. Sequence numbers
  3. IP addresses
  4. MAC addresses

Answer(s): A

Explanation:

The header of a User Datagram Protocol (UDP) segment primarily includes information essential for its lightweight, connectionless operation at the transport layer. Option A, Port numbers, is correct because both source and destination port numbers are fundamental components of a UDP header.
These 16-bit port numbers serve a crucial role in identifying the specific application or service running on a host that is sending or receiving data. The source port number indicates the application originating the data, while the destination port number specifies the application targeted to receive it. This mechanism allows multiple applications on a single host to share the same network connection simultaneously, a process known as multiplexing and demultiplexing. Without port numbers, the operating system would not know which specific application (e.g., DNS client, VoIP application) should handle an incoming UDP datagram.
In contrast, the other options are not part of the UDP segment header:
B: Sequence numbers are characteristic of Transmission Control Protocol (TCP) headers, not UDP. TCP, being a connection-oriented protocol, uses sequence and acknowledgment numbers to ensure reliable, ordered delivery of data and to manage flow control and congestion. UDP, by design, offers no such guarantees and therefore does not employ sequence numbers.
C: IP addresses are found in the IP packet header, which encapsulates the UDP segment at the network layer (Layer 3 of the OSI model). IP addresses are responsible for uniquely identifying the source and destination hosts across an internetwork, not for identifying applications within those hosts.
D: MAC addresses (Media Access Control addresses) reside in the data link layer header, typically an Ethernet frame, which encapsulates the IP packet. MAC addresses are used for host-to-host communication within the same local network segment (Layer 2 of the OSI model) and are resolved using protocols like ARP.
Therefore, the inclusion of port numbers in the UDP header is essential for directing data to the correct application processes on end devices, forming a core part of its functionality as a transport layer protocol.
Authoritative Links for Further Research:
RFC 768 - User Datagram Protocol: The foundational document defining UDP.
https://datatracker.ietf.org/doc/html/rfc768 RFC 793 - Transmission Control Protocol (for comparison with TCP headers):
https://datatracker.ietf.org/doc/html/rfc793 RFC 791 - Internet Protocol (for IP header details):
https://datatracker.ietf.org/doc/html/rfc791



Which standard contains the specifications for Wi-Fi networks?

  1. IEEE 802.11
  2. GSM
  3. IEEE 802.3
  4. LTE
  5. EIA/TIA 568A

Answer(s): A

Explanation:

The correct standard defining Wi-Fi networks is IEEE 802.11. This specific set of technical standards, developed by the Institute of Electrical and Electronics Engineers (IEEE), governs the implementation of wireless local area networks (WLANs). Wi-Fi itself is a certification mark and marketing term from the Wi-Fi Alliance, indicating product compliance with the underlying IEEE 802.11 standards. These standards specify the physical layer (PHY) and Media Access Control (MAC) layer protocols for wireless communication, operating primarily in the 2.4 GHz, 5 GHz, and more recently 6 GHz frequency bands.
Let's examine why the other options are incorrect:
B: GSM (Global System for Mobile Communications) is a standard for 2G cellular mobile communication networks, used for voice and data over wide areas, distinctly different from local Wi-Fi.
C: IEEE 802.3 specifies the standards for wired Ethernet networks. This standard defines the physical and MAC layers for traditional wired LANs using cables, making it fundamentally different from wireless Wi-Fi.
D: LTE (Long-Term Evolution) is a 4G cellular mobile communication standard, providing high-speed mobile broadband for smartphones and other cellular-enabled devices across wide geographical areas, not for local Wi-Fi.
E: EIA/TIA 568A (now TIA-568) is a telecommunications cabling standard that defines structured cabling system specifications, including wiring color codes and pinouts for Ethernet cables, not wireless network protocols.
The pervasive nature of Wi-Fi, underpinned by the IEEE 802.11 standard, is crucial for accessing cloud computing services. Client devices, such as laptops, smartphones, tablets, and many IoT sensors, rely on Wi-Fi to establish their initial network connection. This local wireless link then serves as the gateway to the broader internet and, subsequently, to cloud data centers hosting various services. Reliable and high-performance Wi-Fi connectivity enables seamless interaction with cloud-based Software as a Service (SaaS) applications, access to Infrastructure as a Service (IaaS) virtual machines, and utilization of Platform as a Service (PaaS) offerings. For instance, employees using cloud productivity suites or businesses leveraging cloud storage depend heavily on robust Wi-Fi to maintain productivity. Furthermore, in edge computing architectures, Wi-Fi provides the local network access that allows data processing closer to the source before transmitting relevant information to central cloud platforms for further analysis and long-term storage, highlighting its indispensable role in the cloud ecosystem.
Authoritative Links for Further Research:
IEEE 802.11 (WLANs): https://standards.ieee.org/project/802_11.html Wi-Fi Alliance (What is Wi-Fi?): https://www.wi-fi.org/discover-wi-fi/what-is-wi-fi IEEE 802.3 (Ethernet): https://standards.ieee.org/project/802_3.html

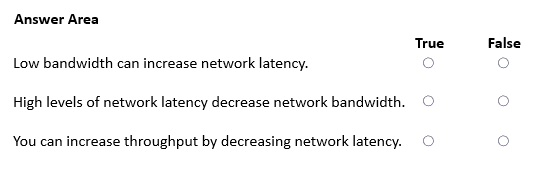

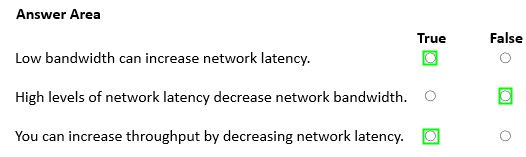

HOTSPOT (Drag and Drop is not supported) For each statement about the output, select True or False.
Note: You will receive partial credit for each correct selection.

  1. See Explanation section for answer.

Answer(s): A

Explanation:

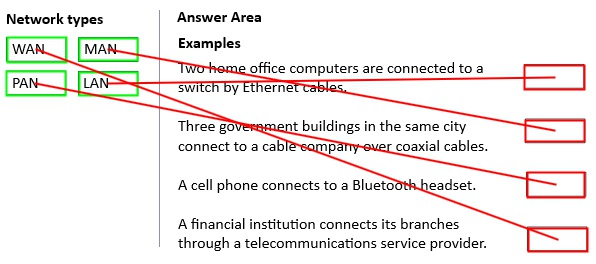

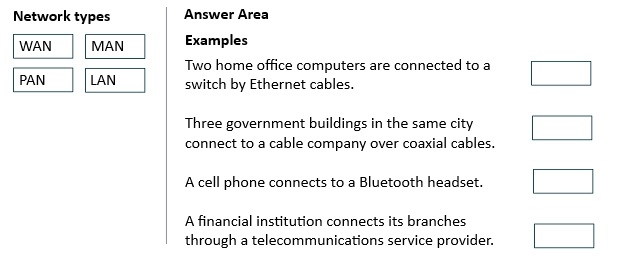

DRAG DROP (Drag and Drop is not supported) Move each network type from the list on the left to the correct example on the right.

  1. See Explanation section for answer.

Answer(s): A

Explanation:

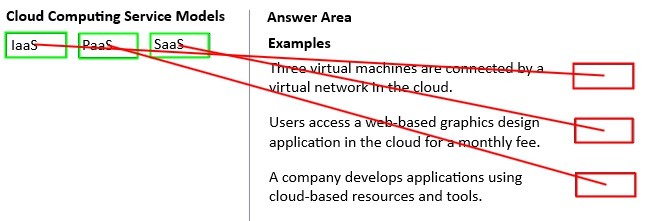

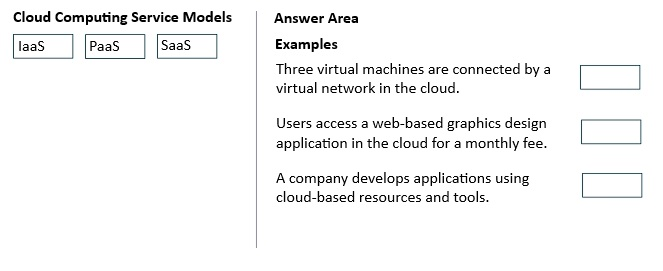

DRAG DROP (Drag and Drop is not supported) Move each cloud computing service model from the list on the left to the correct example on the right.
Note: You will receive partial credit for each correct answer.

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Viewing page 2 of 16
Viewing questions 6 - 10 out of 75 questions
