Free 200-301 Exam Braindumps (page: 2)

Page 1 of 350
PDF with 1395 Questions

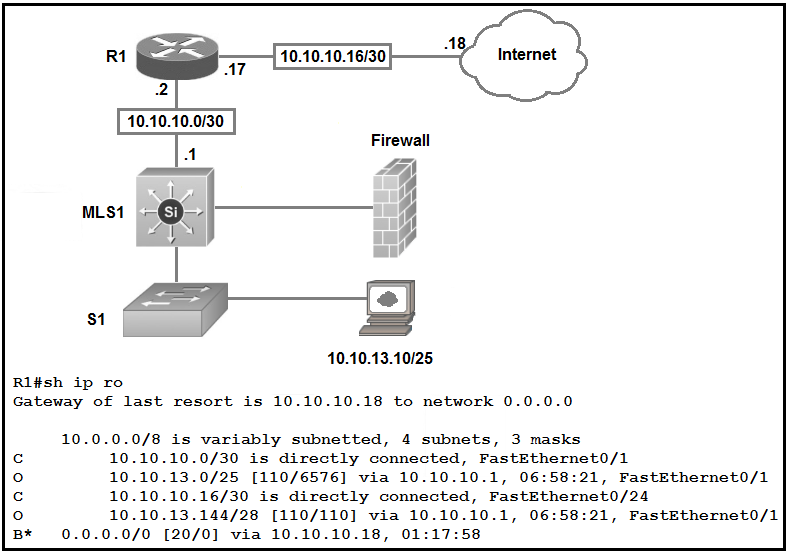

Refer to the exhibit. Which type of route does R1 use to reach host 10.10.13.10/32?

  1. default route
  2. network route
  3. host route
  4. floating static route

Answer(s): B

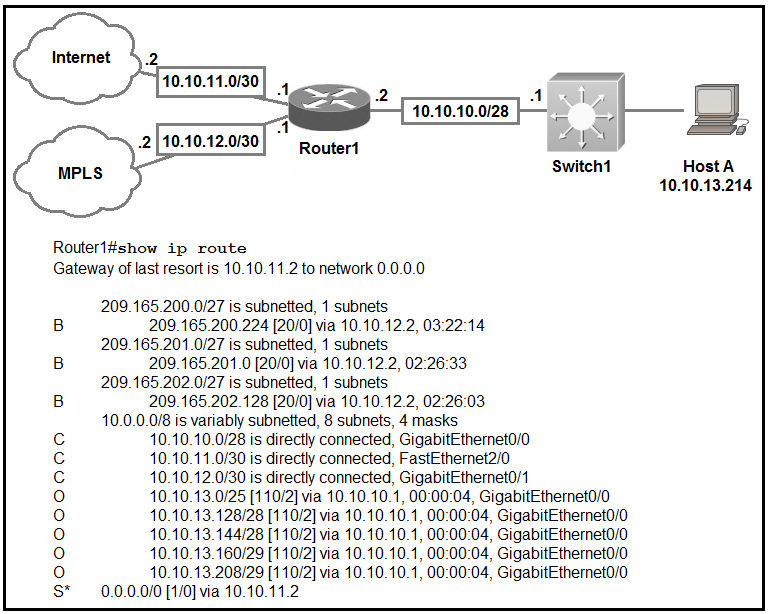

Refer to the exhibit. Which prefix does Router1 use for traffic to Host A?

  1. 10.10.10.0/28
  2. 10.10.13.0/25
  3. 10.10.13.144/28
  4. 10.10.13.208/29

Answer(s): D

Explanation:

The prefix with “longest prefix” will be matched first, in this case is “/29”.



DRAG DROP (Drag and Drop is not supported)

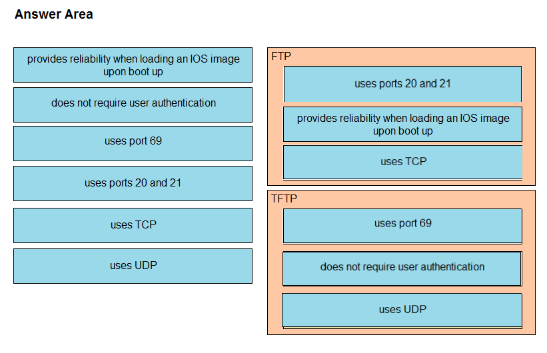

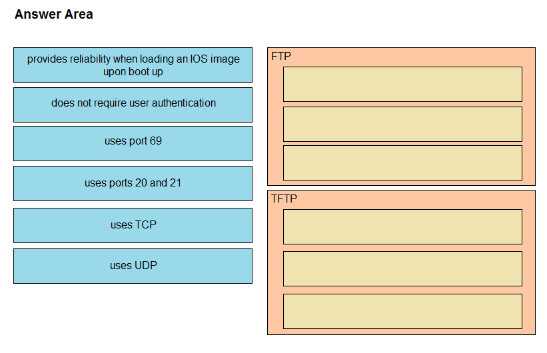

Drag and drop the descriptions of file-transfer protocols from the left onto the correct protocols on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two.)

  1. input errors
  2. frame
  3. giants
  4. CRC
  5. runts

Answer(s): A,D

Explanation:

Whenever the physical transmission has problems, the receiving device might receive a frame whose bits have changed values. These frames do not pass the error detection logic as implemented in the FCS field in the Ethernet trailer. The receiving device discards the frame and counts it as some kind of input error.
Cisco switches list this error as a CRC error. Cyclic redundancy check (CRC) is a term related to how the FCS math detects an error.
The “input errors” includes runts, giants, no buffer, CRC, frame, overrun, and ignored counts.

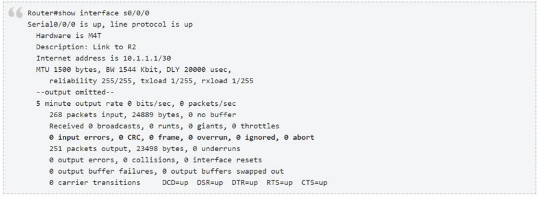

The output below show the interface counters with the “show interface s0/0/0” command:
