What is a function of the metadata carried in SIP sessions between the recording client and the recording server?
Answer(s): D
Refer to the exhibit. An administrator just upgraded to Cisco UCM to version 14 and started SIP implementation with some new SIP trunks. During the testing, an error was reported when making a call. Which action resolves the issue?
Answer(s): A
The SIP response code 404 Not Found indicates that the called number was not found on the destination system -- typically meaning the destination device is not registered, or the dialed number is incorrect or not configured on the remote endpoint.In this log, the INVITE was sent to 10.122.44.183, but the response is 404 Not Found, which means that IPdoesn't recognize or have a match for the called SIP URI or number.To resolve this, verify that the dialed number exists on the remote system and that the corresponding device or trunk is registered and reachable.

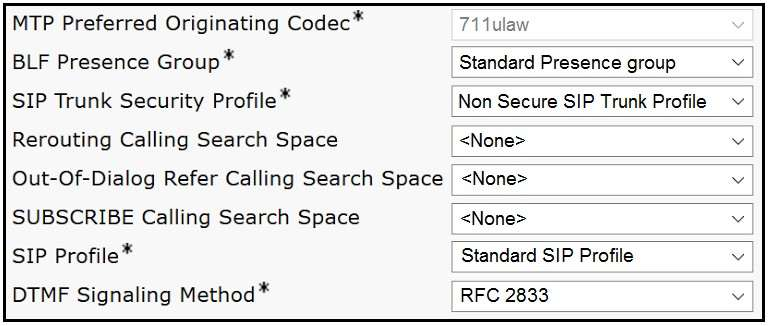

Refer to the exhibit. An administrator just implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily. Which action resolves the issue?
When RFC 2833 is selected as the DTMF method, but the SIP trunk or endpoint does not support it properly, Cisco UCM may invoke an MTP (Media Termination Point) to interwork DTMF signaling. To avoid unnecessary MTP resource usage, it's recommended to use RFC 4733, which is the updated and widely accepted standard for out-of-band DTMF over RTP.Switching to RFC 4733 ensures better compatibility and avoids forcing UCM to insert an MTP, which saves resources and improves call handling efficiency.

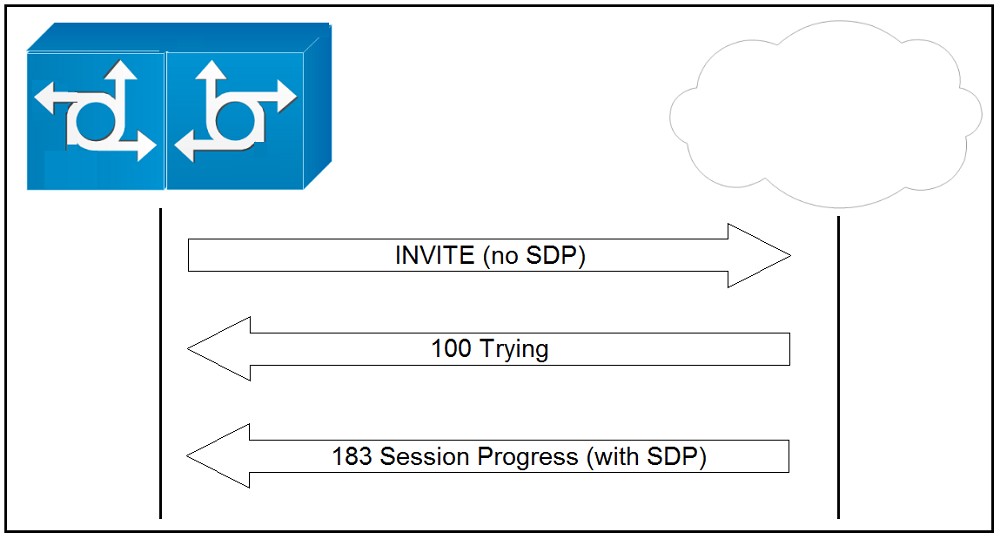

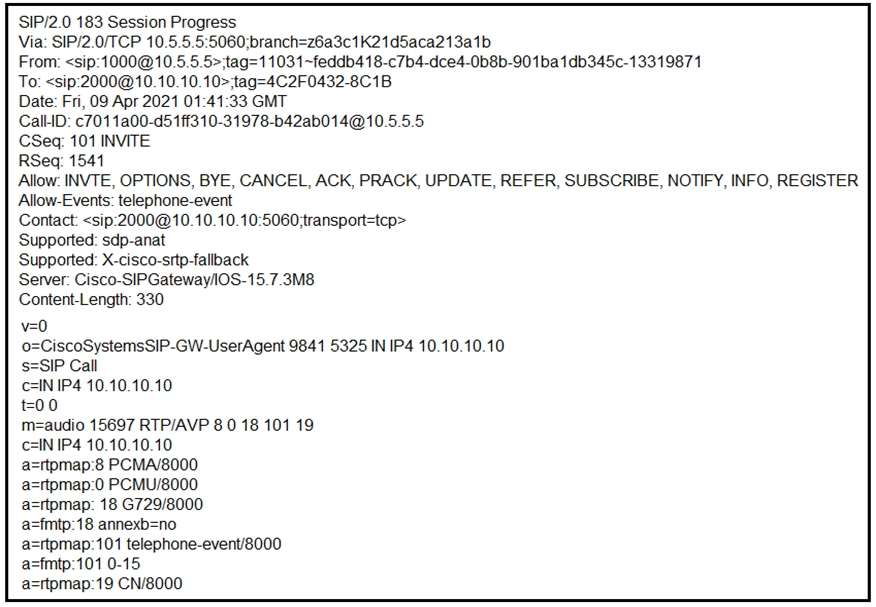

Refer to the exhibit. An administrator received reports that users do not hear a ringback when they dial specific external numbers. For example, the Cisco Unified Border Element receives a delayed offer invite from Cisco UCM and responds with the 183 session progress in the exhibit. Assume that the PSTN is responsible for generating ringback in these problematic scenarios. Which action resolves the issue?
Answer(s): B
Users report strange behaviors when they call external numbers from the company phone system. The company is using Cisco 8865 phones with Cisco UCM connected to a gateway with two TI circuits. There is no indication of the possible problem, but the connection seems to be established. Which command meets the requirement to capture all the data needed to debug the problem?
Answer(s): C
The command debug mgcp media tracelevel critical verbose provides comprehensive media-related debug information for MGCP-controlled gateways, including RTP stream setup, codec negotiation, and media path issues. This level of detail is essential when the call connects but behaves abnormally, as reported. Using the verbose keyword ensures all relevant information is captured for accurate troubleshooting.
