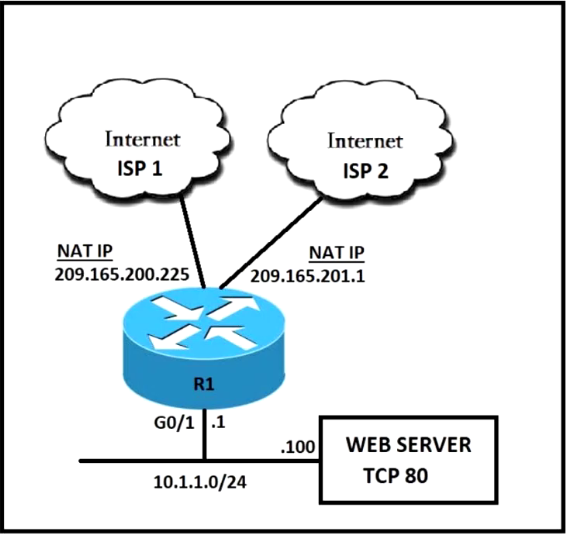

Refer to the exhibit. An engineer must configure static NAT on R1 to allow users HTTP access to the web server on TCP port 80. The web server must be reachable through ISP 1 and ISP 2. Which command set should be applied to R1 to fulfill these requirements?
Answer(s): A

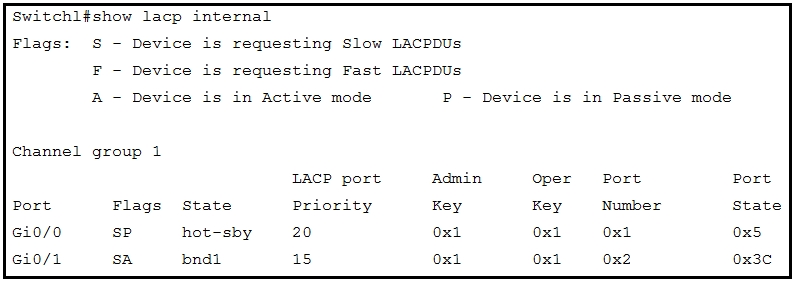

Refer to the exhibit. An engineer attempts to bundle interface Gi0/0 into the port channel, but it does not function as expected. Which action resolves the issue?
Answer(s): B
In a Cisco StackWise Virtual environment, which planes are virtually combined in the common logical switch?
Answer(s): C

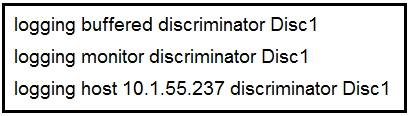

Refer to the exhibit. A network engineer is enabling logging to a local buffer, to the terminal, and to a syslog server for all debugging level logs filtered by facility code 7. Which command is needed to complete this configuration snippet?
Answer(s): D
logging discriminator discr-name [[facility ] [mnemonics ] [msg-body ] {drops string | includes string }] [severity {drops sev-num | includes sev-num }] [rate-limit msglimit ]Example: Device(config)# logging discriminator pacfltr1 facility includes facl357
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/esm/configuration/xe-16-12/esm-xe-16-12-book/reliable-del-filter.html

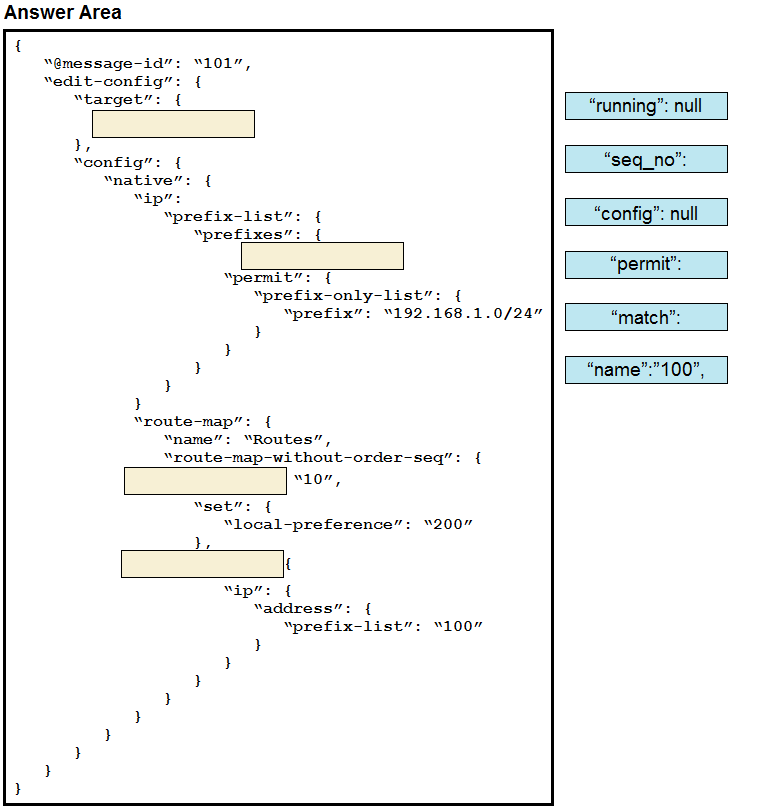

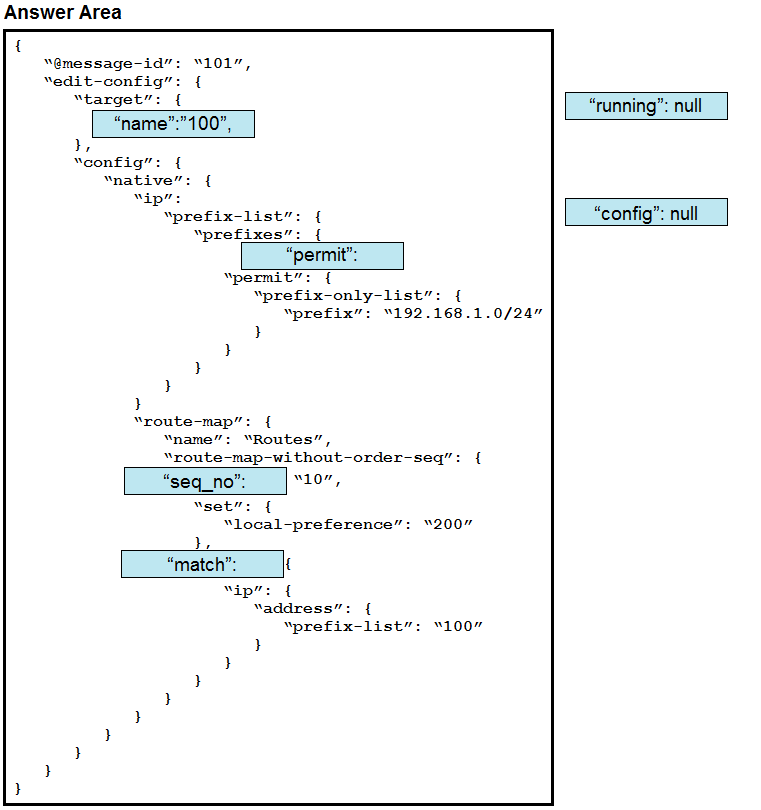

DRAG DROP (Drag and Drop is not supported)Drag and drop the snippets onto the blanks within the code to construct a script that adds a prefix list to a route map and sets the local preference. Not all options are used.Select and Place:
