Free 350-401 Exam braindumps download (350-401 exam dumps Free)

QUESTION: 471

What are two characteristics of VXLAN? (Choose two)

It lacks support for host mobility.
It uses VTEPs to encapsulate and decapsulate frames.
It allows for up to 16 million VXLAN segments.
It extends Layer 2 and Layer 3 overlay networks over a Layer 2 underlay.
It has a 12-bit network identifier.

Answer(s): B,C

QUESTION: 472

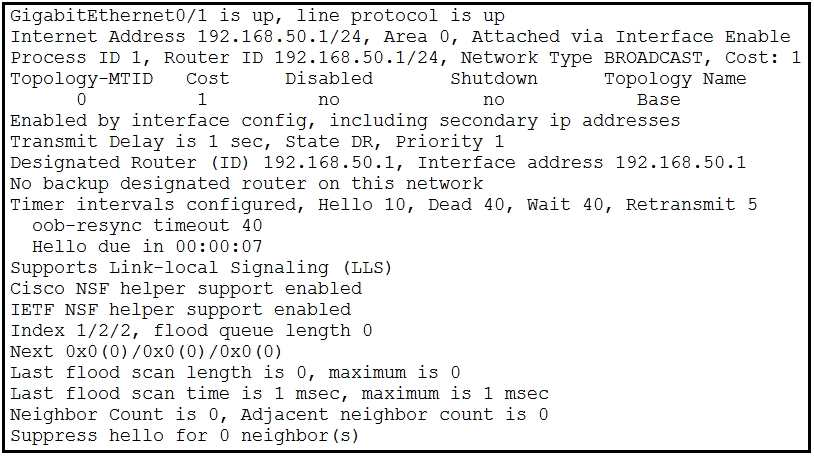

Refer to the exhibit.

An engineer configures OSPF and wants to verify the configuration. Which configuration is applied to this device?

R1(config)#interface Gi0/1 R1(config-if)#ip ospf enable R1(contig-if)#ip ospf network broadcast R1(config-if)#no shutdown
R1(config)#router ospf 1 R1(config-router)#network 0.0.0.0 0.0.0.0 area 0 R1(config-router)#no passive-interface Gi0/1
R1(config)#interface Gi0/1 R1(config-if)#ip ospf 1 area 0 R1(config-if)#no shutdown
R1(config)#router ospf 1 R1(config-router)#network 192.168.50.0 0.0.0.255 area 0

Answer(s): C

Explanation:

cisco_R3#show ip ospf interface ethernet 0/0.50
Ethernet0/0.50 is up, line protocol is up
Internet Address 10.111.10.1/30, Area 22, Attached via Interface Enable <<<<<<<<<<<<<
Process ID 1, Router ID 3.3.3.3, Network Type POINT_TO_POINT, Cost: 10
Topology-MTID Cost Disabled Shutdown Topology Name
0 10 no no Base
Enabled by interface config, including secondary ip addresses
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:00
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 1/1/1, flood queue length 0
Next 0x0(0)/0x0(0)/0x0(0)
Last flood scan length is 5, maximum is 6
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 5.5.5.5
Suppress hello for 0 neighbor(s)
cisco_R3#

Show Answer Next Question

QUESTION: 473

What is the function of a control-plane node in a Cisco SD-Access solution?

to run a mapping system that manages endpoint to network device relationships
to implement policies and communicate with networks outside the fabric
to connect external Layer 3 networks to the SD-Access fabric
to connect APs and wireless endpoints to the SD-Access fabric

Answer(s): A

Show Answer Next Question

QUESTION: 474

What is a characteristic of a Type 2 hypervisor?

It eliminates the need for an underlying operating system.
Problems in the base operating system can affect the entire system.
Its main task is to manage hardware resources between different operating systems.
It is completely independent of the operating system.

Answer(s): B

Reference:

https://careerkaizen.com/vmware-interview-questions/

Show Answer Next Question

QUESTION: 475

What is the purpose of a data modelling language?

to describe the structure and meaning of exchanged data
to standardize the procedures that are executed when parsing sent and received data
to establish a framework to process data by using an object-oriented programming approach
to specify the rules for transcoding between text and binary data encodings

Answer(s): A

Explanation:

Data models can be implemented using numerous data representation and storage formats, including arrays, linked lists, stacks, and graphs (e.g hierarchical trees). The hierarchical tree is very efficient in representing repetitive and hierarchical data and is typically associated with routing or switching platform configurations. Therefore, it is the most common data model format used for networking platforms.

Reference:

https://developer.cisco.com/docs/nx-os/#!the-nature-of-data-models

Show Answer Next Question

Free 350-401 Exam Braindumps Implementing Cisco Enterprise Network Core Technologies (ENCOR) Questions 471–475 (page: 96)
