Free 350-601 Exam Braindumps (page: 17)

Page 16 of 132
PDF with 521 Questions

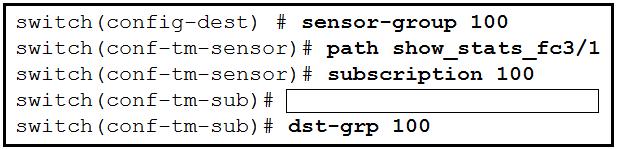

Refer to the exhibit. An engineer needs to implement streaming telemetry on a Cisco MDS 9000 Series Switch. The requirement is for the show command data to be collected every 30 seconds and sent to receivers. Which command must be added to the configuration to meet this requirement?

  1. snsr-grp 200 sample-interval 30000
  2. snsr-grp 200 sample-interval 30
  3. sensor-grp 200 sample-period 30
  4. sensor-grp 200 sample-period 30000

Answer(s): A

Explanation:

Link the sensor group with an ID to the subscription node and set the data streaming sample interval in milliseconds: switch(conf-tm-sub)# snsr-grp id sample-interval interval
Note: The minimum streaming sample interval that is recommended is 30000.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/san_analytics/cisco-mds9000-san-analytics-telemetry-streaming- config-guide-8x/configuring-san-telemetry-streaming.html



An engineer must configure OSPF in the data center. The external routes have already been redistributed into OSPF. The network must meet these criteria:
* The data center servers must reach services in the cloud and the services behind the redistributed routes.
* The exit point toward the Internet should be propagated only when there is a dynamically learned default route from the upstream router.
Which feature is required?

  1. stubby area
  2. totally stubby area
  3. default-information originate
  4. default-information originate always

Answer(s): C

Explanation:

The ג€default-information originateג€ command will not advertise to any other routers without a default route in the routing table. When added the ג€alwaysג€ keyword, it tells the router to advertise a default route to other routers even if you don't have a default route in the routing table.



An engineer must configure a VXLAN routing on a Cisco Nexus 9000 Series Switch. The engineer requires a solution where all the leaf switches have the same gateway MAC and IP addresses. Which configuration set accomplishes this task?

  1. NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# vrf member vrf-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  2. NX9K(config)# install feature-set fabric NX9K(config)# feature-set fabric NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  3. NX9K(config)# install feature-set fabric NX9K(config)# feature-set fabric NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# vrf member vrf-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  4. NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# fabric forwarding mode anycast-gateway

Answer(s): A

Explanation:

- Enable VxLAN with distributed anycast-gateway using BGP EVPN fabric forwarding anycast-gateway-mac 0000.2222.3333
- Create server facing SVI and enable distributed anycast-gateway interface Vlan1001 no shutdown vrf member vxlan-900001 ip address 4.1.1.1/24 ipv6 address 4:1:0:1::1/64 fabric forwarding mode anycast-gateway


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX-
OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_0100.html



An engineer implements an ACI fabric and must implement microsegmentation of endpoints within the same IP subnet using a network-based attribute. The attribute mapping must allow IP subnet independence. Which attribute must be selected?

  1. IP
  2. tag
  3. custom
  4. MAC address

Answer(s): D

Explanation:

If you want to use a network-based attribute and classify IP addresses in the same subnet, you must use the MAC-based network attribute. IP-based microsegmented EPGs do not support classification for IP addresses in the same subnet. IP-based microsegmented EPGs are supported only when traffic requires Layer 3 routing. If the traffic is bridged, the microsegmentation policy cannot be enforced.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/3-
