Free 350-601 Exam Braindumps (page: 57)

Page 56 of 132
PDF with 521 Questions

Which feature must be enabled to support the use of JSON and XML encodings when a Cisco Nexus 7000 Series Switch is deployed?

  1. Bash shell
  2. NX-API
  3. Open Agent Container
  4. LLDP

Answer(s): B

Explanation:

On Cisco Nexus devices, command-line interfaces (CLIs) are run only on the device. NX-API improves the accessibility of these CLIs by making them available outside of the switch by using HTTP/HTTPS. You can use this extension to the existing Cisco Nexus CLI system on the Cisco Nexus 7000 Series devices. NX-API supports show commands, and configurations. NX-API supports JSON-RPC, JSON, and XML formats.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus7000/sw/programmability/guide/b_Cisco_Nexus_7000_Series_NX-
OS_Programmability_Guide/b_Cisco_Nexus_7000_Series_NX-OS_Programmability_Guide_chapter_0101.html



An engineer needs a utility to translate traditional Nexus CLI inputs and generate Python code using XML and JSON message formats. The solution needs to be available on a Nexus 7700 series switch. Which utility should be used?

  1. NX-API Sandbox
  2. NX-OS JSON-RPC
  3. Guest Shell for NX-OS
  4. Open NX-OS

Answer(s): A


Reference:

https://developer.cisco.com/docs/nx-os/#!nx-api-cli-developer-sandbox



An engineer must use the python module in the guest shell of the Cisco Nexus 9000 Series switch to shutdown port Ethernet 1/4. Which command set will accomplish this?

  1. from cli import * cli(''conf t'') cli(''interface eth1/4'') cli(''shutdown'')
  2. from cisco import cli cli(''conf t'' ; ''interface eth1/4'' ; ''shutג€)
  3. from cli import * cli(''conf t ; interface eth1/4 ; shut'')
  4. from cisco import cli cli(''conf t ; interface eth1/4") cli(''shutdown'')

Answer(s): C


Reference:

https://www.ciscolive.com/c/dam/r/ciscolive/apjc/docs/2016/pdf/DEVNET-1077.pdf



DRAG DROP (Drag and Drop is not supported)

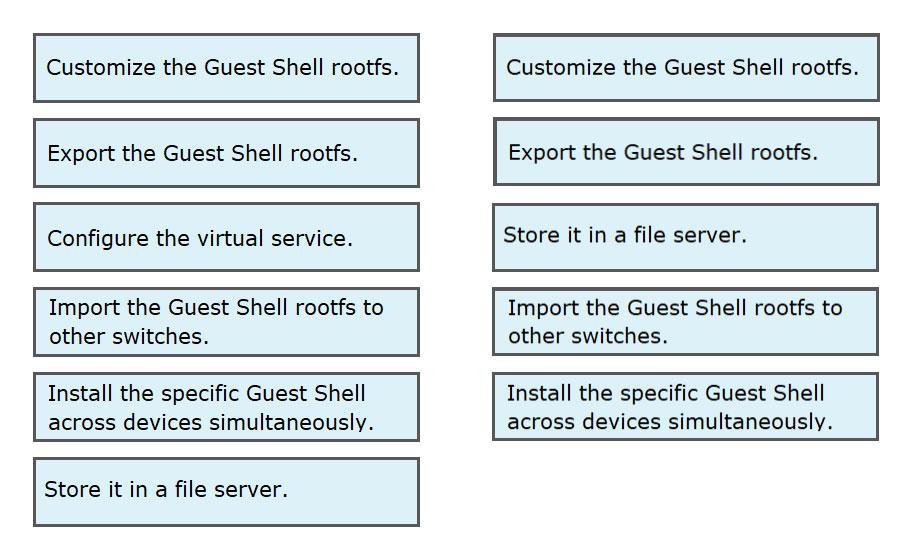

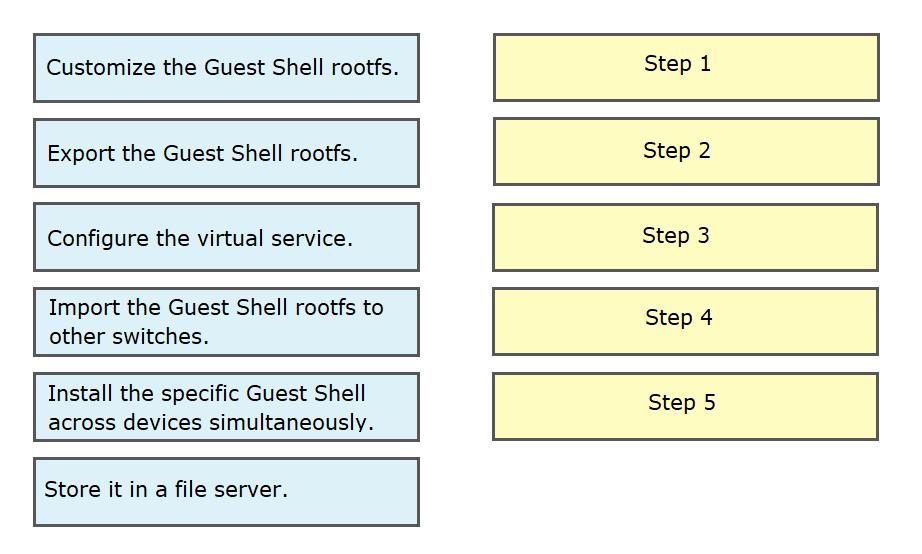

An engineer deploys a custom Guest Shell rootfs on a Nexus 9000 Series Switch. Drag and drop the steps from the left into the order required to deploy the solution on the right. Not all options are used.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX-
OS_Programmability_Guide_7x/Guest_Shell.html
https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2018/pdf/BRKDCN-2015.pdf
