Free 350-801 Exam Braindumps
Implementing Cisco Collaboration Core Technologies (CLCOR) Questions 156–160 (page: 33)

Updated On: 10-Feb-2026
Page 33 of 86
PDF with 489 Questions

An administrator needs to strip the leading 9 from outbound calls on an IOS Voice Gateway, and ensure that the system handles 911 emergency calls.
Which configuration is needed to accomplish this task?





Answer(s): D



An engineer must configure a Cisco ISR 4000 as an MGCP gateway to download its MGCP-specific configuration from Cisco UCM.
Which Cisco IOS configuration snippet accomplishes this task?

  1. ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1 ISR4K(config)# mgcp call-agent 10.1.2.3 2428 service-type mgcp version 0.1 ISR4K(config)# ccm-manager config server 10.1.2.3
    ISR4K(config)# ccm-manager config
    ISR4K(config)# ccm-manager mgcp
    ISR4K(config)# mgcp
  2. ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1 ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 0.1 ISR4K(config)# ccm-manager config server 10.1.2.3
    ISR4K(config)# ccm-manager config download
    ISR4K(config)# ccm-manager mgcp
    ISR4K(config)# mgcp
  3. ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1 ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 11.5.1 ISR4K(config)# ccm-manager config server 10.1.2.3
    ISR4K(config)# ccm-manager config
    ISR4K(config)# ccm-manager mgcp
    ISR4K(config)# mgcp
  4. ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1 ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 0.1 ISR4K(config)# ccm-manager config server 10.1.2.3
    ISR4K(config)# ccm-manager config
    ISR4K(config)# ccm-manager mgcp
    ISR4K(config)# mgcp

Answer(s): D



An engineer must manually register an analog port with Cisco UCM using the MGCP protocol.
Which commands are required?

  1. no mgcp mgcp call-agent 172.16.1.252
    ccm-manager config server 172.16.1.252
    ccm-manager config ccm-manager mgcp
    !
    dial-peer voice 1 pots port 1/0/0
    shut no shut
    !
  2. mgcp mgcp call-agent 172.16.1.252
    ccm-manager config server 172.16.1.252
    ccm-manager config ccm-manager mgcp
    !
    dial-peer voice 1 pots port 1/0/0
    shut no shut
    !
  3. mgcp ccm-manager config server 172.16.1.252
    ccm-manager config
    !
    dial-peer voice 1 pots application MGCPAPP
    port 1/0/0
    !
  4. mgcp mgcp call-agent 172.16.1.252
    ccm-manager config server 172.16.1.252
    ccm-manager config ccm-manager mgcp
    !
    dial-peer voice 1 pots application MGCPAPP
    port 1/0/0
    shut no shut
    !

Answer(s): D

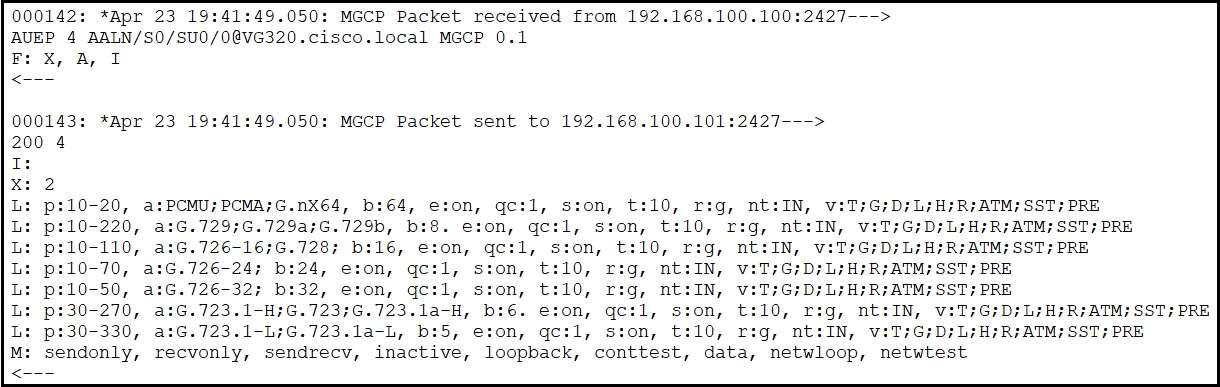

Refer to the exhibit.



What is the registration state of the analog port in this debug output?

  1. The analog port is currently shut down.
  2. The analog port is registered to Cisco UCM.
  3. The MGCP Gateway is not communicating with the Cisco UCM.
  4. The analog port failed to register to Cisco UCM with an error code 200.

Answer(s): B



An administrator needs to create a partial PRI consisting of the first seven timeslots available.
Which configuration snippet configures the ISDN E1 PRI for this task?

  1. config t
    2900(config)#isdn switch-type primary-ni
    2900(config)#pri-group timeslots 1-7
  2. config t
    2900(config)#isdn switch-type primary-ni
    2900(config)#controller e1 0/0/0
    2900(config-controller)#pri-group timeslots 1-7
  3. config t
    2900(config)#isdn switch-type primary-ni
    2900(config)#interface Serial0/0/0:15
    2900(config-controller)#pri-group timeslots 1-7
  4. config t
    2900(config)#isdn switch-type primary-ni
    2900(config)#controller e1 0/0/0
    2900(config-controller)#pri-timeslots 1-7

Answer(s): B



  PDF
Viewing page 33 of 86
Viewing questions 161 - 165 out of 489 questions
