Free CompTIA 220-1201 Exam Questions (page: 2)

Page 2 of 36
PDF with 221 Questions

SIMULATION
A customer recently experienced a power outage at a SOHO. The customer does not think the components are connected properly. A print job continued running for several minutes after the power failed, but the customer was not able to interact with the computer.
Once the UPS stopped beeping, all functioning devices also turned off.
In case of a future power failure, the customer wants to have the most time available to save cloud documents and shut down the computer without losing any data.
INSTRUCTIONS

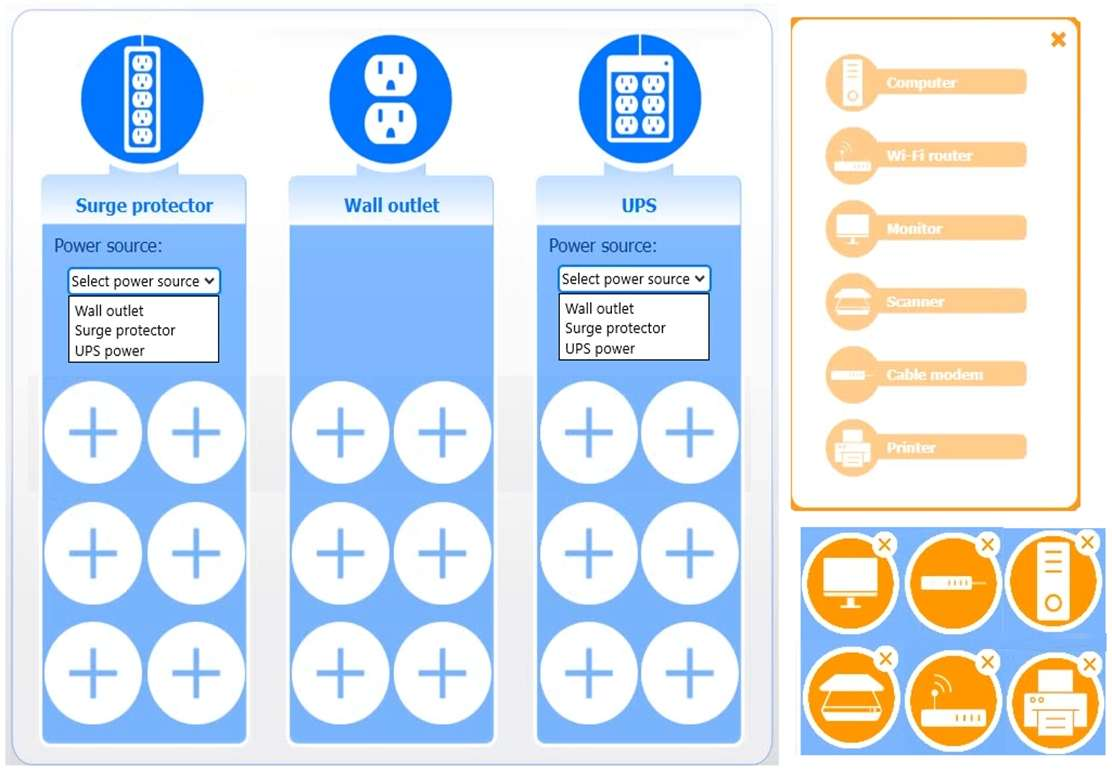

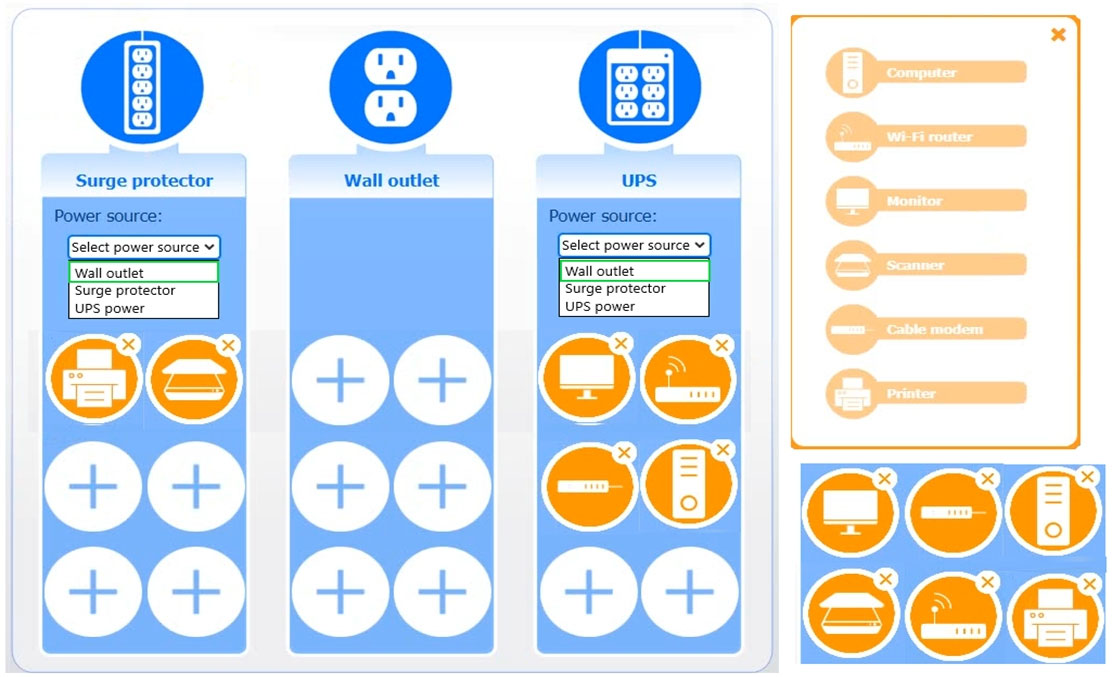

Based on the customer's requirements, connect the customer's devices to the proper outlets. Then, use the drop-down menus to select the power source for the surge protector and UPS.
This may require reselecting dropdowns or removing devices from their initial location.
Click on the + to add a device, and click the X to remove a device. Each device may only be used once.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

  1. See Explanation section for answer.

Answer(s): A

Explanation:



SIMULATION
A user reports poor performance on the application server. INSTRUCTIONS

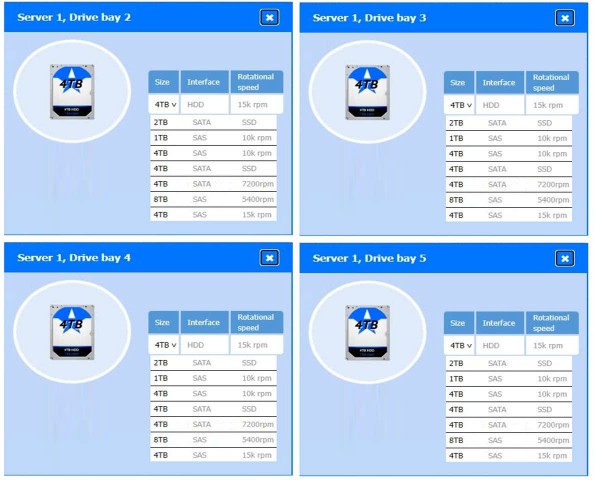

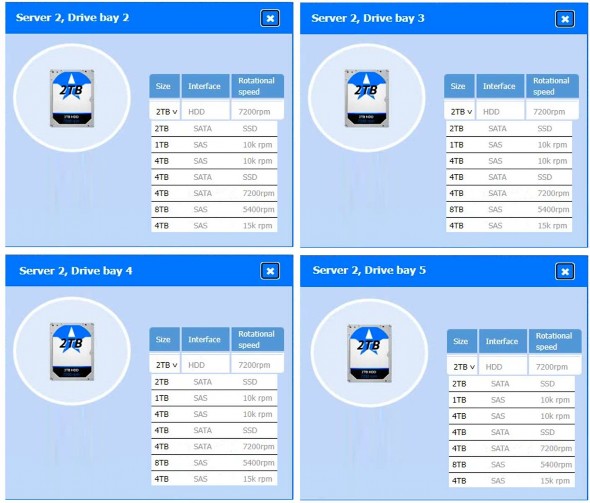

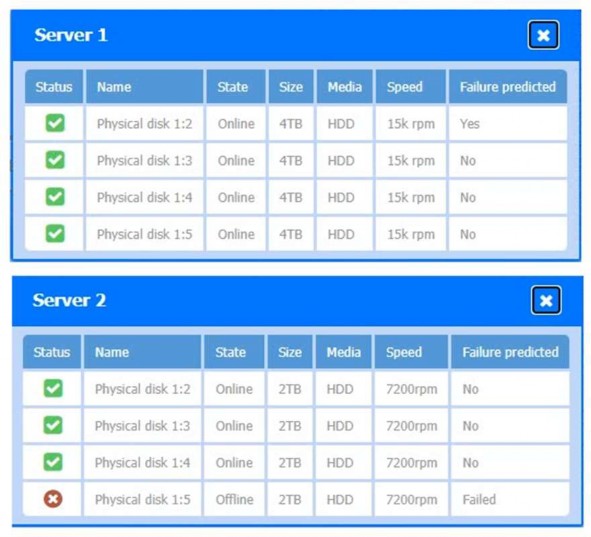

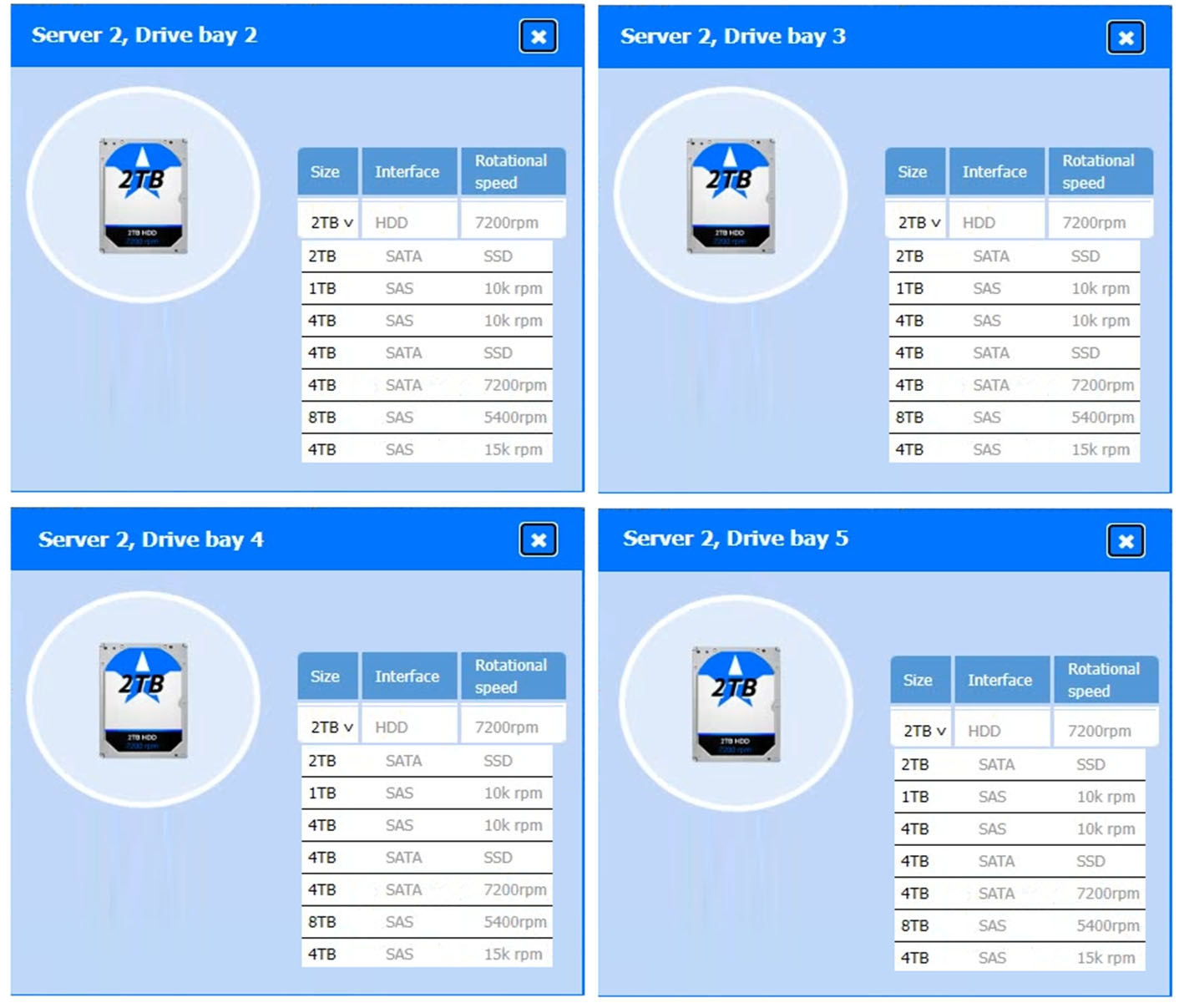

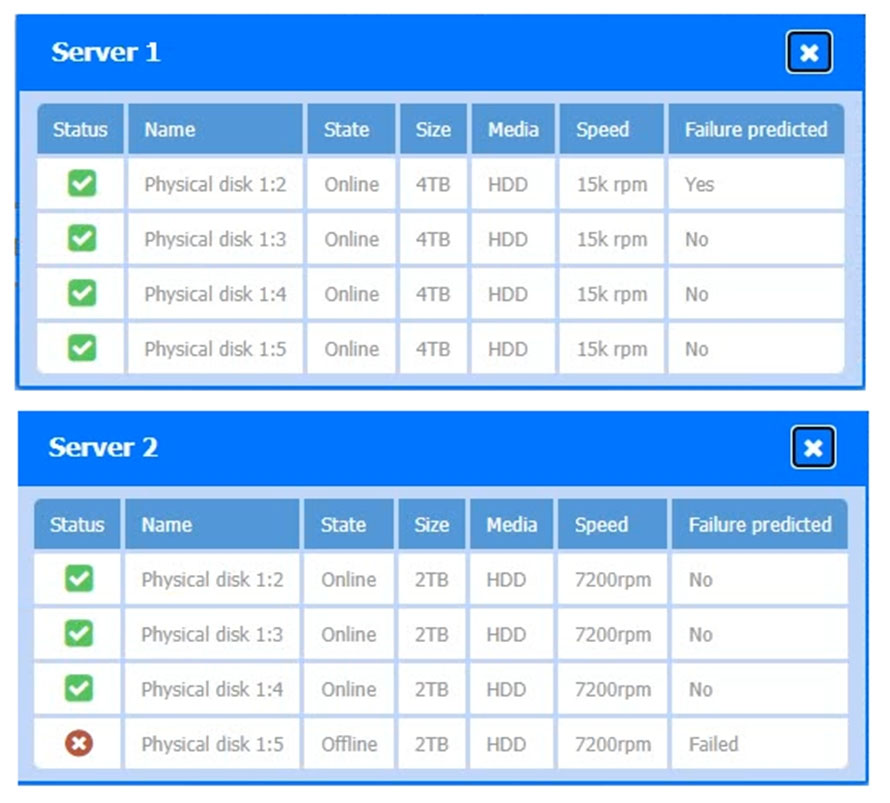

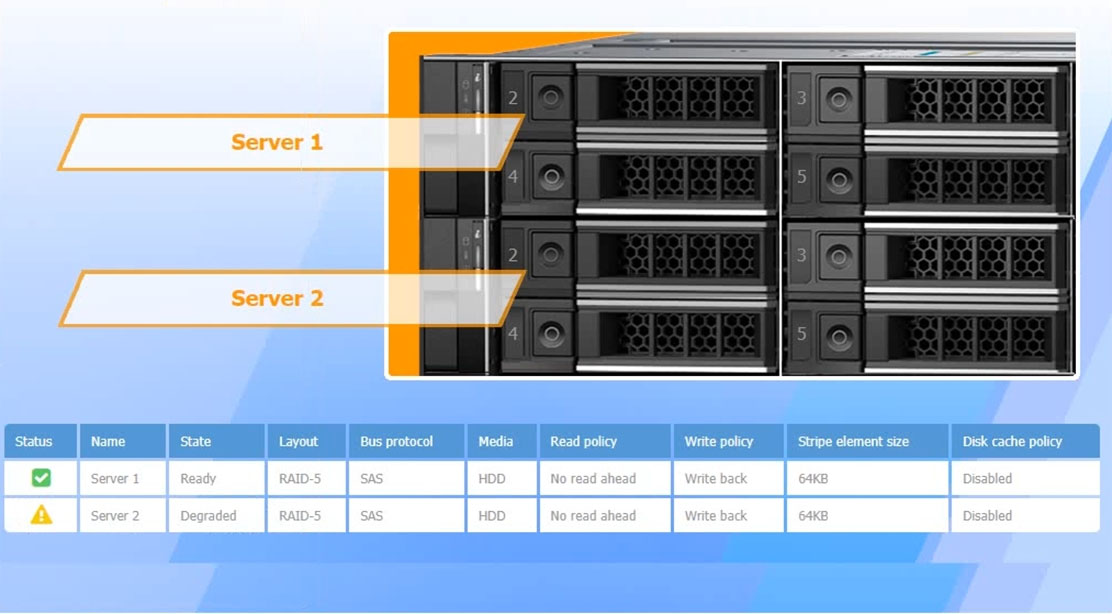

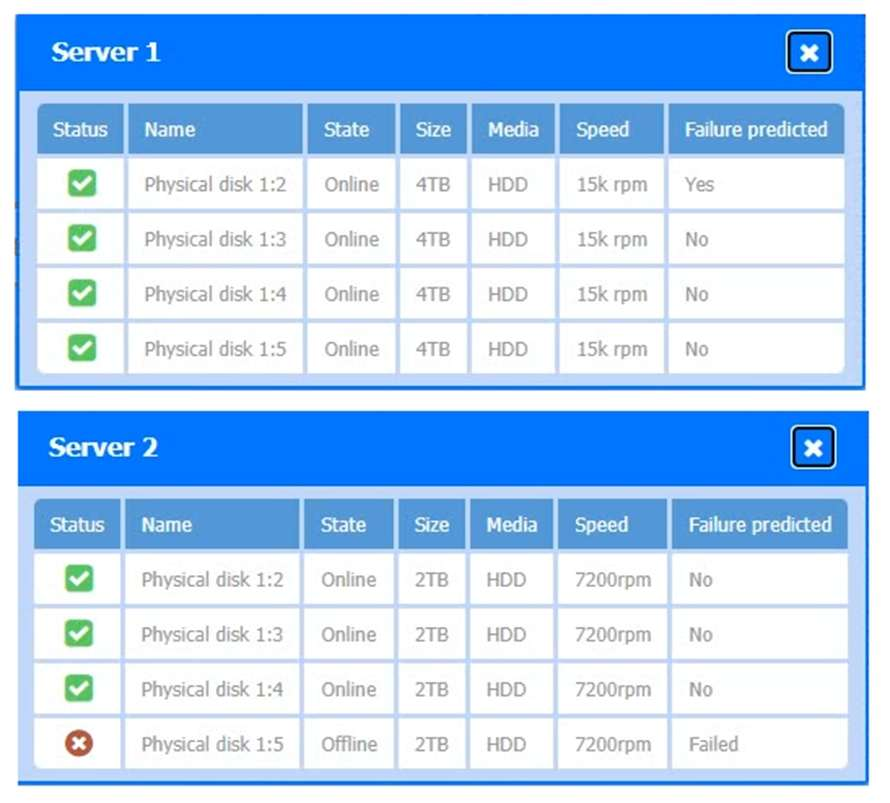

Click on Server 1 and Server 2 and review the information presented in each chart to determine which drives need to be replaced.

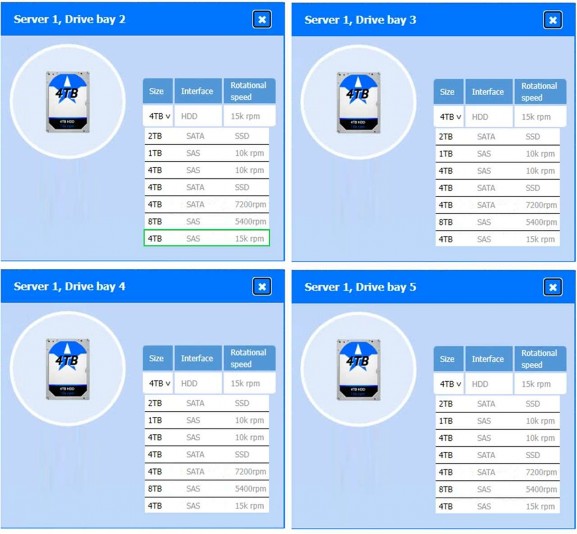

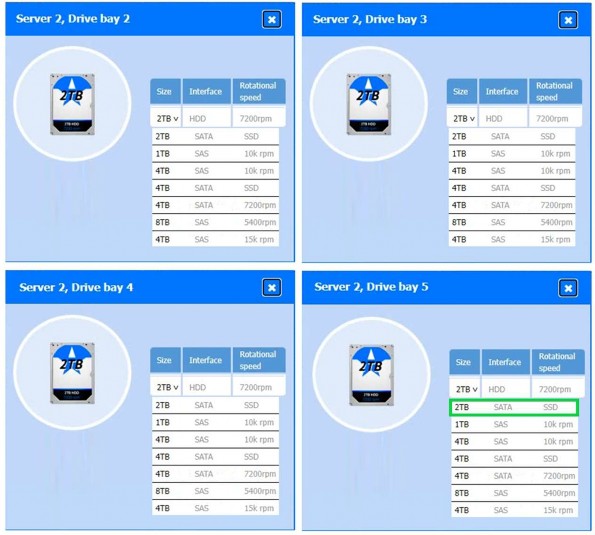

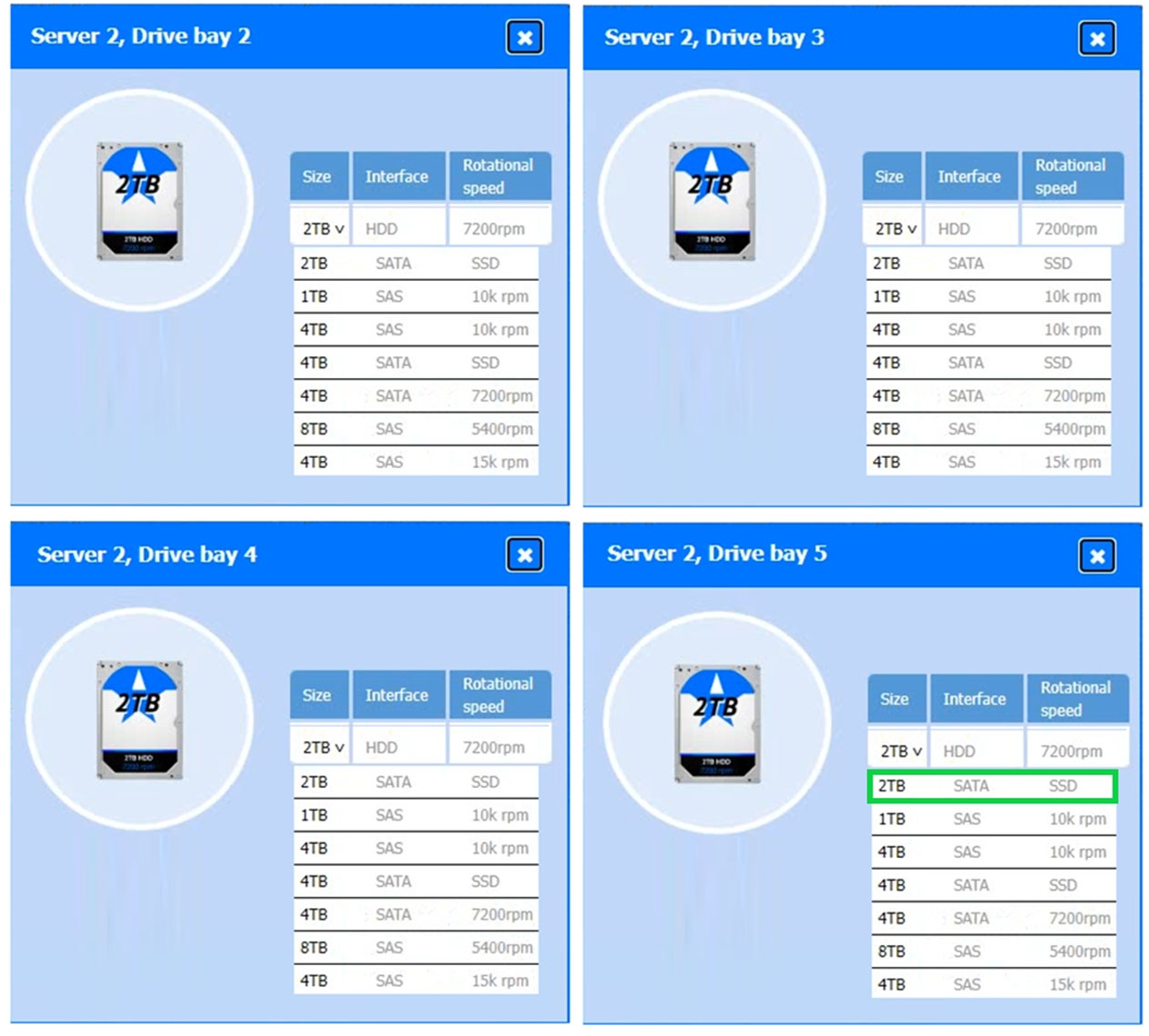

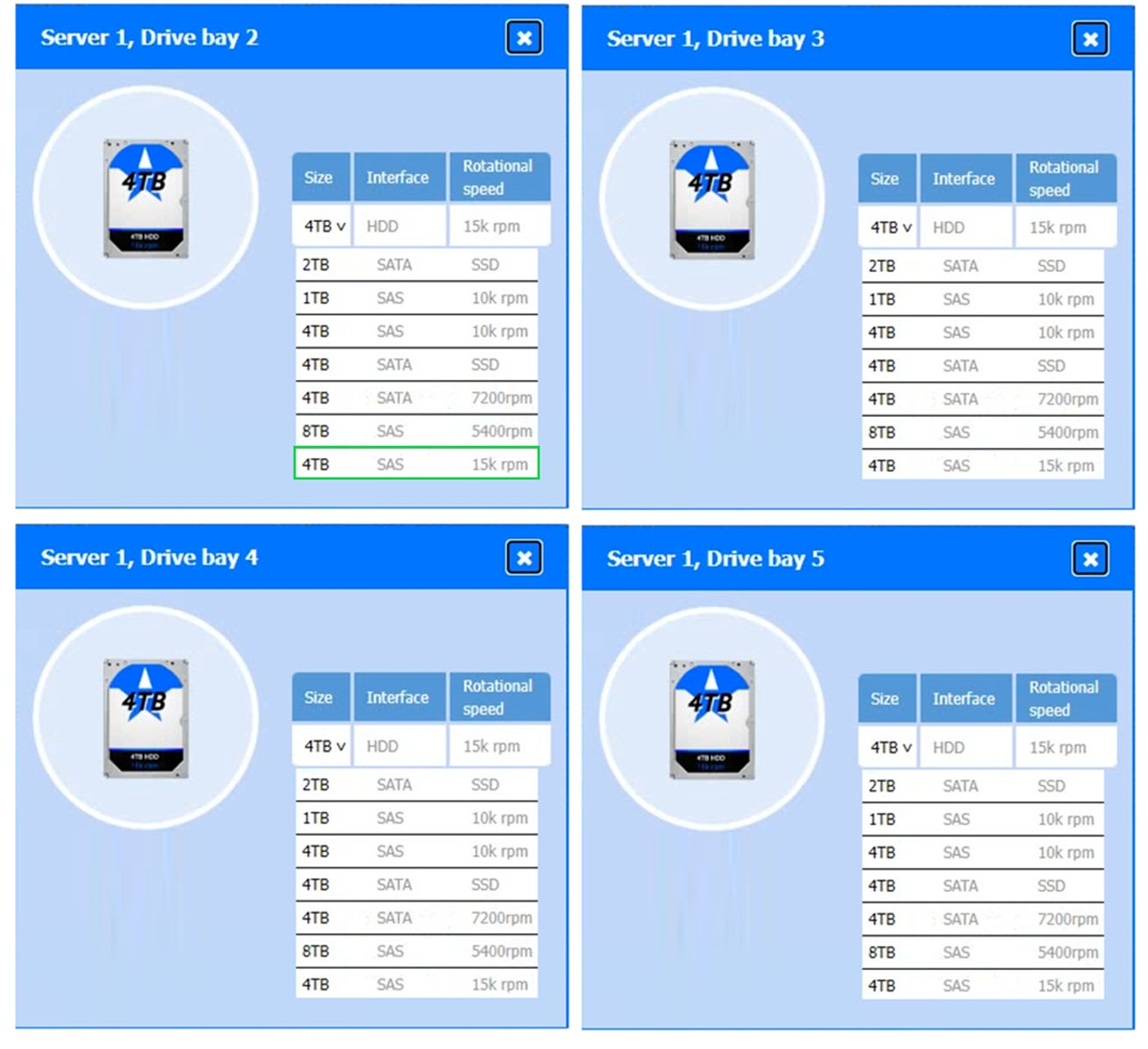

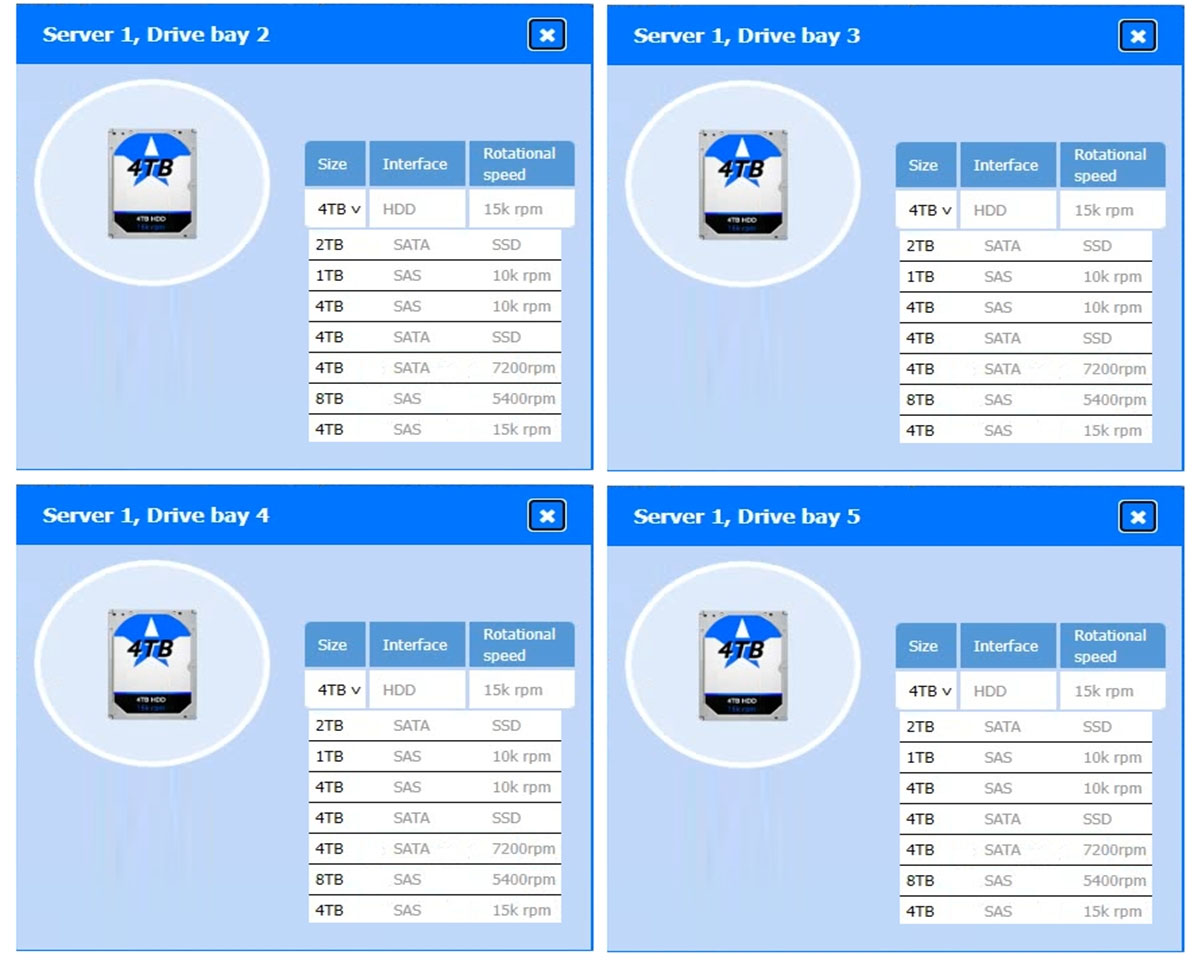

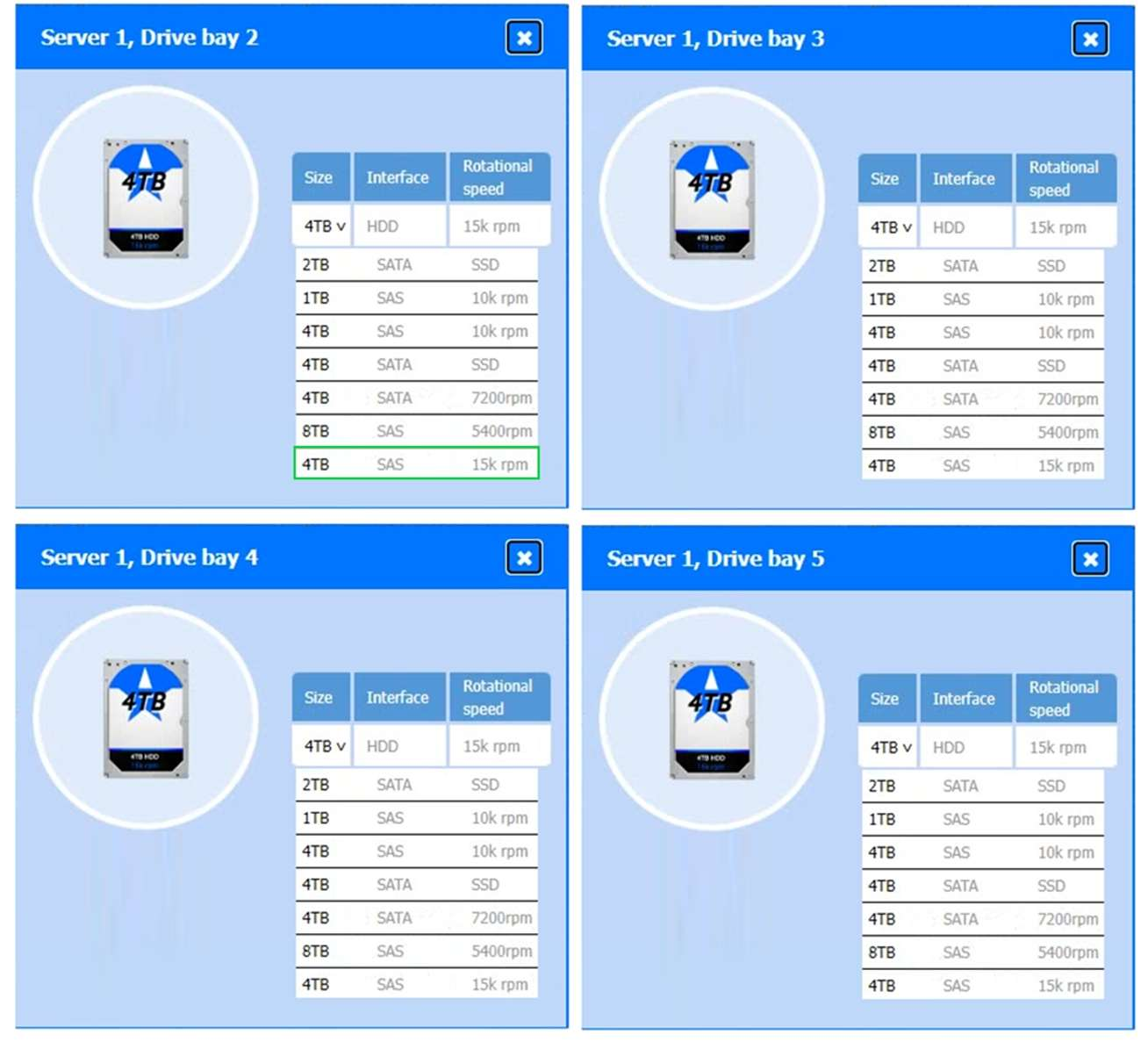

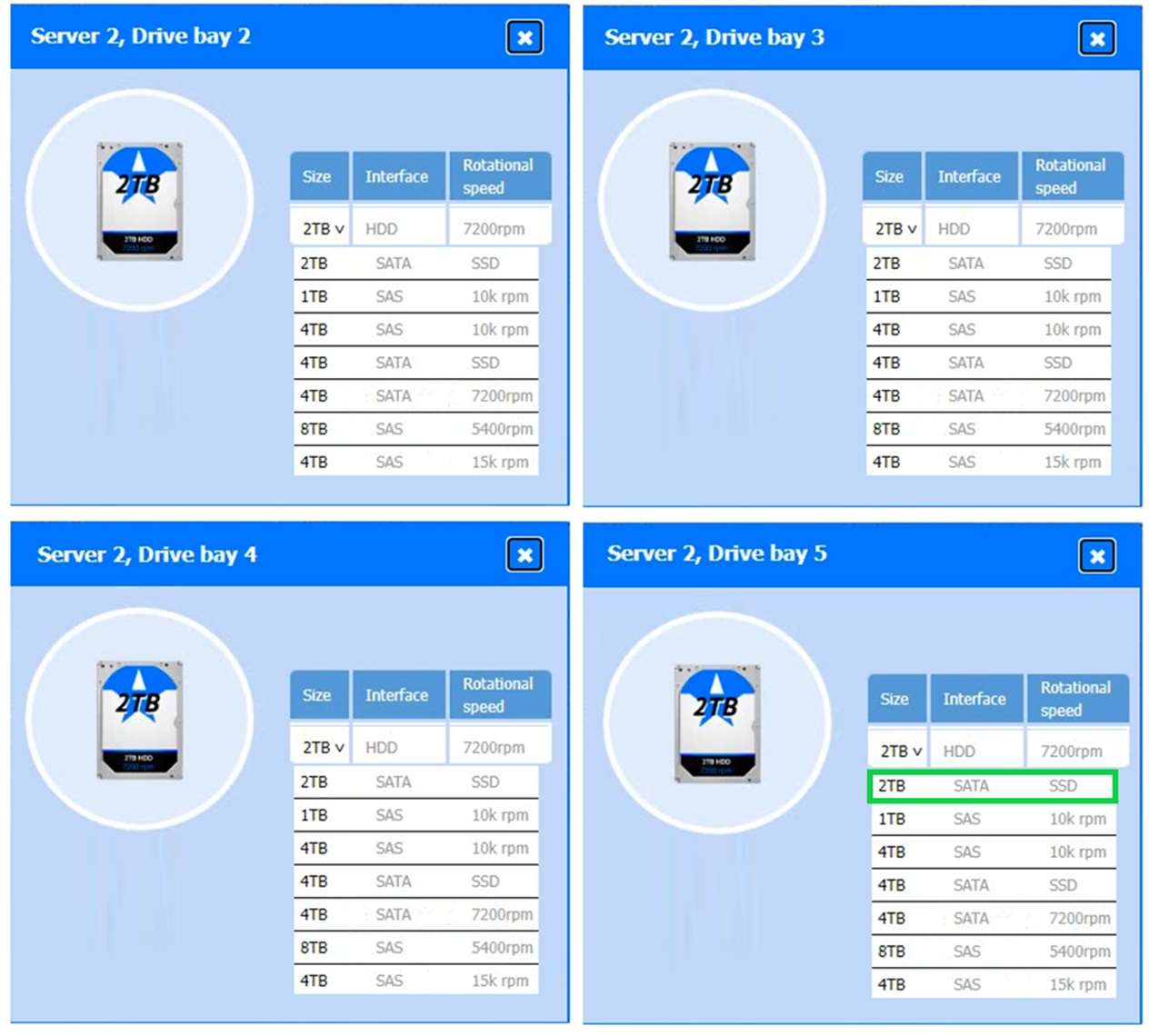

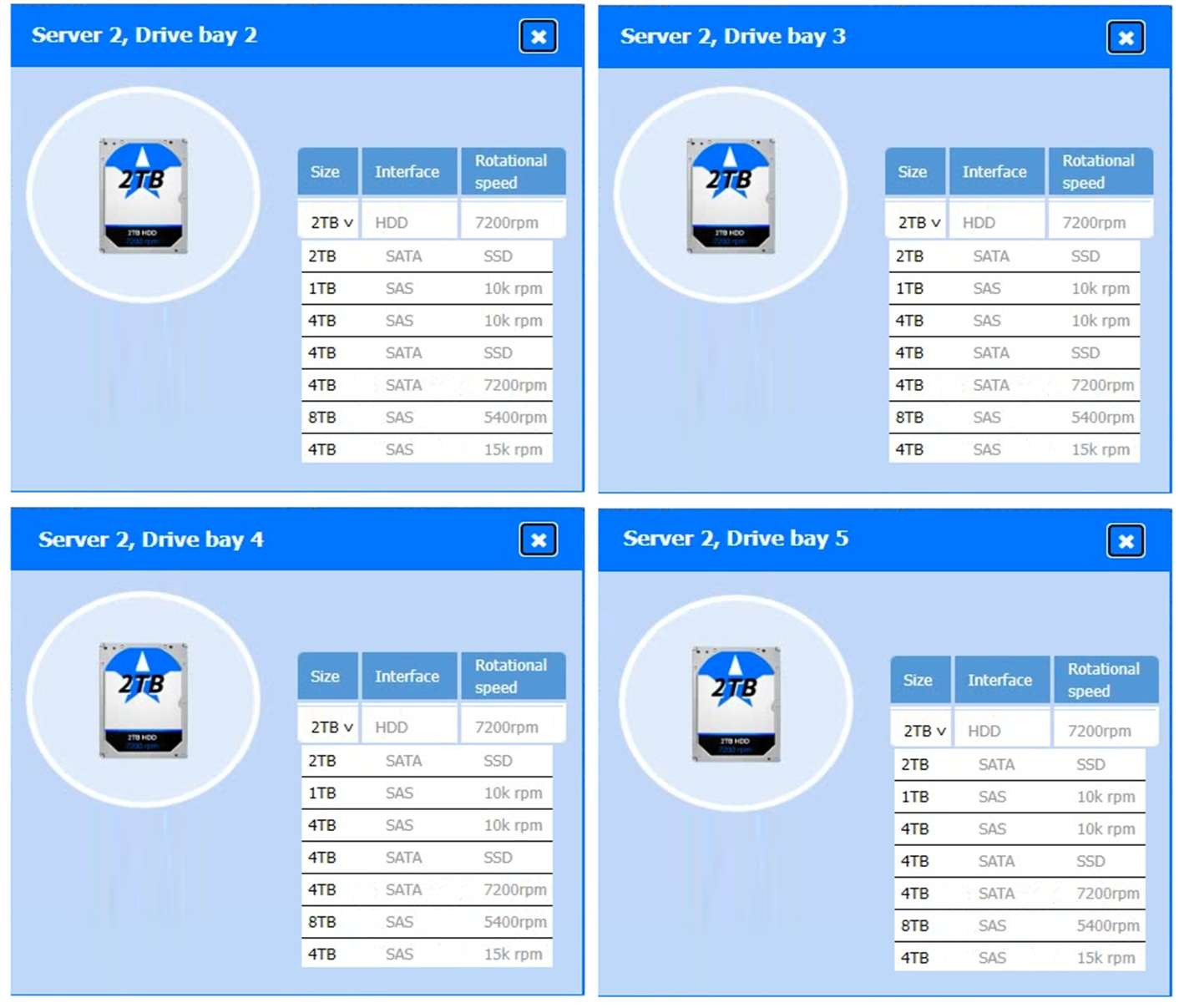

Select the appropriate replacement drive that should be used, for the least performance degradation to the server.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.






  1. See Explanation section for answer.

Answer(s): A

Explanation:





A technician is troubleshooting an all-in-one laser printer that prints a vertical line when making copies and scans. When users print or receive faxes, the output from the printer is correct. Which of the following should the technician examine to determine the cause of the issue?

  1. The pickup rollers
  2. The corona wire
  3. The document feeder
  4. The drum assembly

Answer(s): C

Explanation:

A scratch or debris on the feeder’s glass or its rollers will show up as a vertical line on any copy/scan, while outgoing prints (which use the drum and toner path) remain unaffected.



Which of the following is an advantage of using a hybrid cloud instead of a public cloud?

  1. Ability to reduce management overhead
  2. Ability to use cross-platform virtualization
  3. Ability to meet data residency requirements
  4. Ability to leverage IaaS and PaaS

Answer(s): C

Explanation:

A hybrid cloud lets organizations keep sensitive or regulated data on-premises (or in a specific geographic location) while still leveraging public cloud resources, ensuring compliance with data residency laws that a pure public cloud model alone might not satisfy.



A technician is troubleshooting a desktop PC that is plugged into a UPS. The PC loses the system date/time after every power outage. Which of the following should the technician do to resolve the issue? (Choose two.)

  1. Run a BIOS update.
  2. Swap out the RAM.
  3. Disable NTP in the OS.
  4. Repair the backup power source.
  5. Replace the CMOS battery.
  6. Install a surge protector.

Answer(s): D,E

Explanation:

Repair the backup power source. Ensuring the UPS actually holds power through outages prevents the PC from abruptly losing all power, which contributes to time resets.
Replace the CMOS battery. A fresh CMOS battery maintains the BIOS clock when the system is shut down or loses power.



Viewing page 2 of 36
Viewing questions 6 - 10 out of 221 questions
