Free DES-5121 Exam Braindumps (page: 3)

Page 2 of 17

A user’s host with an IP address of 172.16.1.22/24 is attempting to FTP a file from the server with IP address 10.1.1.99; however, they are unable to connect. Which access-list is preventing this traffic?


  1. # ip access-list ACL1
    # deny ip any host 10.1.1.99

  2. # ip access-list ACL2
    # permit ip 172.16.1.0 0.0.0.255 any

  3. # ip access-list ACL3
    # deny ip any 172.16.2.0 0.0.0.255

  4. # ip access-list ACL4
    # permit ip host 172.16.1.22 host 10.1.1.99

Answer(s): A



When setting up VoIP, you decide that you want to use LLDP. LLDP is enabled by default and LLDP Transmit Management Information and Notification modes are enabled. What additional steps need to be performed?

  1. Enable ISDP and enable LLDP-MED confignotification
  2. Disable ISDP and enable LLDP-MED confignotification
  3. Enable ISDP and disable LLDP-MED confignotification
  4. Disable ISDP and disable LLDP-MED confignotification

Answer(s): B

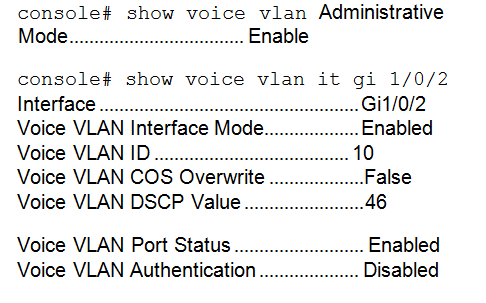

After setting up the VoIP configuration, a network administrator issues the following commands with the results shown:

Based on this information, what is the Layer 3 QoS value?

  1. 5
  2. 10
  3. 46
  4. Gi1/0/2

Answer(s): C



What is the IP protocol number, in decimal, assigned by IANA for VRRP?

  1. 25
  2. 112
  3. 443
  4. 1443

Answer(s): B
