A BIG-IP system receives UDP traffic from a specific source. The administrator wants the traffic to be forwarded, not dropped or rejected. Which virtual server type should be used? (Choose one answer)
Answer(s): D
BIG-IP virtual server types define how traffic is handled at the data plane when it matches a virtual server’s destination address and service port.According to BIG-IP Administration Data Plane Concepts:Standard virtual serverThe default and most commonly used typeAccepts client connections and forwards traffic to pool membersSupports both TCP and UDP trafficAllows full use of profiles (UDP, FastL4, persistence, etc.) and iRulesRequired when the goal is to process and pass traffic through BIG-IPDrop virtual serverSilently discards matching trafficNo response is sent to the clientReject virtual serverActively rejects traffic by sending an error responseFor UDP, BIG-IP may send an ICMP unreachable messageBlock virtual serverUsed to block traffic at the virtual server levelTraffic is neither forwarded nor processed by poolsIn this scenario:The administrator explicitly wants the UDP traffic to be forwardedOnly a Standard virtual server forwards traffic to a pool or next-hop destinationWhy the Other Options Are Incorrect:A . Drop – Traffic is silently discardedB . Reject – Traffic is actively rejectedC . Block – Traffic is blocked and not forwardedKey Data Plane Concept Reinforced:When traffic must be accepted and forwarded—regardless of whether it is TCP or UDP—the BIG-IP administrator must use a Standard virtual server, which is the only virtual server type designed for normal application traffic processing.
A BIG-IP system receives a client connection destined to 1.0.0.10:8080. Multiple virtual servers are configured on the system. Which virtual server will process the connection? (Choose one answer)
Answer(s): C
BIG-IP uses a virtual server matching and precedence algorithm to determine which virtual server processes an incoming connection. This decision is made entirely in the data plane and is based on how specifically a virtual server matches the destination IP address and port.BIG-IP Virtual Server Selection Rules (Simplified):When multiple virtual servers could match a packet, BIG-IP selects the most specific match, using the following precedence:Exact IP address and exact portExact IP address with wildcard port (port 0 / any)Wildcard IP address with exact portWildcard IP address and wildcard portApplying the Rules to This Scenario:Incoming traffic destination: 1.0.0.10:8080Option C: 1.0.0.10:8080Exact IP matchExact port matchHighest possible specificityIf the virtual server is available (green), it wins the matchOption B: 1.0.0.10:anyExact IP match, but wildcard portLower priority than an exact IP + exact port matchOption D: 0.0.0.0:8080Wildcard IP, exact portLower priority than an exact IP matchOption A: 0.0.0.0:anyWildcard IP and wildcard portLowest priority, used only if no more specific virtual server existsFinal Determination:Because a virtual server configured with destination 1.0.0.10:8080 exactly matches both the IP address and port of the incoming connection—and is available—it will always be selected to process the traffic.Key Data Plane Concept Reinforced:BIG-IP always processes traffic using the most specific matching virtual server. Exact destination IP and port matches take precedence over any wildcard or forwarding virtual server definitions.

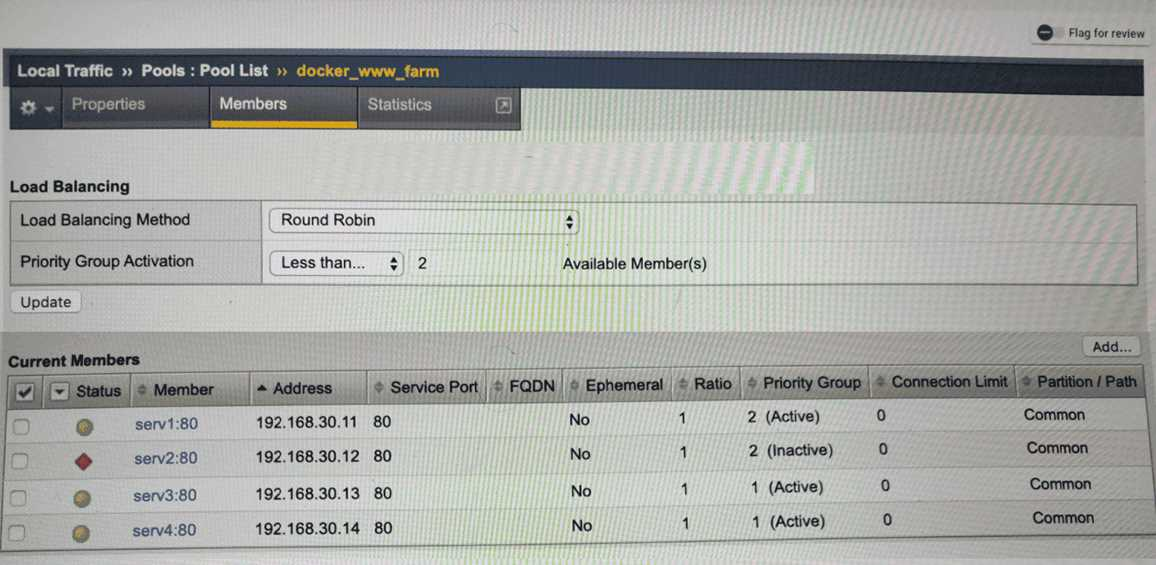

Refer to the exhibit above.A BIG-IP pool is configured with Priority Group Activation = Less than 2 available members. The pool members have different priority groups and availability states. Which pool members are receiving traffic? (Choose one answer)
This question tests understanding of Priority Group Activation (PGA) and how BIG-IP determines which pool members are eligible to receive traffic.Key BIG-IP Priority Group Concepts:Higher priority group numbers = higher priorityBIG-IP will only send traffic to the highest priority group that meets the Priority Group Activation conditionLower priority groups are activated only when the condition is metOnly available (green) members count toward the activation thresholdConfiguration from the Exhibit:Priority Group Activation: Less than 2 available membersPool Members and Status:Pool Member Priority Group Status serv1 2 Active (available)serv2 2 Inactive (down)serv3 1 Active (available)serv4 1 Active (available)Step-by-Step Traffic Decision:BIG-IP first evaluates the highest priority group (Priority Group 2)Priority Group 2 has:serv1 →available serv2 →unavailableTotal available members = 1Activation rule is Less than 2 available membersCondition is true (1 < 2)BIG-IP activates the next lower priority group (Priority Group 1)Traffic is now sent to:serv1 (Priority Group 2)serv3 and serv4 (Priority Group 1)Final Result:Traffic is distributed to serv1, serv3, and serv4Why the Other Options Are Incorrect:A – Ignores activation of the lower priority groupB – serv4 is also active and eligibleC – serv2 is down and cannot receive trafficKey Data Plane Concept Reinforced:Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number of available members in the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP to expand traffic distribution to lower-priority members to maintain availability.

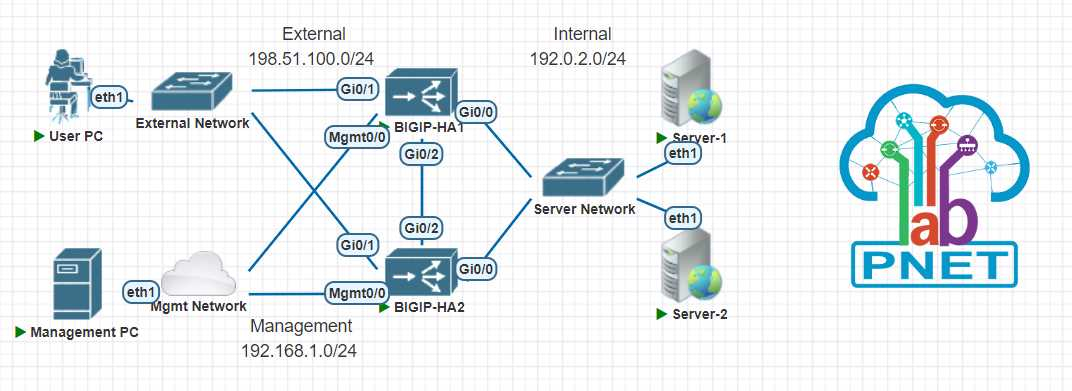

and their status/statistics]The network architecture for a BIG-IP consists of an external VLAN and an internal VLAN with two interfaces connected to the upstream switch. The design requires fault tolerance in the case that one of the interfaces is down. Which deployment architecture meets these requirements? (Choose one answer)
To meet the requirement of fault tolerance when one interface goes down, BIG-IP must use link aggregation so that loss of a single physical link does not isolate the VLAN(s).How the objects relate (data plane view)Interfaces = physical links.Trunk (LACP) = bundles multiple interfaces into one logical link that provides redundancy (and possibly bandwidth aggregation).VLANs are assigned to interfaces or trunks. If you need multiple VLANs on the same trunk, they must use 802.1Q tagging (because you can only have one untagged VLAN per interface/trunk).Self IPs are then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency—the trunk does.Why Option D is correctYou have two physical interfaces and you want resiliency if one fails →put both interfaces into one trunk with LACP enabled.You need both external and internal VLANs on those same two links →both VLANs should be configured as tagged on that trunk, so they can coexist on the same aggregated link.If either physical interface fails, the trunk remains up via the remaining interface, keeping both VLANs operational.Why the other options are incorrectA: Two VLANs cannot both be untagged on the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.B: Two trunks “each with one VLAN” would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk—if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.
What should a BIG-IP Administrator configure to minimize impact during a failover? (Choose one answer)
In BIG-IP high availability (HA) deployments, one of the primary causes of traffic disruption during failover is Layer 2 and Layer 3 relearning by upstream network devices (switches and routers). When traffic groups move from the Active device to the Standby device, the network must quickly associate the IP addresses with the new device.Why MAC Masquerading Minimizes Failover Impact:MAC masquerading allows a traffic group to use a floating, shared MAC address for its Self IPs. ThisMAC address moves with the traffic group during failover.Key benefits:The MAC address does not change when failover occursUpstream switches do not need to relearn ARP entriesTraffic resumes almost immediately after failoverDramatically reduces packet loss and connection interruptionFrom BIG-IP Administration Data Plane Concepts:MAC masquerade is specifically designed to provide fast failoverIt is a best practice for HA pairs, especially in environments sensitive to latency and connection lossWhy the Other Options Are Incorrect:A . External monitorsUsed to check the availability of external resourcesDo not reduce network convergence or failover disruptionB . Clone poolUsed for traffic mirroring or security analysisHas no impact on failover behaviorC . OneConnect profileOptimizes server-side TCP connectionsDoes not address ARP or MAC relearning during failoverKey HA Concept Reinforced:To minimize failover impact on live traffic, BIG-IP administrators should ensure Layer 2 continuity. MAC masquerading is the primary mechanism that enables near-instant failover by preventing ARP and MAC table reconvergence delays.

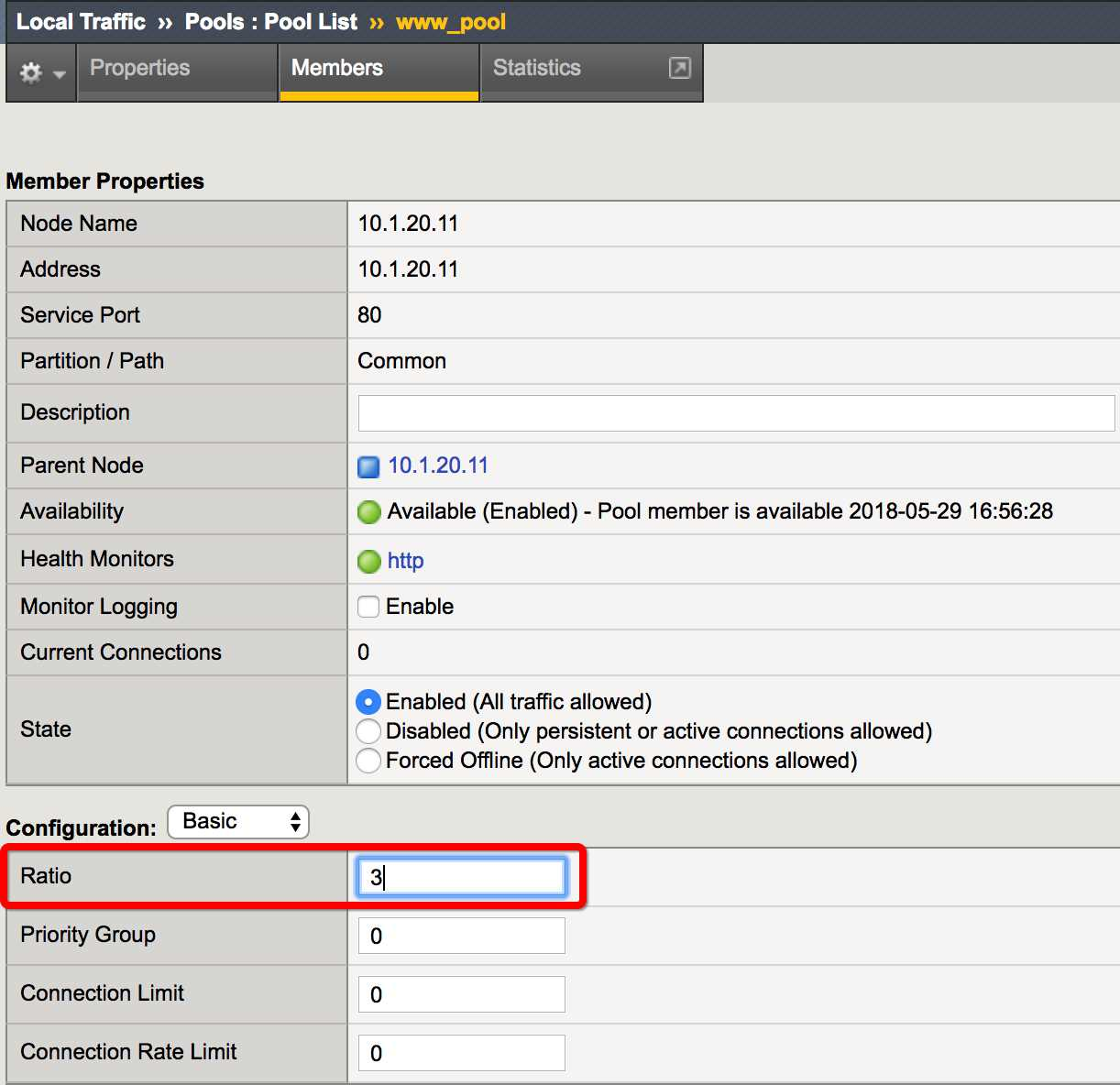

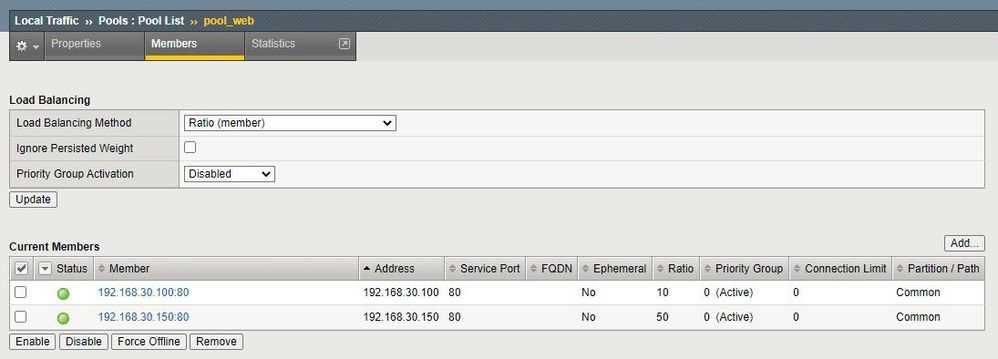

Refer to the exhibit.The BIG-IP Administrator needs to avoid overloading any of the pool members with connections when they become active. What should the BIG-IP Administrator configure to meet this requirement? (Choose one answer)
Answer(s): A

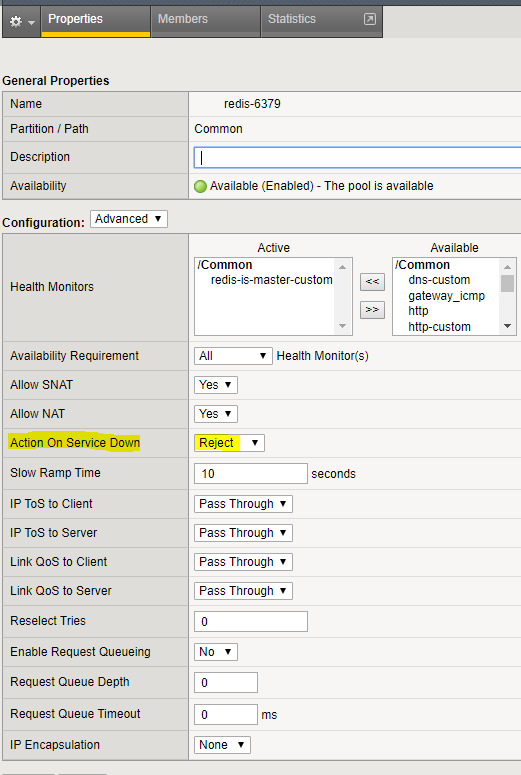

This question focuses on connection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.What problem is being solved?When a pool member:Recovers from a failureIs enabled after maintenanceTransitions from inactive to active…it can suddenly receive a large burst of new connections, especially when using load-balancing methods such as Least Connections. This sudden surge can overload the server.Why Slow Ramp Time is the correct solution:Slow Ramp Time is a pool-level setting that:Gradually increases the number of connections sent to a newly available pool memberPrevents sudden spikes in trafficAllows the server to warm up (application cache, JVM, DB connections, etc.)From BIG-IP Administration Data Plane Concepts:Slow Ramp Time controls the rate at which BIG-IP increases load to a pool member that has just become availableDuring the ramp period, BIG-IP artificially increases the member’s connection count, making it appear “busier” and therefore less attractive for new connectionsThis directly satisfies the requirement to avoid overloading pool members when they become active.Why the Other Options Are Incorrect:B . Different Ratio for each memberRatios control relative distribution under normal operationThey do not prevent a sudden surge when a member becomes activeC . Action On Service Down to ReselectControls persistence behavior when a member goes downHas no impact on connection ramp-up when a member comes back onlineD . Same Priority Group to each memberAffects failover logic between priority groupsDoes not control connection rate or ramp-up behaviorKey Data Plane Concept Reinforced:To protect backend servers during recovery events, BIG-IP provides Slow Ramp Time, ensuring graceful reintroduction of traffic and preventing connection storms that can occur during high-load scenarios.
A BIG-IP Administrator configures remote authentication and needs to ensure that users can still log in even when the remote authentication server is unavailable. Which action should the BIG-IP Administrator take in the remote authentication configuration to meet this requirement? (Choose one answer)
Although remote authentication (LDAP, RADIUS, TACACS+) is a control-plane / management-plane feature, it directly affects availability and resiliency of administrative access, which is a critical operational HA consideration.How BIG-IP Remote Authentication Works:BIG-IP can authenticate administrators against:LDAPRADIUSTACACS+When remote authentication is enabled, BIG-IP by default relies on the remote server for user authenticationIf the remote authentication server becomes unreachable, administrators may be locked out unless fallback is configuredWhy “Fallback to Local” Is Required:The Fallback to Local option allows BIG-IP to:Attempt authentication against the remote authentication server firstIf the remote server is unreachable or unavailable, fall back to:Local BIG-IP user accounts (admin, or other locally defined users)This ensures:Continuous administrative accessSafe recovery during:Network outagesAuthentication server failuresMaintenance windowsThis behavior is explicitly recommended as a best practice in BIG-IP administration to avoid loss of management access.Why the Other Options Are Incorrect:A . Configure a second remote user directoryProvides redundancy only if both directories are reachableDoes not help if remote authentication as a whole is unavailableB . Configure a remote role groupMaps remote users to BIG-IP rolesDoes not affect authentication availabilityD . Set partition access to “All”Controls authorization scope after loginHas no impact on authentication successKey Availability Concept Reinforced:To maintain administrative access resiliency, BIG-IP administrators should always enable Fallback to Local when using remote authentication. This prevents lockouts and ensures access even during authentication infrastructure failures.

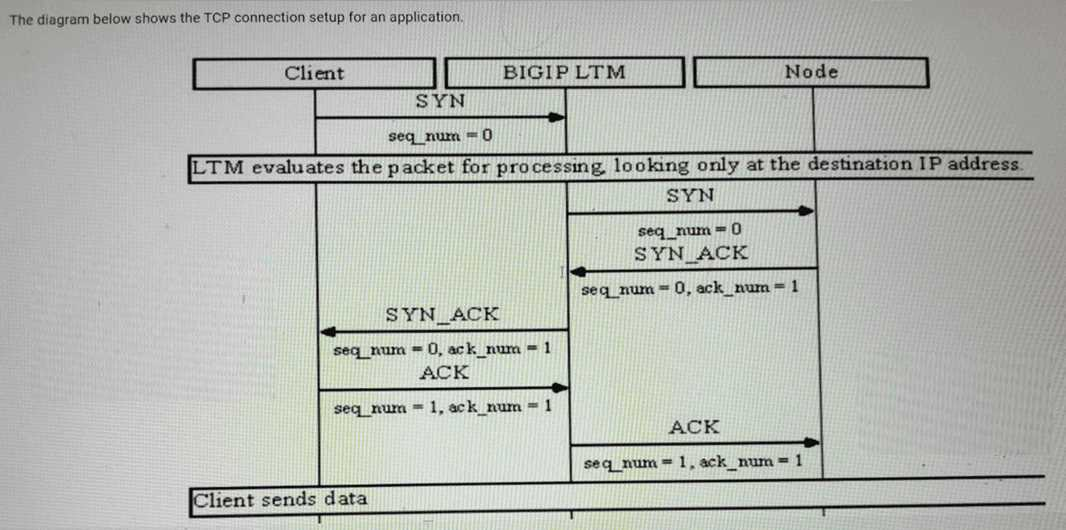

The diagram below shows the TCP connection setup for an application.Which of the following virtual server types applies? (Choose one answer)
Answer(s): B
The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:Initial Packet Processing: The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address. This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system's routing table to make forwarding decisions instead of load balancing to a pool of members.Handshake Sequence: Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client's original SYN packet directly to the destination node.Response Timing: The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially "passes through" the handshake signals while still maintaining a state entry in the connection table to track the flow.Packet-by-Packet Logic: While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.Why other options are incorrect:Standard virtual server: A Standard virtual server is a "full proxy." It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.Stateless virtual server: A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.
