An administrator must enable direct communication between multiple spokes in a company's network. Each spoke has more than one internet connection. The requirement is for the spokes to connect directly without passing through the hub, and for the links to automatically switch to the best available connection. How can this automatic detection and optimal link utilization between spokes be achieved?
Answer(s): B
ADVPN (Auto-Discovery VPN) 2.0 is the optimal solution for enabling direct spoke-to-spoke communication without passing through the hub, while also allowing automatic link selection based on quality metrics.Dynamic Direct Tunnels:ADVPN 2.0 allows spokes to establish direct IPsec tunnels dynamically based on traffic patterns, reducing latency and improving performance.Unlike static VPNs, spokes do not need to pre-configure tunnels for each other.Automatic Link Optimization:ADVPN 2.0 monitors the quality of multiple internet connections on each spoke. It automatically switches to the best available connection when the primary link degrades or fails.This is achieved by dynamically adjusting BGP-based routing or leveraging SD-WAN integration.
What does the command set forward-domain <domain_ID> in a transparent VDOM interface do?
In a transparent mode Virtual Domain (VDOM) configuration, FortiGate operates as a Layer 2 bridge rather than performing Layer 3 routing. The set forward-domain <domain_ID> command is used to control how traffic is forwarded between interfaces within the same transparent VDOM.A forward-domain acts as a broadcast domain, meaning only interfaces with the same forward- domain ID can exchange traffic. This setting is commonly used to separate different VLANs or network segments within the transparent VDOM while still allowing FortiGate to apply security policies.

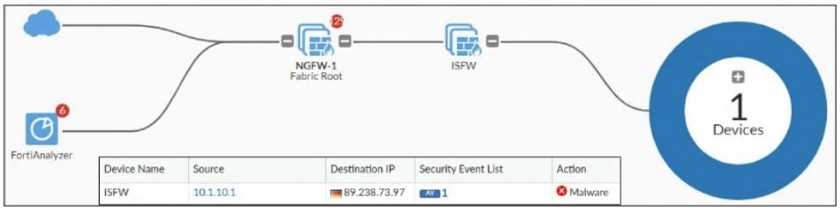

Refer to the exhibit, which shows a physical topology and a traffic log.The administrator is checking on FortiAnalyzer traffic from the device with IP address 10.1.10.1, located behind the FortiGate ISFW device.The firewall policy in on the ISFW device does not have UTM enabled and the administrator is surprised to see a log with the action Malware, as shown in the exhibit.What are the two reasons FortiAnalyzer would display this log? (Choose two.)
Answer(s): B,D
From the exhibit, ISFW is part of a Security Fabric environment with NGFW-1 as the Fabric Root. In this architecture, FortiGate devices share security intelligence, including logs and detected threats.ISFW is in a Security Fabric environment:Security Fabric allows devices like ISFW to receive threat intelligence from NGFW-1, even if UTM is not enabled locally.If NGFW-1 detects malware from IP 10.1.10.1 to 89.238.73.97, this information can be propagated to ISFW and FortiAnalyzer.The firewall policy in NGFW-1 has UTM enabled:Even though ISFW does not have UTM enabled, NGFW-1 (which sits between ISFW and the external network) does have UTM enabled and is scanning traffic. Since NGFW-1 detects malware in the session, it logs the event, which is then sent to FortiAnalyzer.

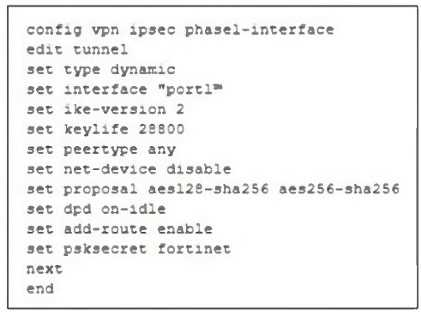

Refer to the exhibit, which contains a partial VPN configuration.What can you conclude from this VPN IPsec phase 1 configuration?
Answer(s): A
This IPsec Phase 1 configuration defines a dynamic VPN tunnel that can accept connections from multiple peers. The settings chosen here suggest a configuration optimized for networks with intermittent traffic patterns while ensuring resources are used efficiently.Key configurations and their impact:set type dynamic This allows multiple peers to establish connections dynamically without needing predefined IP addresses.set ike-version 2 Uses IKEv2, which is more efficient and supports features like EAP authentication and reduced rekeying overhead.set dpd on-idle Dead Peer Detection (DPD) is triggered only when the tunnel is idle, reducing unnecessary keep-alive packets and improving resource utilization. set add-route enable FortiGate automatically adds the route to the routing table when the tunnel is established, ensuring connectivity when needed. set proposal aes128-sha256 aes256-sha256 Uses strong encryption and hashing algorithms, ensuring a secure connection.set keylife 28800 Sets a longer key lifetime (8 hours), reducing the frequency of rekeying, which is beneficial for stable connections.Because DPD is set to on-idle, the tunnel will not constantly send keep-alive messages but will still ensure connectivity when traffic is detected. This makes the configuration ideal for networks with regular but non-continuous traffic, balancing security and resource efficiency.
A company's users on an IPsec VPN between FortiGate A and B have experienced intermittent issues since implementing VXLAN. The administrator suspects that packets exceeding the 1500-byte default MTU are causing the problems.In which situation would adjusting the interface's maximum MTU value help resolve issues caused by protocols that add extra headers to IP packets?
Answer(s): C
When using IPsec VPNs and VXLAN, additional headers are added to packets, which can exceed the default 1500-byte MTU. This can lead to fragmentation issues, dropped packets, or degraded performance.To resolve this, the MTU (Maximum Transmission Unit) should be adjusted only if all devices in the network path support it. Otherwise, some devices may still drop or fragment packets, leading to continued issues.Why adjusting MTU helps:VXLAN adds a 50-byte overhead to packets.IPsec adds additional encapsulation (ESP, GRE, etc.), increasing the packet size. If packets exceed the MTU, they may be fragmented or dropped, causing intermittent connectivity issues.Lowering the MTU on interfaces ensures packets stay within the supported size limit across all network devices.
