Free FCSS_NST_SE-7.4 Exam Braindumps
FCSS - Network Security 7.4 Support Engineer Questions 16–20 (page: 5)

Updated On: 10-Feb-2026
Page 5 of 15
PDF with 71 Questions

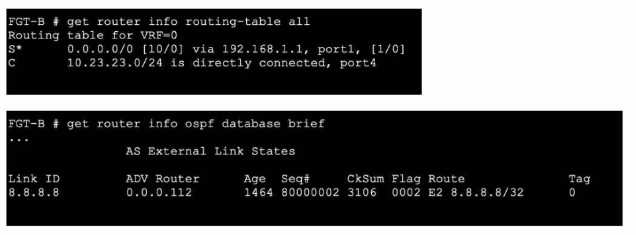

Refer to the exhibits.



An administrator Is expecting to receive advertised route 8.8.8.8/32 from FGT-

  1. On FGT-B, they confirm that the route is being advertised and received, however, the route is not being injected into the routing table.
    What is the most likely cause of this issue?
  2. A batter route to the 8.8.8.8/32 network exists in the routing table.
  3. FGT-B is configured with a prefix list denying the 8.8.8.8/32 network to be injected into the routing table.
  4. The administrator has misconfigured redistribution of routes on FGT-A.
  5. FGT-8 is configured with a distribution list denying the 8.8.8.8/32 network to be injected into the routing table.

Answer(s): B

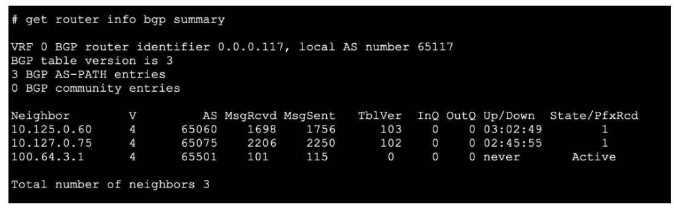

Refer to the exhibit, which shows the output of a BGP debug command.



What can you conclude about the router in this scenario?

  1. The router 100.64.3.1 needs to update the local AS number in its BGP configuration in order to bring up the 8GP session with the local router.
  2. An inbound route-map on local router is blocking the prefixes from neighbor 100.64.3.1.
  3. All of the neighbors displayed are part of a single BGP configuration on the local router with the neighbor-range set to a value of 4.
  4. The BGP session with peer 10.127.0.75 is up.

Answer(s): D



Which two statements about an auxiliary session ate true? (Choose two.)

  1. With the auxiliary session selling disabled, only auxiliary sessions are offloaded.
  2. With the auxiliary session setting enabled. ECMP traffic is accelerated to the NP6 processor.
  3. With the auxiliary session setting enabled. Iwo sessions are created in case of routing change.
  4. With the auxiliary session setting disabled, for each traffic path. FortiGate uses the same auxiliary session.

Answer(s): B,C



Exhibit.

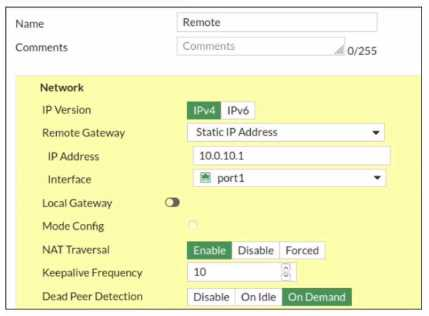

Refer to the exhibit, which contains a screenshot of some phase 1 settings. The VPN is not up. To diagnose the issue, the administrator enters the following CLI commands on an SSH session on FortiGate:



However, the IKE real-time debug does not show any output.
Why?

  1. The administrator must also run the command diagnose debug enable.
  2. The debug shows only error messages. If there is no output, then the phase 1 and phase 2 configurations match.
  3. The log-filter setting is incorrect. The VPN traffic does not match this filter.
  4. Replace diagnose debug application ike -1 with diagnose debug application ipsec -1.

Answer(s): A



Which two statements are true regarding heartbeat messages sent from an FSSO collector agent to FortiGate? (Choose two.)

  1. The heartbeat messages can be seen using the command diagnose debug authd fsso list.
  2. The heartbeat messages can be seen in the collector agent logs.
  3. The heartbeat messages can be seen on FortiGate using the real-lime FSSO debug.
  4. The heartbeat messages must be manually enabled on FortiGate.

Answer(s): B,C



  PDF
Viewing page 5 of 15
Viewing questions 21 - 25 out of 71 questions
