QUESTION: 5

Refer to the exhibits.

Port1 and port2 are the only ports configured with the same native VLAN 10.
What are two reasons that can trigger port1 to shut down? (Choose two.)

port1 was shut down by loop guard protection.
STP triggered a loop and applied loop guard protection on port1.
An endpoint sent a BPDU on port1 that it received from another interface.
Loop guard frame sourced from port 1 was received on port 1.

Answer(s): B,C

Reveal Solution Next Question

QUESTION: 6

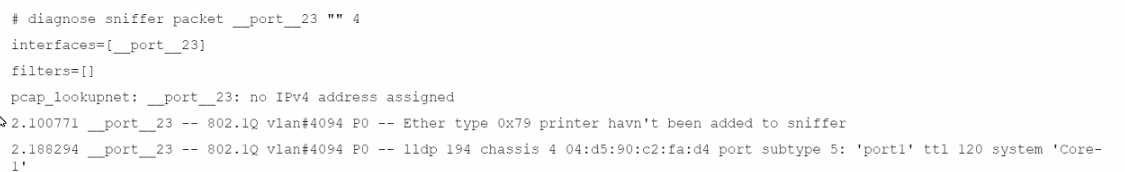

Refer to the diagnostic output:

What makes the use of the sniffer command on the FortiSwitch CLI unreliable on__port__23?

The types of packets captured is limited.
Just the port egress payloads are printed on CLI.
Only untagged VLAN traffic can be captured.
The switch port might be used as a trunk member

Answer(s): A

Reveal Solution Next Question

QUESTION: 7

Which interfaces on FortiSwitch send out FortiLink discovery frames by default in order to detect a FortiGate with an enabled FortiLink interface?

All ports have auto-discovery enabled by default.
No ports are enabled by default for auto-discovery. This must be configured under config switch interface.
The ports with auto-discovery enabled by default are dependent upon the FortiSwitch model.
The last four switch ports on FortiSwitch have auto-discovery enabled by default.

Answer(s): A

Reveal Solution Next Question
