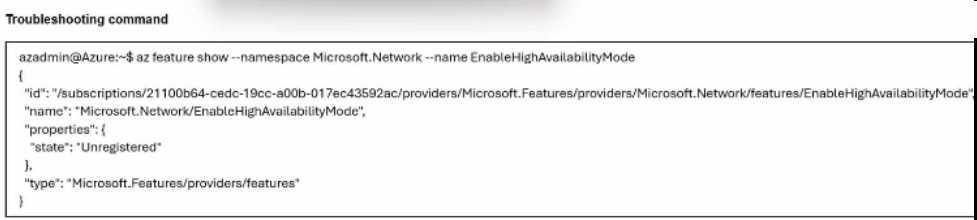

Refer to the exhibit.A managed security service provider (MSSP) administration team is trying to deploy a new HA cluster in Azure to filter traffic to and from a client that is also using Azure. However, every deployment attempt fails, and only some of the resources are deployed successfully. While troubleshooting this issue, the team runs the command shown in the exhibit.What are the implications of the output of the command?
Answer(s): D

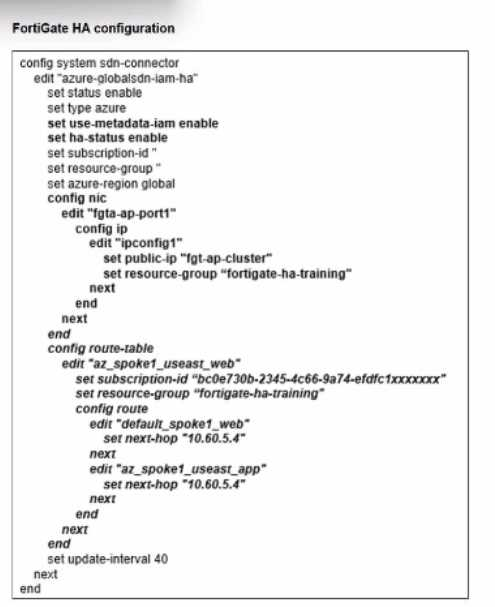

Refer to the exhibit.You deployed a FortiGate HA active-passive cluster in Microsoft Azure.Which two statements regarding this particular deployment are true? (Choose two.)
Answer(s): B,D

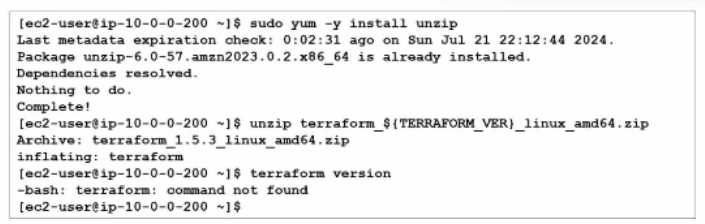

Exhibit.You are tasked with deploying FortiGate using Terraform. When you run the terraform version command during the Terraform installation, you get an error message.What could you do to resolve the command not found error?
Answer(s): A
https://github.com/fortinet/fortigate-terraform-deployAccording to the Terraform documentation for installing Terraform on Linux, you need to download a zip archive that contains a single binary file called terraform. You need to unzip the archive and move the binary file to a directory that is included in your system's PATH environment variable, such as /usr/local/bin. This way, you can run the terraform command from any directory without specifying the full path.If you do not move the binary file to the bin directory, you will get a command not found error when you try to run the terraform version command, as shown in the screenshot. To fix this error, you need to move the binary file to the bin directory or specify the full path of the binary file when running the command.

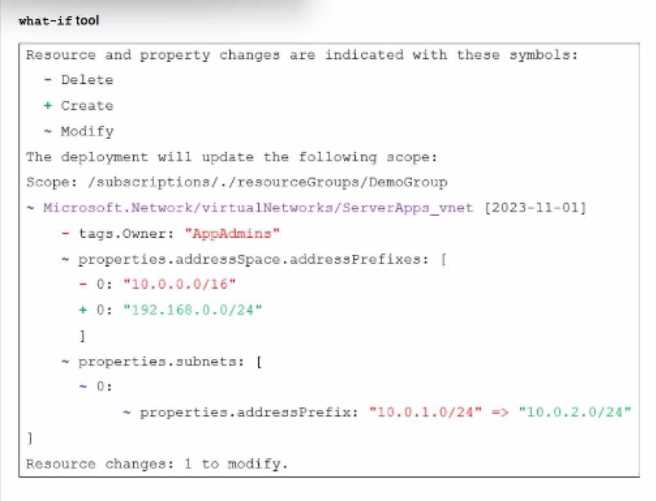

Refer to the exhibit.An administrator used the what-if tool to preview changes to an Azure Bicep file.What will happen if the administrator decides to apply these changes in Azure?
Answer(s): B
Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 curriculum and Azure Resource Manager (ARM) deployment logic, the what-if tool provides a predictive analysis of infrastructure changes.Analyzing the Modification Symbols (Option B): The exhibit shows several critical changes being attempted simultaneously on the ServerApps_vnet.VNet Address Space Change: The symbol - (Delete) is next to the address space 10.0.0.0/16, and + (Create) is next to 192.168.0.0/24.Subnet Modification: Further down, the symbol ~ (Modify) indicates an attempt to change the prefix of an existing subnet from 10.0.1.0/24 to 10.0.2.0/24.Azure Deployment Constraints: According to the FortiOS 7.6 Azure Administration Guide, Azure networking has strict dependencies. You cannot delete or modify an address space that contains active subnets or resources.Why the deployment fails: The what-if output shows the administrator is trying to remove the 10.0.0.0/16 address range. However, the existing subnet 10.0.1.0/24 is still "resident" within that range during the transaction. Because the subnet is currently attached to the address space being deleted, Azure Resource Manager will reject the deployment as an invalid operation. The attempt to add a new 192.168.0.0/24 range does not resolve the conflict of removing the active range.Why other options are incorrect:Option A: The tool shows that 10.0.1.0/24 is being changed to 10.0.2.0/24, not that one is replacing the other as a new entity.Option C: The symbols show a modification (~) of an existing subnet (index 0:), not the creation (+) of an entirely new subnet.Option D: The VNet name ServerApps_vnet is not being changed; only its internal properties (tags, address space, and subnets) are being modified.

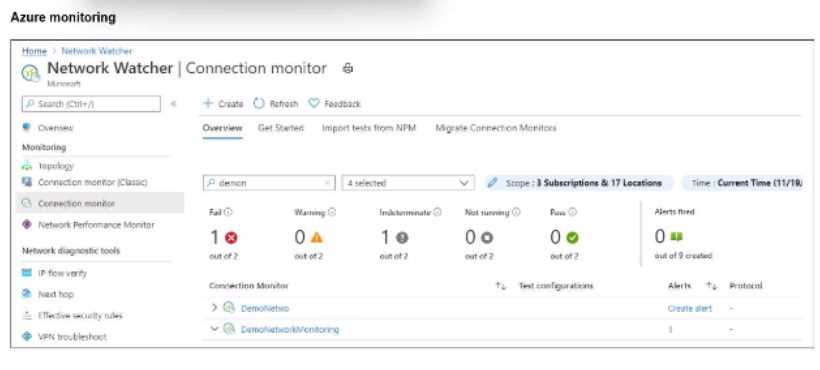

Refer to the exhibit.After analyzing the native monitoring tools available in Azure, an administrator decides to use the tool displayed in the exhibit.Why would an administrator choose this tool?
