A multinational company is deploying SD-WAN with direct internet access (DIA) at multiple regions. Regional hub sites have redundant internet connections, and branch sites connect directly to the internet as backup paths. You need to ensure optimal traffic distribution and monitor member health to prevent routing to failed links.
Which SD-WAN monitoring and configuration elements are critical for this design?

  1. SD-WAN member health probes, traffic distribution policies, SD-WAN widgets, and traffic logs for member status and performance metrics
  2. VDOM-based traffic segmentation only; health probes are not needed with DIA
  3. BGP routing alone without SD-WAN-specific monitoring
  4. FortiNAC dynamic firewall addressing to manage all branch connectivity

Answer(s): A

Explanation:

SD-WAN with DIA topologies requires active monitoring to ensure traffic flows over healthy paths. The critical elements are: (1) member health probes that detect link failures and quality degradation, (2) SD-WAN traffic distribution policies that define how traffic is allocated across members, (3) SD-WAN widgets in the dashboard that provide real-time visibility into member status, and (4) traffic logs and events that record routing decisions and member transitions. VDOM segmentation does not provide link health visibility. BGP alone does not provide the SD-WAN-specific health detection and traffic steering that DIA topologies require. FortiNAC addresses endpoint identity and posture, not SD-WAN member health.



Consider the scenario where the server name indication (SNI) does not match either the common name (CN) or any of the subject alternative names (SAN) in the server certificate.
Which action will FortiGate take when using the default settings for SSL certificate inspection?

  1. FortiGate uses the SNI from the user's web browser.
  2. FortiGate closes the connection because this represents an invalid SSL/TLS configuration.
  3. FortiGate uses the first entry listed in the SAN field in the server certificate.
  4. FortiGate uses the CN information from the Subject field in the server certificate.

Answer(s): D

Explanation:

When FortiGate performs SSL certificate inspection with default settings, it checks if the Server Name Indication (SNI) matches either the Common Name (CN) or any Subject Alternative Name (SAN) in the server certificate. If there is no match, FortiGatedoes not block the connection; instead, it uses the CN value from the certificate's subject field to continue web filtering and categorization.
This behavior is described in the official Fortinet 7.6.4 Administration Guide:
''Check the SNI in the hello message with the CN or SAN field in the returned server certificate: Enable: If it is mismatched, use the CN in the server certificate.'' This is the default (Enable) mode, which differs from the Strict mode that would block the mismatched connection.
By default, this policy ensures service continuity and prevents disruptions due to certificate mismatches, allowing FortiGate to log and inspect based on the CN even when the requested SNI does not match. It provides a balance between connection reliability and the accuracy of filtering by certificate identity, allowing security policies to remain functional without unnecessary blocks. This approach is recommended by Fortinet to maintain usability for end-users while still supporting granular inspection.
FortiGate 7.6.4 Administration Guide: Certificate Inspection
SSL/SSH Inspection Profile Configuration



MULTIPLE CHOICE
Exhibit.

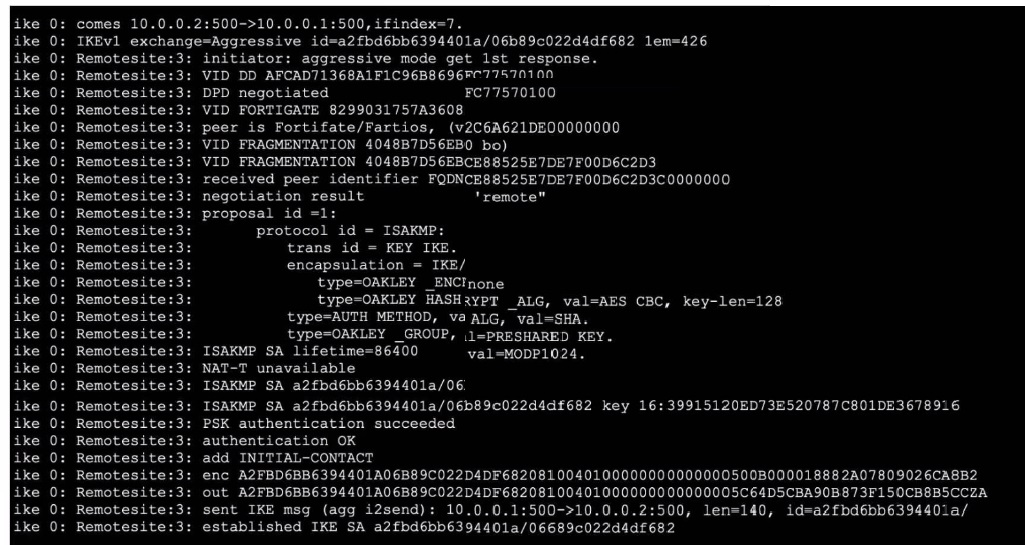

Refer to the exhibit, which contains partial output from an IKE real-time debug.
Which two statements about this debug output are correct? (Choose two.)

  1. Perfect Forward Secrecy (PFS) is enabled in the configuration.
  2. The local gateway IP address is 10.0.0.1.
  3. It shows a phase 2 negotiation.
  4. The initiator provided remote as its IPsec peer I

Answer(s): C,D

Explanation:

From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode. Let's break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:
For Option B:
The very first line of the debug output shows:
comes 10.0.0.2:500->10.0.0.1:500, ifindex=7.
This indicates the traffic direction---from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet's documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.
For Option D:
You see the statement:
negotiation result 'remote'
and received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000
Official debug documentation describes that the 'peer identifier' or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing 'remote' as the peer ID for its connection.
Why Not A or C:
Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.
Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there's no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.
This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide's VPN section and the official debug command output samples published in Fortinet's documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.
FortiOS 7.6.4 Administration Guide: IPsec VPN and Debugging VPNs
Technical Support Resources on interpreting IKE debug output and peer ID roles



Exhibit.

Refer to the exhibit, which shows the output of a diagnose command.
What can you conclude about the debug output in this scenario?

  1. The first server provided to FortiGate when it performed a DNS query looking for a list of rating servers, was 121.111.236.179.
  2. There is a natural correlation between the value in the FortiGuard-requests field and the value in the Weight field.
  3. FortiGate used 64.26.151.37 as the initial server to validate its contract.
  4. Servers with a negative TZ value are less preferred for rating requests.

Answer(s): C

Explanation:

The exhibit displays the output from the diagnose debug rating command on a FortiGate device. This command is used to display information about FortiGuard Web Filtering or other security-related queries performed by FortiGate to FortiGuard servers. Official Fortinet documentation outlines the meaning of each field in the server list. The FortiGate maintains a list of available FortiGuard servers, selecting the optimal server based on factors such as weight, round-trip time (RTT), and regional settings.
The very first entry in the server list after 'Server List' is the server FortiGate initially uses, prioritized by factors such as proximity and RTT. Here, 64.26.151.37 is listed first, and the FortiGuard-requests value confirms that this server handled the highest number of requests. The IPs, weights, and lost/failed counters are monitored for server performance and selection over time. FortiGate's default operational logic is to try the first entry for contract validation and use the next in the list if the first is unavailable or has high latency or packet loss.
There is no direct correlation between the Weight and the number of FortiGuard-requests. The servers with higher or lower weights may still handle different request volumes based on availability and performance.
The TZ (time zone) value's sign (positive or negative) does not affect server preference; it is informational, showing the server's location relative to UTC, not a rating metric.
DNS query results for FortiGuard servers are not shown here, and the provided servers are not returned in DNS query order.
This command and interpretation are detailed in the FortiOS Administration Guide's section describing FortiGuard server selection and contract validation processes.
FortiOS Administration Guide: FortiGuard Service Connectivity and Debugging
Official Technical Notes on diagnose debug rating output structure

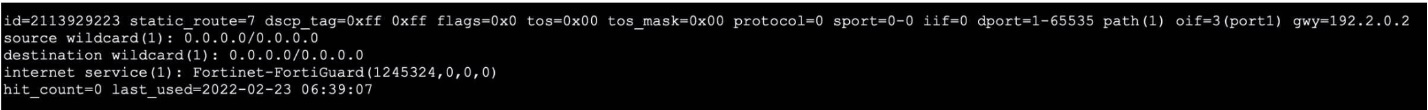

Refer to the exhibit, which shows the output of a policy route table entry.

Which type of policy route does the output show?

  1. An ISDB route
  2. A regular policy route
  3. A regular policy route, which is associated with an active static route in the FIB
  4. An SD-WAN rule

Answer(s): D

Explanation:

Without access to the exhibit showing the policy route table entry, I cannot determine which type of policy route is displayed. Policy routes in FortiGate can be based on various criteria such as source/destination IP, protocol, or application. To provide an accurate explanation, the specific output characteristics would need to be visible (e.g., whether it shows policy-based routing based on source address, destination address, service type, or other parameters).



Viewing page 3 of 34
Viewing questions 11 - 15 out of 164 questions
