Free NSE7_LED-7.0 Exam Braindumps (page: 3)

Page 2 of 10
PDF with 47 Questions

Refer to the exhibit.



Examine the FortiManager information shown in the exhibit Which two statements about the FortiManager status are true'' (Choose two)

  1. FortiSwitch manager is working in per-device management mode
  2. FortiSwitch is not authorized
  3. FortiSwitch manager is working in central management mode
  4. FortiSwitch is authorized and offline

Answer(s): C,D

Explanation:

According to the FortiManager Administration Guide, "Central management mode allows you to manage all FortiSwitch devices from a single interface on the FortiManager device." Therefore, option C is true because the exhibit shows that the FortiSwitch manager is enabled and the FortiSwitch device is managed by the FortiManager device. Option D is also true because the exhibit shows that the FortiSwitch device status is offline, which means that it is not reachable by the FortiManager device, but it is authorized, which means that it has been added to the FortiManager device. Option A is false because per-device management mode allows you to manage each FortiSwitch device individually from its own web-based manager or CLI, which is not the case in the exhibit. Option B is false because the FortiSwitch device is authorized, as explained above.



An administrator has configured an SSID in bridge mode for corporate employees All APs are online and provisioned using default AP profiles Employees are unable to locate the SSID to conned Which two configurations can the administrator verify? (Choose two)

  1. Verify that the broadcast SSID option is enabled in the SSID configuration
  2. Verify that the Block Intra-SSID Traffic (intra-vap-privacy) option in the SSID configuration is disabled
  3. Verify that the SSID to an AP group that should be broadcasting the SSID is applied
  4. Verify that the SSID is manually applied on AP profiles for both 2 4 GHz and 5 GHz radios

Answer(s): A,C

Explanation:

According to the FortiAP Configuration Guide1, "To enable the SSID, you must select at least one channel for the radio. If no channels are selected, the SSID will not be enabled. You must also enable Broadcast SSID." Therefore, option A is true because the broadcast SSID option allows the SSID to be visible to wireless clients. Option C is also true because the SSID must be applied to an AP group that contains the APs that should be broadcasting the SSID. According to the same guide1, "You can create AP groups and assign them to different locations or departments. You can then apply different settings, such as SSIDs, to each group." Option B is false because blocking intra-SSID traffic prevents wireless clients on the same SSID from communicating with each other, which is not related to broadcasting the SSID. Option D is false because the SSID can be applied to an AP group or a global profile, which will automatically apply to all APs, without manually configuring each AP profile.



What is the purpose of enabling Windows Active Directory Domain Authentication on FortiAuthenticator?

  1. It enables FortiAuthenticator to use Windows administrator credentials to perform an LDAP lookup for a user search
  2. It enables FortiAuthenticator to use a Windows CA certificate when authenticating RADIUS users
  3. It enables FortiAuthenticator to import users from Windows AD
  4. It enables FortiAuthenticator to register itself as a Windows trusted device to proxy authentication using Kerberos

Answer(s): D

Explanation:

According to the FortiAuthenticator Administration Guide2, "Windows Active Directory domain authentication enables FortiAuthenticator to join a Windows Active Directory domain as a machine entity and proxy authentication requests using Kerberos." Therefore, option D is true because it describes the purpose of enabling Windows Active Directory domain authentication on FortiAuthenticator. Option A is false because FortiAuthenticator does not need Windows administrator credentials to perform an LDAP lookup for a user search. Option B is false because FortiAuthenticator does not use a Windows CA certificate when authenticating RADIUS users, but rather its own CA certificate. Option C is false because FortiAuthenticator does not import users from Windows AD, but rather synchronizes them using LDAP or FSSO.



Refer to the exhibits.

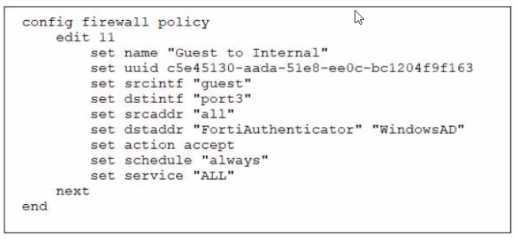

Firewall Policy

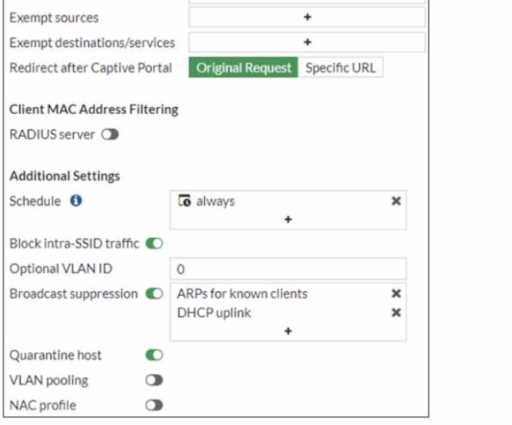

Examine the firewall policy configuration and SSID settings An administrator has configured a guest wireless network on FortiGate using the external captive portal The administrator has verified that the external captive portal URL is correct However wireless users are not able to see the captive portal login page Given the configuration shown in the exhibit and the SSID settings which configuration change should the administrator make to fix the problem?

  1. Disable the user group from the SSID configuration
  2. Enable the captivs-portal-exempt option in the firewall policy with the ID 11.
  3. Apply a guest.portal user group in the firewall policy with the ID 11.
  4. Include the wireless client subnet range in the Exempt Source section

Answer(s): C

Explanation:

According to the FortiGate Administration Guide, "To use an external captive portal, you must configure a user group that uses the external captive portal as the authentication method and apply it to a firewall policy." Therefore, option C is true because it will allow the wireless users to be redirected to the external captive portal URL when they try to access the Internet. Option A is false because disabling the user group from the SSID configuration will prevent the wireless users from being authenticated by the FortiGate device. Option B is false because enabling the captive-portal- exempt option in the firewall policy will bypass the captive portal authentication for the wireless users, which is not the desired outcome. Option D is false because including the wireless client subnet range in the Exempt Source section will also bypass the captive portal authentication for the wireless users, which is not the desired outcome.
