Fortinet NSE7_SDW-6.4 Exam Questions
Fortinet NSE 7 - SD-WAN 6.4 (Page 3 )

Updated On: 19-Apr-2026
Page 3 of 17
PDF with 81 Questions

What are two reasons for using FortiManager to organize and manage the network for a group of FortiGate devices? (Choose two )

  1. It simplifies the deployment and administration of SD-WAN on managed FortiGate devices.
  2. It improves SD-WAN performance on the managed FortiGate devices.
  3. It sends probe signals as health checks to the beacon servers on behalf of FortiGate.
  4. It acts as a policy compliance entity to review all managed FortiGate devices.
  5. It reduces WAN usage on FortiGate devices by acting as a local FortiGuard server.

Answer(s): A,E



In the default SD-WAN minimum configuration, which two statements are correct when traffic matches the default implicit SD-WAN rule? (Choose two )

  1. Traffic has matched none of the FortiGate policy routes.
  2. Matched traffic failed RPF and was caught by the rule.
  3. The FIB lookup resolved interface was the SD-WAN interface.
  4. An absolute SD-WAN rule was defined and matched traffic.

Answer(s): A,C

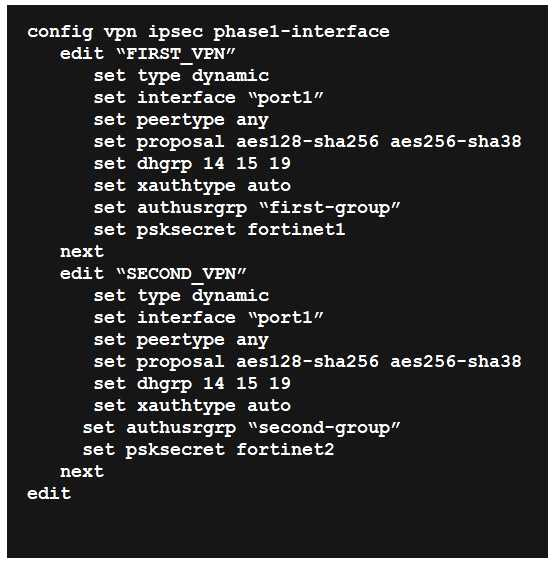

Refer to the exhibit.



FortiGate has multiple dial-up VPN interfaces incoming on port1 that match only FIRST_VPN.

Which two configuration changes must be made to both IPsec VPN interfaces to allow incoming connections to match all possible IPsec dial-up interfaces? (Choose two.)

  1. Specify a unique peer ID for each dial-up VPN interface.
  2. Use different proposals are used between the interfaces.
  3. Configure the IKE mode to be aggressive mode.
  4. Use unique Diffie Hellman groups on each VPN interface.

Answer(s): A,C

Explanation:

SD-WAN 6.4.5 Study Guide. pg 182



What are two roles that SD-WAN orchestrator plays when it works with FortiManager? (Choose two )

  1. It configures and monitors SD-WAN networks on FortiGate devices that are managed by FortiManager.
  2. It acts as a standalone device to assist FortiManager to manage SD-WAN interfaces on the managed
    FortiGate devices.
  3. It acts as a hub FortiGate with an SD-WAN interface enabled and managed along with other FortiGate devices by FortiManager.
  4. It acts as an application that is released and signed by Fortinet to run as a part of management extensions on FortiManager.

Answer(s): A,D

Explanation:

SD-WAN 6.4 Guide Page 158.
https://docs2.fortinet.com/document/fortimanager/6.4.0/sd-wan-orchestrator-6-4-0- administration-guide/91581/introduction

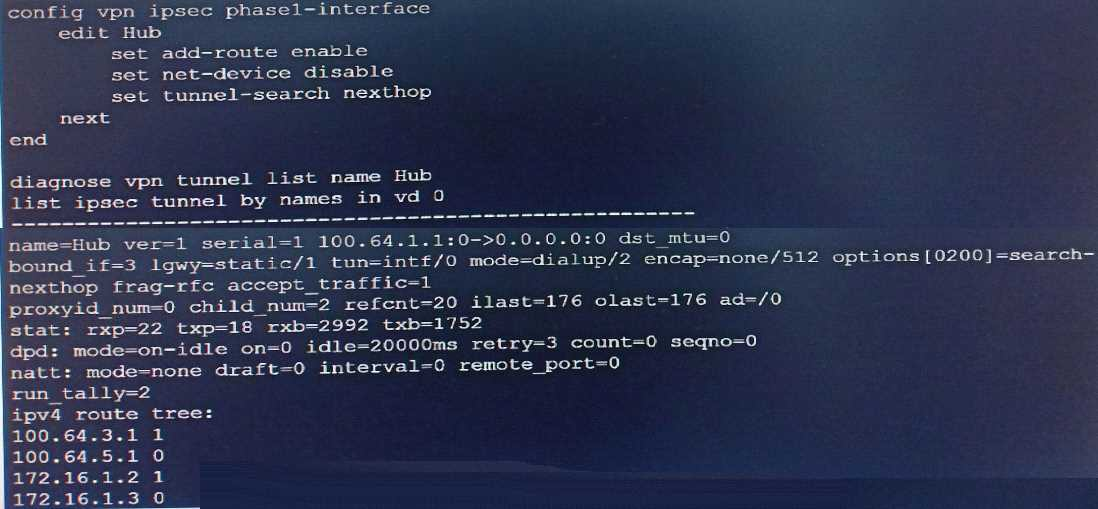

Refer to the exhibit.



Which two statements about the status of the VPN tunnel are true? <Choose two )

  1. There are separate virtual interfaces for each dial-up client.
  2. VPN static routes are prevented from populating the FortiGate routing table.
  3. FortiGate created a single IPsec virtual interface that is shared by all clients.
  4. 100.64.3.1 is one of the remote IP address that comes through index interface 1.

Answer(s): C,D

Explanation:

If net-device is disabled, FortiGate creates a single IPSEC virtual interface that is shared by all IPSEC clients connecting to the same dialup VPN. In this case, the tunnel-search setting determines how FortiGate learns the network behind each remote client.



Viewing page 3 of 17
Viewing questions 11 - 15 out of 81 questions
