Fortinet NSE7_SDW-7.2 Exam Questions
Fortinet NSE 7 - SD-WAN 7.2 (Page 3 )

Updated On: 21-Feb-2026
Page 3 of 21
PDF with 99 Questions

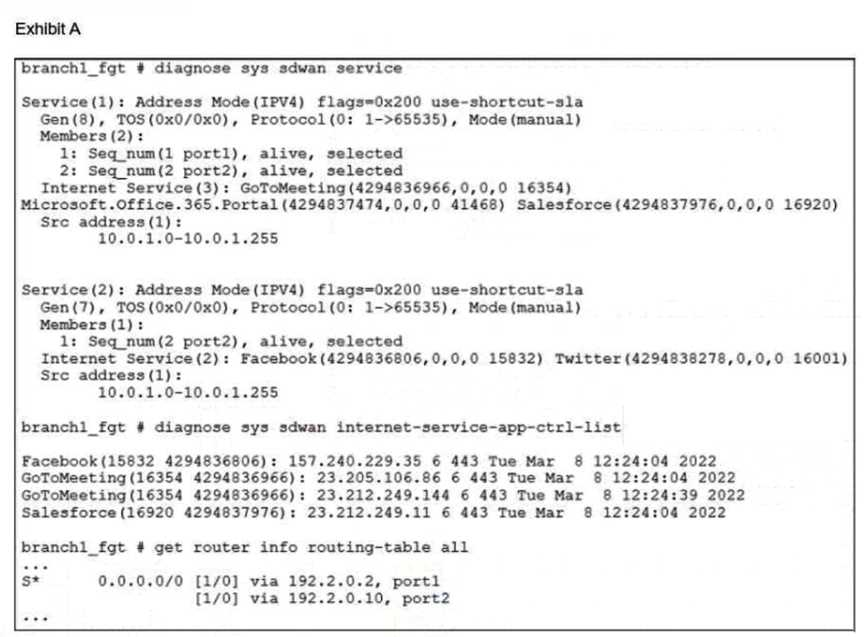

Refer to the exhibits.





An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit A.

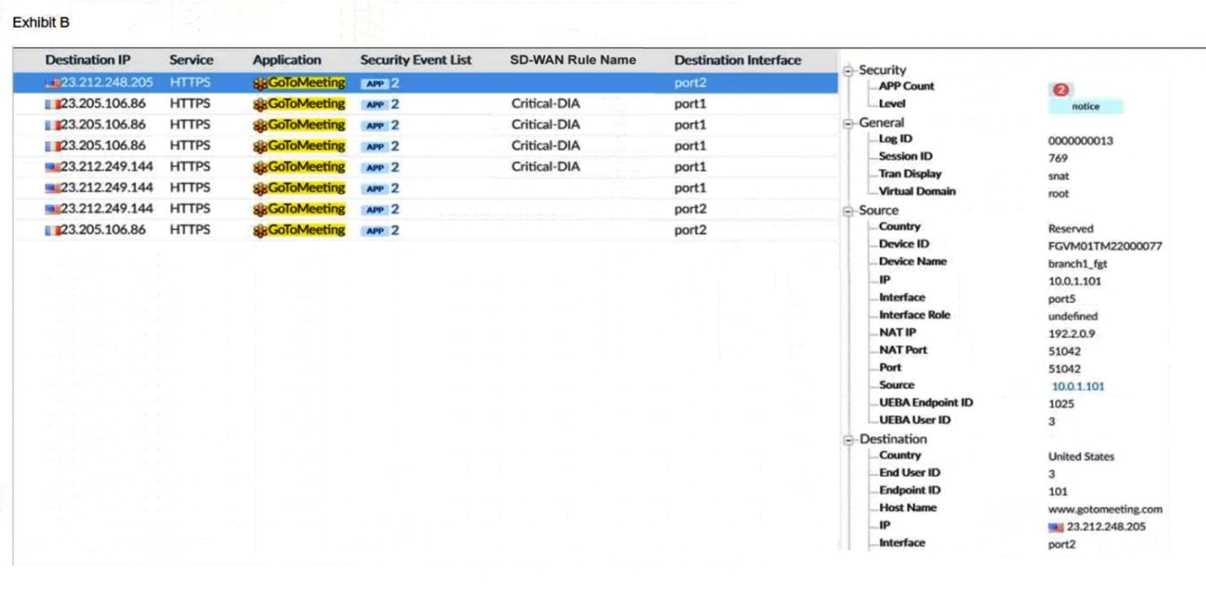

After generating GoToMeeting test traffic, the administrator examined the respective traffic log on FortiAnalyzer, which is shown in exhibit B. The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1.

Which two reasons explain why the traffic matched the implicit SD-WAN rule? (Choose two.)

  1. FortiGate did not refresh the routing information on the session after the application was detected.
  2. Port1 and port2 do not have a valid route to the destination.
  3. Full SSL inspection is not enabled on the matching firewall policy.
  4. The session 3-tuple did not match any of the existing entries in the ISDB application cache.

Answer(s): B,C

Explanation:

Study guide 7.2 Page 191

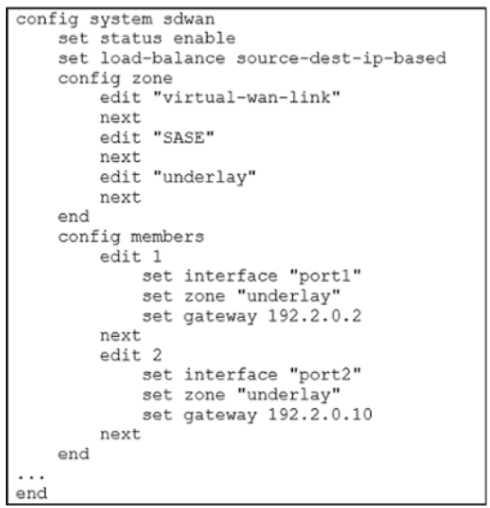

Refer to the exhibit.



Which algorithm does SD-WAN use to distribute traffic that does not match any of the SD-WAN rules?

  1. All traffic from a source IP to a destination IP is sent to the same interface.
  2. All traffic from a source IP is sent to the same interface.
  3. All traffic from a source IP is sent to the most used interface.
  4. All traffic from a source IP to a destination IP is sent to the least used interface.

Answer(s): A

Explanation:

Study Guide 7.2, page 176.



Refer to the exhibits.

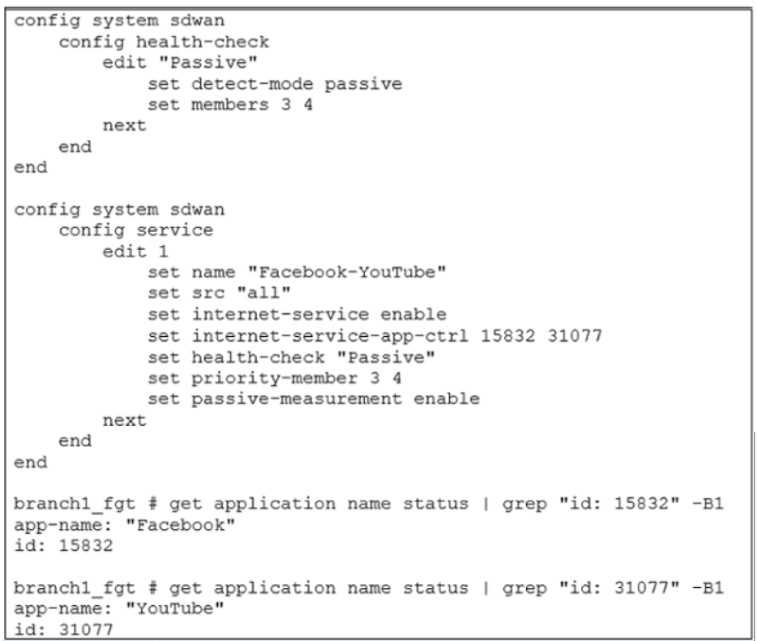

Exhibit A

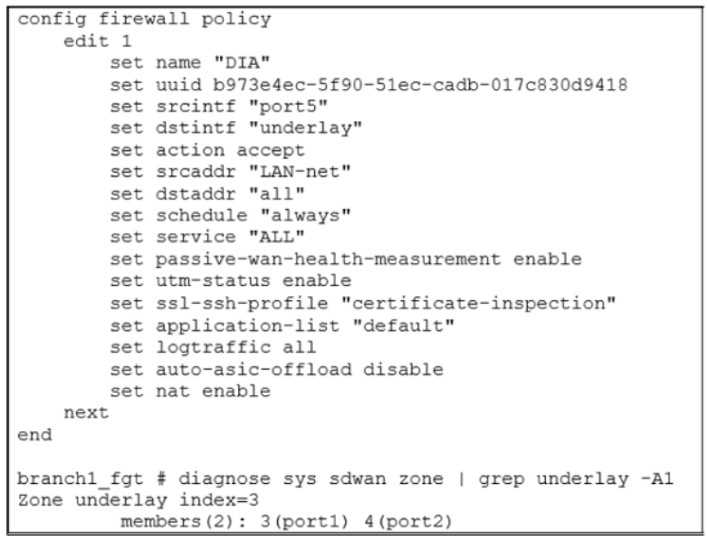

Exhibit B



Exhibit A shows the SD-WAN performance SLA configuration, the SD-WAN rule configuration, and the application IDs of Facebook and YouTube. Exhibit B shows the firewall policy configuration and the underlay zone status.

Based on the exhibits, which two statements are correct about the health and performance of port1 and port2? (Choose two.)

  1. The performance is an average of the metrics measured for Facebook and YouTube traffic passing through the member.
  2. FortiGate is unable to measure jitter and packet loss on Facebook and YouTube traffic.
  3. FortiGate identifies the member as dead when there is no Facebook and YouTube traffic passing through the member.
  4. Non-TCP Facebook and YouTube traffic are not used for performance measurement.

Answer(s): A,D

Explanation:

Study Guide 7.2, pages 103 - 104. Another comment said "because without using application Control on the firewall policy, SDWAN can't work" but there is a app control "default" defined on config.

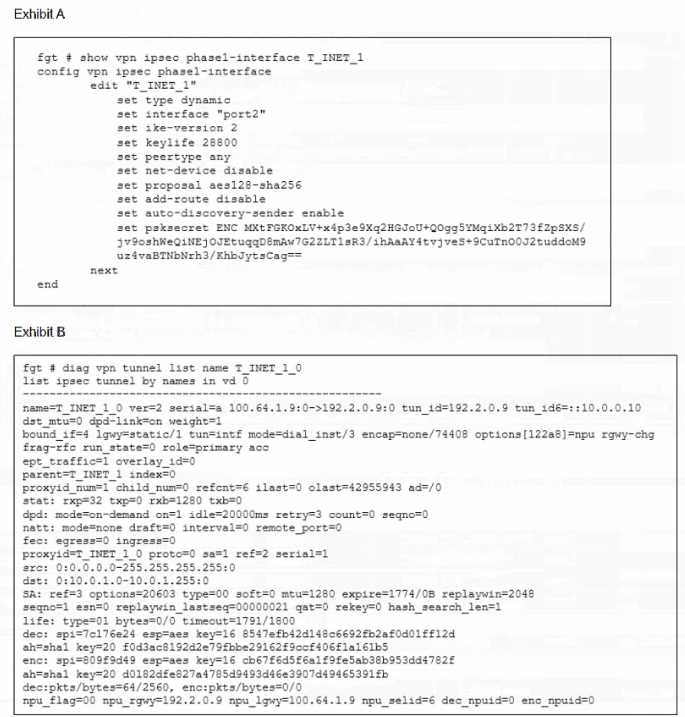

Refer to the exhibit.



Which two statements about the IPsec VPN configuration and the status of the IPsec VPN tunnel are true? (Choose two.)

  1. FortiGate does not install IPsec static routes for remote protected networks in the routing table.
  2. The phase 1 configuration supports the network-overlay setting.
  3. FortiGate facilitated the negotiation of the T_INET_1_0_0 ADVPN shortcut over T_INET_1_0.
  4. Dead peer detection is disabled.

Answer(s): A,B



Refer to the exhibits.





Exhibit A shows the SD-WAN rule status and the learned BGP routes with community 65000:10.

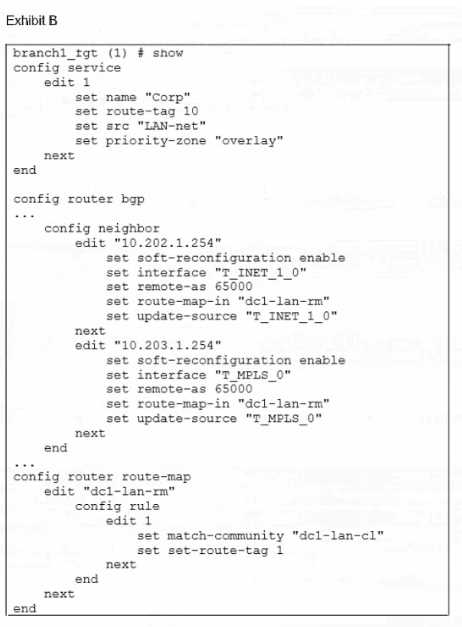

Exhibit B shows the SD-WAN rule configuration, the BGP neighbor configuration, and the route map configuration.

The administrator wants to steer corporate traffic using routes tags in the SD-WAN rule ID 1.

However, the administrator observes that the corporate traffic does not match the SD-WAN rule ID 1.

Based on the exhibits, which configuration change is required to fix issue?

  1. In the dc1-lan-rm route map configuration, set set-route-tag to 10.
  2. In SD-WAN rule ID 1, change the destination to use ISDB entries.
  3. In the dc1-lan-rm route map configuration, unset match-community.
  4. In the BGP neighbor configuration, apply the route map dc1-lan-rm in the outbound direction.

Answer(s): A
