Free HP HPE6-A69 Exam Braindumps (page: 2)

96.4% Passing Rate DOWNLOAD PDF EXAM
60 Questions & Answers
Page 2 of 16

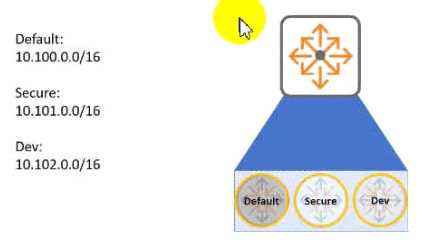

Refer to the exhibit.



Aruba CX 6300 switch has routes in three different VRFs as per the example above. The user needs to leak routes between VRF Secure and VRF Dev. and also between VRF default and VRF Dev The customer Is not able to establish routing between directly connected networks 10.100.50.0/24 and 10.102.26.0/24 Which statement is true regarding the routing troubleshooting?

  1. Multi-protocol BGP routing needs to be defined for route leaking
  2. Route Distinguisher needs to be set to 1 for default VRF.
  3. Route leaking is supported between non-default VRFs only
  4. Route leaking between default and non-default VRFs is supported with Aruba CX 8400.

Answer(s): A



You have created an OSPF neighbor configuration with ArubaOS-CX 8320 VSX and a third-party switch The OSPF peering falls. In the event togs you see the following entries. 2020-10-28:03:14 20.371489|hpe-routlng|LOG_WARN|AMM|1/5jOSPFV2|OSPFV2iOSPF 268698624 Packet received with unexpected authentication type 2020-10-28:03:14.20.371503|hpe- routing|LOG_WARN|AMM|1/5|OSPFV2|OSPFV2|Expected authentication type = 0 Which statement is true about the above events?

  1. The ArubaOS-CX switch requires plain-text authentication with OSPF.
  2. The third-party switch should be configured with MD5 authentication
  3. The ArubaOS-CX switch does not expect authentication with OSPF.
  4. The third-party switch should be configured with key chain authentication

Answer(s): D

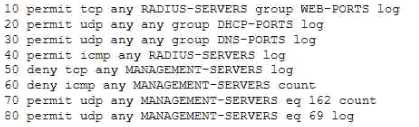

When applying me following access-Iist to an ArubaOS-CX 6300 switch:



How does this ACL behave on the selected switch? (Select two.)

  1. The mp traffic to MANAGEMENT-SERVERS group is logged to me event logs
  2. The tftp traffic to MANAGEMENT-SERVERS group is not logged to the event logs.
  3. The snmp-trap traffic to MANAGEMENT-SERVERS is logged to the event togs.
  4. The denied tcp traffic to the MANAGEMENT-SERVERS group is logged to event logs.
  5. The denied tcp traffic to the MANAGEMENT-SERVERS group is not logged to event logs

Answer(s): B,E

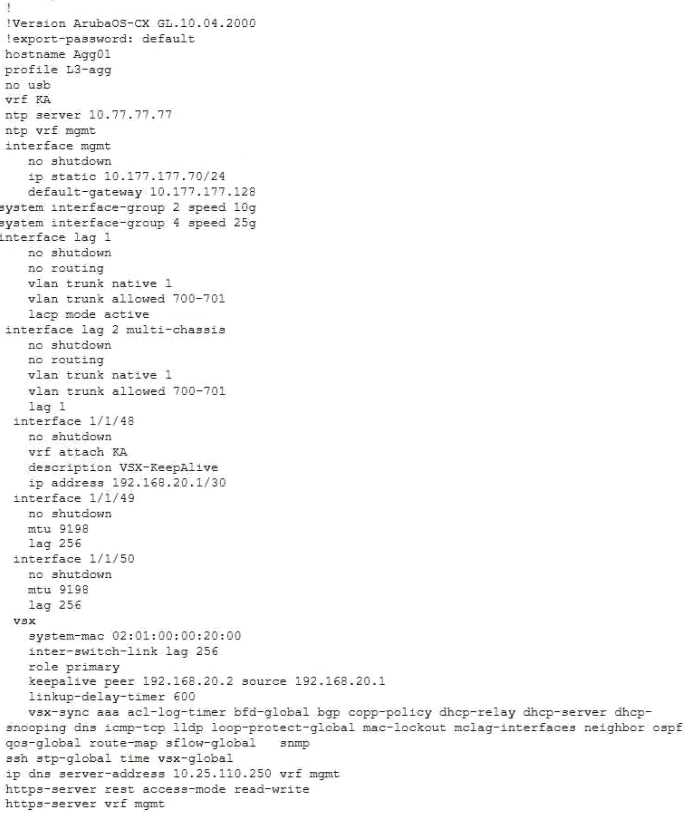

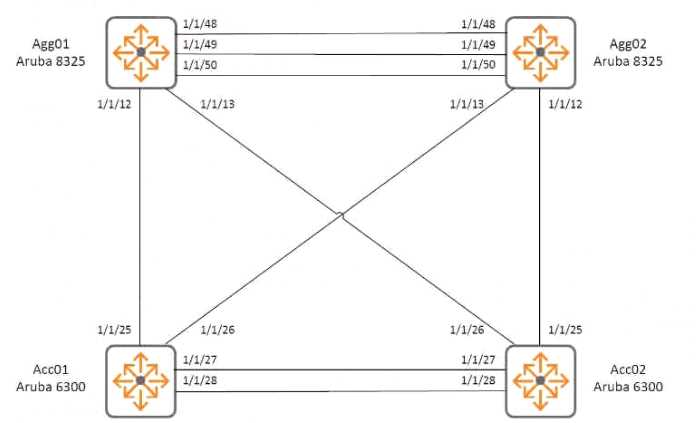

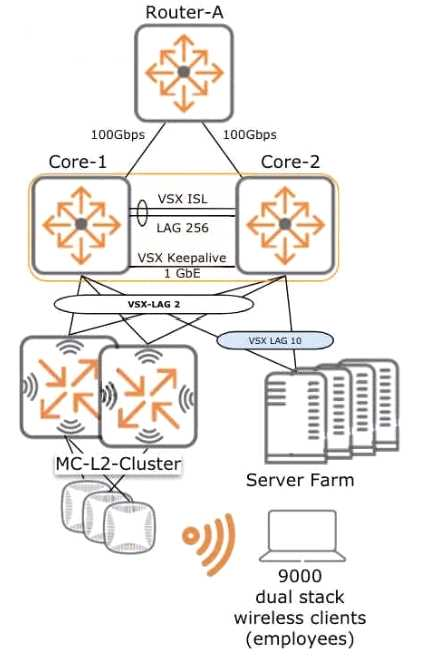

The customer is considering Implemented the following VSX configuration that will host an Aruba mobility cluster servicing 9000 dual stack employee devices. The client's default gateways will be hosted on the VSX stack. The customer is seeking advice about how to ensure ArubaOS-CX VSX best practices have been applied.





What advice can you offer the customer? (Select two)

  1. The ISL Bandwidth should be upgraded
  2. Agg-1 and Agg-2's hardware forwarding table profile should be changed to "L3-agg''.
  3. The -system-mac' of Agg-1 should be changed to an unused address from the unicast private address range
  4. The vsx linkup-delay timer is unnecessarily high; it should be reduced to prevent excessive delay of packet forwarding when a VSX peer joins an existing master.
  5. The Keepalive interface should be changed to interface LAG2 so there is redundancy through the mobility cluster.
  6. The keepalive subnet is misconfigured, it has an inappropriate address on Agg-1.

Answer(s): B,F
