Free HPE6-A73 Exam Braindumps (page: 11)

Page 10 of 33
PDF with 127 Questions

Which protocol does NetEdit use to discover devices in a subnet during the discovery process?

  1. LLDP
  2. ARP
  3. DHCP
  4. ICMP

Answer(s): A

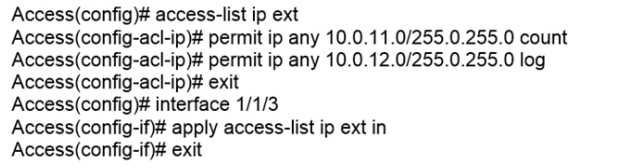

Examine the following AOS-CX switch configuration:



Which statement correctly describes what is allowed for traffic entering interface 1/1/3?

  1. IP traffic from 10.1.11.0/24 is allowed to access 10.1.110.0/24
  2. IP traffic from 10.0.11.0/24 is allowed to access 10.1.12.0/24
  3. Traffic from 10.0.12.0/24 will generate a log record when accessing 10.0.11.0/24
  4. IP traffic from 10.1.12.0/24 is allowed to access 172.0.1.0/23

Answer(s): B

Explanation:

People seem to be confused by inverted mask/wildcard masks. They would be correct for Cisco switches, but AOS-CX does NOT use wildcard masks; "AOX-CX switches do not support wildcard masks - only prefixes or subnet masks - when created ACEs."

Cisco: 255.0.255.0 = xx.123.xx.123
AOS-CX: 255.0.255.0 = 123.xx.123.xx



An administrator creates an ACL rule with both the "count" and "log" option enabled.
What is correct about the action taken by an AOS-CX switch when there is a match on this rule?

  1. By default, a summarized log is created every minute with a count of the number of matches
  2. Logging will not include certificate and TLS events, but counting will
  3. The "count" and "log" options are processed by the AOS-CX switch's hardware ASIC
  4. The total in the "log" record and the count could contain different rule matching statistics

Answer(s): D

Explanation:

From the "AOS-CX 10.08 ACLs and Classifier Policies Guide" : "You may see a minor discrepancy between the ACL logging statistics and the hit counts statistics due to the time required to record the log message."



An administrator is defining a VSX LAG on a pair of AOS-CX switches that are defined as primary and secondary. The VSX LAG fails to establish successfully with a remote switch; however, after verification, the remote switch is configured correctly. The administrator narrows down the problem to the configuration on the AOS-CX switches.
What would cause this problem?

  1. Local optimization was not enabled on the VSX LAG
  2. The VSX LAG hash does not match the remote peer
  3. The VSX LAG interfaces are in layer-3 mode
  4. LACP was enabled in active mode on the VSX LAG

Answer(s): B
