HP HPE7-A01 Exam Questions
Aruba Certified Campus Access Professional (Page 2 )

Updated On: 21-Feb-2026
Page 2 of 25
PDF with 139 Questions

Which feature supported by SNMPv3 provides an advantage over SNMPv2c?

  1. Transport mapping
  2. Community strings
  3. GetBulk
  4. Encryption

Answer(s): D

Explanation:

Encryption is a feature supported by SNMPv3 that provides an advantage over SNMPv2c. Encryption protects the confidentiality and integrity of SNMP messages by encrypting them with a secret key. SNMPv2c does not support encryption and relies on community strings for authentication and authorization, which are transmitted in clear text and can be easily intercepted or spoofed. Transport mapping, community strings, and GetBulk are features that are common to both SNMPv2c and SNMPv3.


Reference:

https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos- solutions/snmp/snmp.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos- solutions/snmp/snmpv3.htm



You are doing tests in your lab and with the following equipment specifications · AP1 has a radio that generates a 10 dBm signal
· AP2 has a radio that generates a 11 dBm signal
· AP1 has an antenna with a gain of 9 dBi
· AP2 has an antenna with a gain of 12 dBi.
· The antenna cable for AP1 has a 2 dB loss
· The antenna cable for AP2 has a 3 dB loss
What would be the calculated Equivalent Isotropic Radiated Power (EIRP) for APT?

  1. 26 dBm
  2. 30 dBm
  3. 17 dBm
  4. -12 dBm

Answer(s): C

Explanation:

The calculated Equivalent Isotropic Radiated Power (EIRP) for AP1 is 17 dBm. EIRP is the measured radiated power of an antenna in a specific direction. It is equal to the input power to the antenna multiplied by the gain of the antenna. It can also take into account the losses in transmission line, connectors, and other components. The formula for EIRP is:
EIRP = P + G - L
where P is the output power of the radio, G is the gain of the antenna, and L is the loss of the cable and connectors.
For AP1, we have:
P = 10 dBm G = 9 dBi L = 2 dB
Therefore,
EIRP = 10 + 9 - 2 EIRP = 17 dBm



With Aruba CX 6300. how do you configure ip address 10 10 10 1 for the interface in default state for interface 1/1/1?

  1. int 1/1/1. switching, ip address 10 10 10
  2. int 1/1/1. no switching, ip address 10 10 10.1/24
  3. int 1/1/1. ip address 10.10.10.1/24
  4. int 1/1/1. routing, ip address 10.10.10

Answer(s): B

Explanation:

To configure an IP address for an interface in default state for interface 1/1/1 on Aruba CX 6300 switch, you need to disable switching on the interface first with the command no switching. Then you can assign an IP address with the command ip address. The other options are incorrect because they either do not disable switching or use invalid keywords such as switching or routing.


Reference:

https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch01.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch02.html

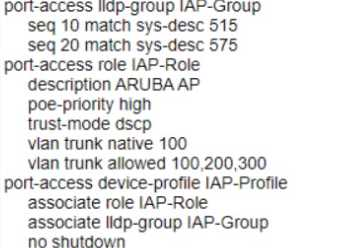

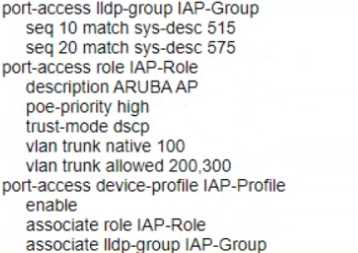

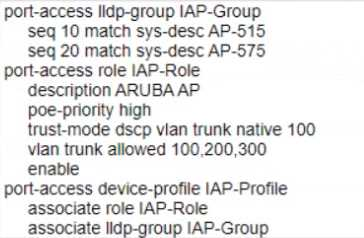

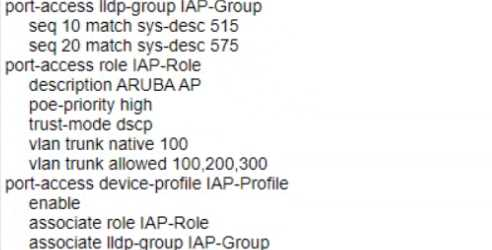

A system engineer needs to preconfigure several Aruba CX 6300 switches that will be sent to a remote office An untrained local field technician will do the rollout of the switches and the mounting of several AP-515s and AP-575S. Cables running to theAPs are not labeled. The VLANs are already preconfigured to VLAN 100 (mgmt), VLAN 200 (clients), and VLAN 300 (guests) What is the correct configuration to ensure that APs will work properly? A)



B)



C)



D)

  1. Option A
  2. Option B
  3. Option C
  4. Option D

Answer(s): C

Explanation:

Option C is the correct configuration to ensure that APs will work properly. It uses the ap command to configure a port profile for APs with VLAN 100 as the native VLAN and VLAN 200 and 300 as tagged VLANs. It also enables LLDP on the ports to discover the APs and assign them to the port profile automatically. The other options are incorrect because they either do not use the ap command, do not enable LLDP, or do not configure the VLANs correctly.


Reference:

https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch03.html



DRAG DROP (Drag and Drop is not supported)
Match the solution components of NetConductor (Options may be used more than once or not at all.)

  1. See Explanation section for answer.

Answer(s): A

Explanation:

Client Insights matches with Built in , AI powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML based classification models to eliminate network bling spots
Client Insights is a solution component of NetConductor that provides built-in, AI-powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML-based classification models to eliminate network blind spots. Client Insights uses machine learning to automatically detect, identify, and classify devices on the network, such as IoT devices, BYOD devices, or rogue devices. Client Insights also provides behavioral analytics and anomaly detection to monitor device performance and security posture. Client Insights helps network administrators gain visibility into the device landscape, enforce granular access policies, and troubleshoot issues faster.


Reference:

https://www.arubanetworks.com/products/network-management- operations/central/netconductor/
https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Cloud Auth matches with Enables fictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores

Cloud Auth is a solution component of NetConductor that enables frictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores. Cloud Auth is a cloud-native network access control (NAC) solution that is delivered via Aruba Central. Cloud Auth allows network administrators to define user and device groups, assign roles and policies, and enforce access control across wired and wireless networks. Cloud Auth supports MAC authentication for devices that do not support 802.1X, as well as integrations with cloud identity providers such as Azure AD, Google Workspace, Okta, etc.

https://www.arubanetworks.com/products/network-management- operations/central/netconductor/
https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

The Fabric Wizard matches with Simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways
The Fabric Wizard is a solution component of NetConductor that simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways. The Fabric Wizard is a tool that allows network administrators to design, deploy, and manage overlay networks using VXLAN and EVPN protocols. The Fabric Wizard provides a graphical representation of the network topology, devices, and links, and allows users to drag and drop virtual components such as VRFs, VLANs, and subnets. The Fabric Wizard also generates the configuration commands for each device based on the user input and pushes them to the switches and gateways via Aruba Central.

https://www.arubanetworks.com/products/network-management- operations/central/netconductor/
https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Policy Manager matches with Defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network

Policy Manager is a solution component of NetConductor that defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network. Policy Manager is a tool that allows network administrators to create and manage network policies based on user and device identities, roles, and contexts. Policy Manager uses Group Policy Identifier (GPID) to carry policy information in traffic for in-line enforcement. Policy Manager also integrates with Cloud Auth, ClearPass, or third-party solutions to provide flexible network access control.

https://www.arubanetworks.com/products/network-management- operations/central/netconductor/
https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf
