Huawei H12-321 Exam Questions
Huawei Certified Network Professional - Wireless Local Area Network- Constructing Enterprise WLAN Architecture (Page 3 )

Updated On: 28-Feb-2026
Page 3 of 109
PDF with 536 Questions

On a WLAN with the WIDS function enabled, which of the following devices will NOT trigger rogue device alarms after they are identified as rogue devices? (Multiple Choice)

  1. AP
  2. Ad-hoc
  3. Wireless bridge
  4. STA

Answer(s): B,C,D



Engineers of a large enterprise configure the VLAN Pool function when deploying the WLAN. Which of the following options may be the reasons for configuring the function? (Multiple Choice)

  1. There are a large number of IP address requests in some areas.
  2. Users request to obtain fixed IP addresses.
  3. To reduce the broadcast domain to limit the number of broadcast packets, thereby to improve the network performance.
  4. Break the limit that one SSID can only correspond to one VLAN.

Answer(s): A,C,D



On a WLAN that uses the Agile Controller as the admission control server, which of the following is NOT the cause of 802.lx authentication failures?

  1. The key used by the Agile Controller to connect to the device is different from the key configured on the device.
  2. The accounting interval is not configured.
  3. Port 1813 is used on the server.
  4. The matched authorization rule defines the action "deny".

Answer(s): B



Which of the following statements about the second Fresnel zone are TRUE? (Multiple Choice)

  1. If the RF signal and primary signal have the same frequency and different phases and the two signals intersect, the RF signal weakens or even offsets the primary signal. Because reflection is one of the factors causing interference to the primary signal, impact of the second Fresnel zone on signals must be considered during evaluation of point-to-point communication links.
  2. If signals in the second Fresnel zone are reflected to the receive end due to the antenna height and terrain, the link quality may degrade.
  3. Impact of the second Fresnel zone should be considered during network planning and troubleshooting, especially in flat and dry environments (such as deserts).
  4. The second Fresnel zone is surrounded by the first Fresnel zone.

Answer(s): A,B,C

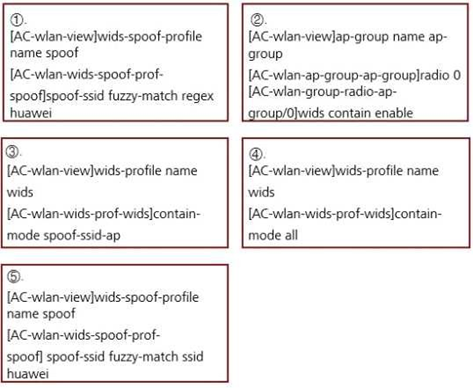

On a WLAN network, AP group ap-group1 and WIDS profile wids1 are configured. Which of the following is the correct procedure to configure rogue device countermeasure against an AP that forges SSID huawei?

  1. ® > © > ©
  2. © > © > ®
  3. ® > © > ®
  4. © > © > ©

Answer(s): C
