Free H31-161 Exam Braindumps
HCIE-Carrier IP (Written) Questions 11–15 (page: 4)

Updated On: 10-Feb-2026
Page 4 of 37
PDF with 180 Questions

Exhibit:

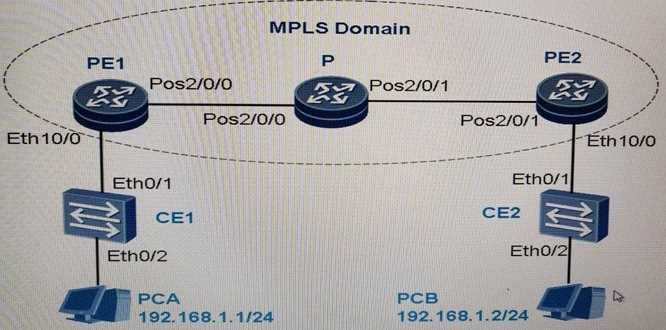

As shown in the figure, virtual private LAN service (VPLS) is enabled on routers PE 1 and PE 2.CEs are connected to PEs through QinQ and PC A and PC B are connected to the two CEs. The two PCs belong to the same VPN and can communicate with each other properly.
Which of the following statements about the communication process when you ping PC B from PC A are true?

  1. PE 1 receives packets with a VLAN tag from CE 1 and adds a VLAN tag to these packets.
  2. If the penultimate hop popping (PHP) feature of MPLS is enabled on PEs, a packet received by PE 2 from a P router has two VLAN tags one MPLS label.
  3. PE 1 add two MPLS labels to a packet before sending the packet to a router.
  4. A packet received by CE 2 from PE 2 has two VLAN tags CE 2 removed the outer tab and forwards the packets to PC B based on the inner tag

Answer(s): A,B,C



Exhibit:

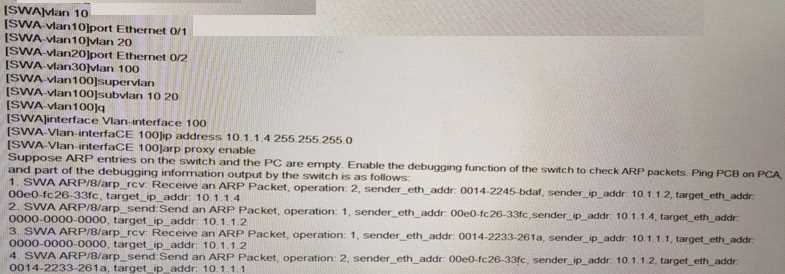

As shown in the figure, Super VLAN is enabled on SWA (a LAN switch). The Super VLAN configuration is as follows:



Which of the following specifics the time order in which the preceding debugging information is generated?

  1. 3--4--1--2
  2. 1--2--3--4
  3. 1--4--2--3
  4. 3--2--1--4

Answer(s): D



Configure VRFs and relevant policies on a PE as follows:



If a route is imported to the routing table of VRF 1, which VRF can the route match?

  1. vrf4
  2. vrf3
  3. vrf2

Answer(s): C



Which statement about the configuration of route target (RT) and route distinguisher (RD) is true?

  1. If routes need to exchange between two VPNs, the value of import RT of one VPN must be partially the same as Export RT of the other VPN.
  2. RD and RT of a VPN instance cannot be the same as those of another VPN instance on the same
    PE.
  3. If routers need to exchanged two VPNs, the value of import RT of one of the same as that of RT of the other VPN.
  4. Two instances of a VPN share an RT.

Answer(s): A



Which statement about the Hub s MPLS VPN networking is false?

  1. The Hub PE can receive the VPN_IPv4 routes advertised by all Spoke PEs.
  2. When an MP-IBGB neighbor relationship is established between two spoke PEs, the value of the Import VPN Target attribute of one Spoke PE can be the same as tat of the Export VPN Target attribute of the other Spoke PE.
  3. The Hub PE advertises the routes learned from one Spoke PE to other Spoke PEs. Therefore, Spoke sites can access other through the Hub site.
  4. All Spoke PEs can receive the VPN-IPv4 routes advertised by the Hub PE.

Answer(s): B



  PDF
Viewing page 4 of 37
Viewing questions 16 - 20 out of 180 questions
