Free JN0-636 Exam Braindumps (page: 5)

Page 4 of 29
PDF with 115 Questions

Which statement is true about persistent NAT types?

  1. The target-host-port parameter cannot be used with IPv4 addresses in NAT46.
  2. The target-host parameter cannot be used with IPv6 addressee in NAT64.
  3. The target-host parameter cannot be used with IPv4 addresses in NAT46
  4. The target-host-port parameter cannot be used with IPv6 addresses in NAT64

Answer(s): D

Explanation:

NAT (Network Address Translation) is a method to map one IP address space into another by modifying network address information in the IP header of packets while they are in transit across a traffic routing device. There are different types of NAT, one of them is the persistent NAT which is a type of NAT that allows you to map the same internal IP address to the same external IP address each time a host initiates a connection.



You are deploying a virtualization solution with the security devices in your network Each SRX Series device must support at least 100 virtualized instances and each virtualized instance must have its own discrete administrative domain.
In this scenario, which solution would you choose?

  1. VRF instances
  2. virtual router instances
  3. logical systems
  4. tenant systems

Answer(s): C

Explanation:

A logical system is a virtualization feature in SRX Series devices that allows you to create multiple, isolated virtual routers within a single physical device. Each logical system has its own routing table, firewall policies, and interfaces, and it can be managed and configured independently of the other logical systems. Logical systems are an effective way to isolate different administrative domains and to support a large number of virtualized instances.

According to the Juniper documentation, the solution that would best meet the requirements of deploying a virtualization solution with the security devices in the network is logical systems. Logical systems are a feature that allows the SRX Series device to be partitioned into multiple logical devices, each with its own discrete administrative domain, routing table, firewall policies, VPNs, and interfaces. Each logical system can support up to 100 virtualized instances, depending on the SRX Series model and the available resources.
The following solutions are not suitable or incorrect for this scenario:
VRF instances: VRF instances are a type of routing instance that allows the SRX Series device to maintain multiple routing tables for different VPNs or customers. However, VRF instances do not provide separate administrative domains, firewall policies, or interfaces for each instance. Virtual router instances: Virtual router instances are a type of routing instance that allows the SRX Series device to create multiple logical routers, each with its own routing table and interfaces. However, virtual router instances do not provide separate administrative domains or firewall policies for each instance.
Tenant systems: Tenant systems are a feature that allows the SRX Series device to create multiple logical devices, each with its own discrete administrative domain, routing table, firewall policies, VPNs, and interfaces. However, tenant systems are only supported on the SRX1500, SRX4100, and SRX4200 devices, and each tenant system can only support up to 10 virtualized instances.


Reference:

1: Understanding Logical Systems 2: SRX Series Logical Systems Feature Guide 3: vrf (Routing Instances) : [virtual-router (Routing Instances)] : [Understanding Tenant Systems]

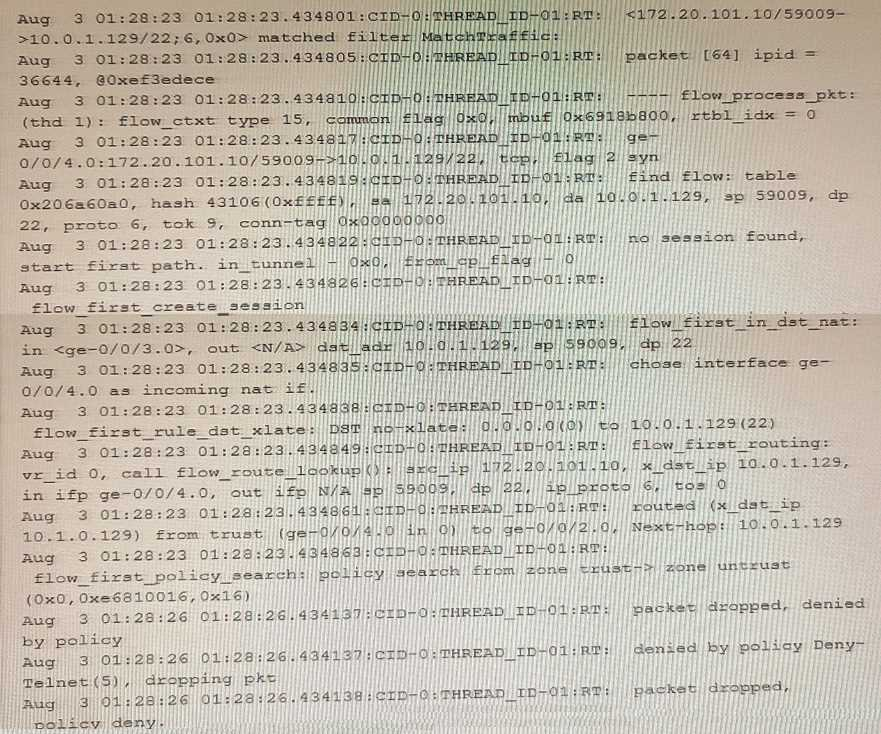

Exhibit



Which two statements are correct about the output shown in the exhibit? (Choose two.)

  1. The packet is processed as host inbound traffic.
  2. The packet matches the default security policy.
  3. The packet matches a configured security policy.
  4. The packet is processed in the first path packet flow.

Answer(s): A,D

Explanation:

The packet is processed as host inbound traffic because the traceoptions output shows that the destination IP address 10.10.10.1 belongs to the SRX device itself, which is configured with the ge- 0/0/1.0 interface. The traceoptions output also shows the flag flow_host_inbound, which indicates that the packet is destined to the device.
The packet matches the default security policy because the traceoptions output shows that the policy name is default-deny, which is the implicit system-default security policy that denies all packets. The traceoptions output also shows the flag flow_policy_deny, which indicates that the packet is denied by the policy.


Reference:

traceoptions (Security NAT) | Junos OS | Juniper Networks [SRX] How to interpret Flow TraceOptions output for NAT troubleshooting Default Security Policies | Junos OS | Juniper Networks



Your company wants to use the Juniper Seclntel feeds to block access to known command and control servers, but they do not want to use Security Director to manage the feeds.
Which two Juniper devices work in this situation? (Choose two)

  1. EX Series devices
  2. MX Series devices
  3. SRX Series devices
  4. QFX Series devices

Answer(s): B,C

Explanation:

Juniper MX and SRX series devices support the integration of Seclntel feeds, which provide information about known command and control servers, for the purpose of blocking access to them. These devices can be configured to use the Seclntel feeds without the need for Security Director to manage the feeds.
EX series and QFX series devices are not capable of working in this situation, as they do not support the integration of Seclntel feeds.
According to the Juniper documentation, the two Juniper devices that work in this situation are MX Series devices and SRX Series devices. These devices can use the Juniper SecIntel feeds to block access to known command and control servers without using Security Director to manage the feeds. The Juniper SecIntel feeds are curated and verified threat intelligence data that are continuously collected from Juniper ATP Cloud, Juniper Threat Labs, and other sources. The SecIntel feeds include command and control IPs, URLs, certificate hashes, and domains that are used by attackers to control malware or maintain their connection to the network.
The MX Series devices and the SRX Series devices can subscribe to the SecIntel feeds by using the following steps:
Configure the SecIntel service on the device by specifying the SecIntel URL, the SecIntel policy, and the SecIntel license.
Configure the SecIntel policy on the device by specifying the SecIntel feeds, the SecIntel actions, and the SecIntel logging.
Apply the SecIntel policy to the security zones or the firewall policies on the device by using the secintel-policy option.
Once the SecIntel service is configured and applied, the MX Series devices and the SRX Series devices will receive the SecIntel feeds from Juniper ATP Cloud and use them to block the traffic from or to the command and control servers. The SecIntel service will also send the SecIntel logs to Juniper ATP Cloud or a third-party SIEM solution for further analysis and reporting. The following devices are not suitable or incorrect for this situation:
EX Series devices: EX Series devices are Ethernet switches that can integrate with SecIntel to block infected hosts at the switch port. However, they cannot use the SecIntel feeds to block command and control servers, as they do not support the SecIntel service or policy. QFX Series devices: QFX Series devices are Ethernet switches that can integrate with SecIntel to block infected hosts at the switch port. However, they cannot use the SecIntel feeds to block command and control servers, as they do not support the SecIntel service or policy.


Reference:

1: SecIntel Threat Intelligence 2: Configuring SecIntel Service 3: Configuring SecIntel Policy 4: Applying SecIntel Policy : [SecIntel Logging] : [SecIntel Integration with EX Series Switches] :
[SecIntel Integration with QFX Series Switches]
