Microsoft AI-103 Exam Prep
Developing AI Apps and Agents on Azure (Page 5 )

Updated On: 3-Oct-2026
Page 5 of 39
PDF with 187 Questions
View Related Case Study

You have a Microsoft Foundry project that serves a high-volume chat app.
Most requests are simple FAQs, but some require advanced reasoning.
You need to reduce costs and latency for common queries, without degrading the quality of the responses to complex questions.
What should you do?

  1. Route all the requests to a smaller model.
  2. Use a model cascade that routes the requests to different models.
  3. Increase the value of the max_tokens parameter for all the requests.
  4. Route all the requests to the most capable model.

Answer(s): B

Explanation:

One should absolutely use a model cascade to route requests to different models based on complexity. This architectural pattern is highly effective for high-volume chat applications because it directly addresses the trade-off between operational cost, API latency, and response quality.
Using a model cascade router ensures that your high-volume Microsoft Foundry application scales efficiently by reserving expensive computational power exclusively for queries that actually require advanced cognitive processing.
Note:
1. Analyze Request Complexity
Implement a lightweight intent classifier or routing layer at the entry point of your Microsoft Foundry project.
This router quickly inspects incoming user prompts using basic heuristic keyword matching, semantic embeddings, or a highly optimized, fast model (like Phi-3 or GPT-4o-mini) to categorize the query as either a
"Simple FAQ" or a "Complex Reasoning" request.
2. Route to the Optimal TierTier 1 (Fast & Cheap):
Route standard, predictable FAQ requests to a smaller, cost-effective model or a local cache/vector database lookup. This keeps latency in milliseconds and drastically lowers token costs.
Tier 2 (Advanced Reasoning): Route multi-step logic, coding, or highly contextual queries to a frontier model
(like GPT-4o).
3. Implement Fallback LogicDesign the cascade to be dynamic. If the smaller Tier 1 model generates a response with low confidence, or if the user asks a follow-up question that invalidates the simple FAQ status,
seamlessly upgrade the conversation loop to the Tier 2 model.


Reference:

https://medium.com/@sujathamudadla1213/what-is-the-primary-purpose-of-a-model-cascade-in-machine-lear ning-0b145a7bc6e2



View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have a Microsoft Foundry project that contains an internal Q&A agent.
Users report the following issues when they ask the agent questions:
▪ An increase in the following response: “No relevant information found”
▪ Periodic HTTP 429 rate limit exceeded errors during peak hours
You need to identify whether each issue is caused by model unavailability, resource limits, or inference failures.
What should you do? To answer, select the appropriate options in the answer area.
Note: Each correct selection is worth one point.

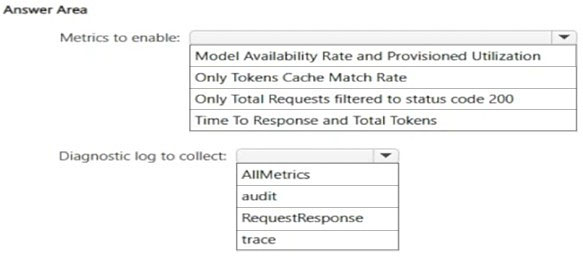

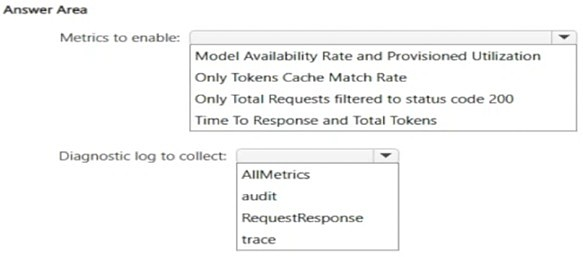

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

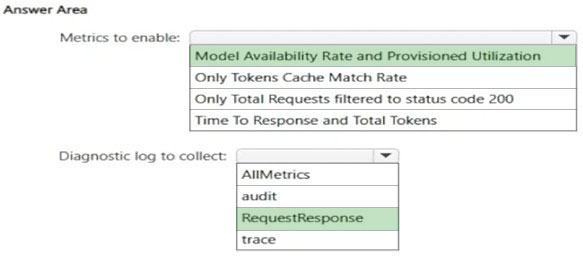

Box 1: Model Availability rate and Provisioned Utilization.
Metrics to enable
To diagnose these issues, the Model Availability rate and Provisioned Utilization metrics are needed.
Problem 1 ("No relevant information found"): This points to an inference failure (RAG hallucination or retrieval gap), which is often caused by the model hallucinating when it is missing contextual grounding.
Problem 2 (HTTP 429 rate limit exceeded): This indicates resource limits. Monitoring provisioned utilization helps identify if your allocated capacity is simply maxing out during peak hours.
Box 2: RequestResponse
Diagnostic log to collect
To isolate whether your issues are caused by model unavailability, resource limits, or inference failures, you need to collect and analyze the RequestResponse diagnostic log category (also referred to as
RequestResponseLogs).
While your enabled metrics provide high-level context (e.g., Model Availability highlights backend service drops and Provisioned Utilization highlights capacity strain), they do not reveal per-request details. The
RequestResponse log records the exact HTTP status codes, error codes, and backend latency for every transaction.


Reference:

https://learn.microsoft.com/en-us/azure/foundry/foundry-models/how-to/monitor-models



View Related Case Study

You have a Microsoft Foundry project that contains a high-traffic agent.
After a recent update, operational costs increase significantly.
Monitoring confirms that the volume of user traffic to the agent remains unchanged.
You suspect that changes to the request or response characteristics are causing the increase. You need to identify whether the additional costs are driven by the model input size, the model output size, or expanded tool usage.
Which observability capability should you use?

  1. latency
  2. evaluation metrics
  3. run success rate
  4. token usage

Answer(s): D

Explanation:

To identify whether model input, model output, or expanded tool usage is driving the cost spike, you should focus on token usage.
Granular tracking of token usage breaks down the costs directly:
Input vs. Output Tokens: Tracing token usage isolates whether the user prompt (input) has grown or if the model is generating longer, more expensive responses (output).
Tool Calling: Expanded tool usage consumes extra tokens each time the agent schema processes an execution loop, which will clearly reflect as inflated token counts.


Reference:

https://www.mindstudio.ai/blog/subtraction-principle-agent-harness-optimization



View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have a Microsoft Foundry project that contains an agent.
The agent uses tools to retrieve internal content and call external APIs. The agent is configured to let the model decide when to call the tools.
You need to publish the agent for a compliance workflow. The solution must meet the following requirements:
-▪ Each workflow run must include a retrieval step before generating a response.
-▪ Tool calls must authenticate by using the published agent’s own identity.
-▪ Tool access must use an identity isolated from other project resources.
▪ Tool access must use support audit tracing.
What should you do? To answer, select the appropriate options in the answer area.
Note: Each correct selection is worth one point.

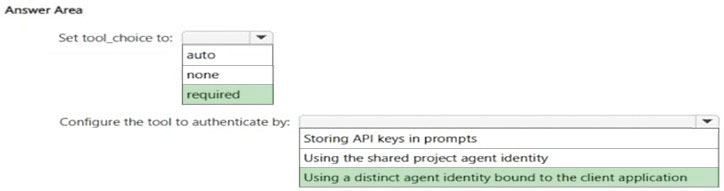

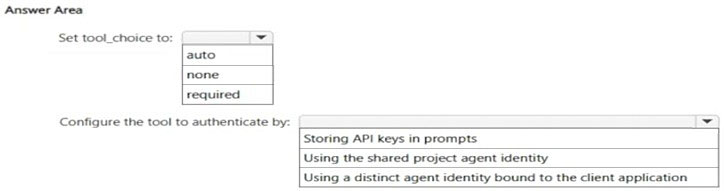

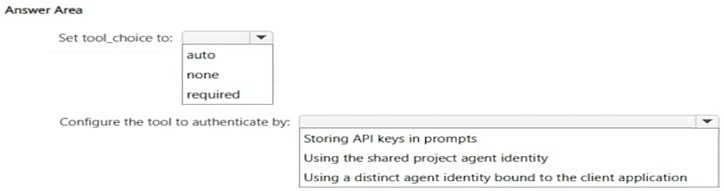

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: required
Tool choice
To comply with your strict workflow and compliance requirements, you set tool_choice parameter required.
Setting tool_choice to required mathematically forces the model to invoke at least one tool (your internal retrieval mechanism) during the turn before it can finalize its answer.
Incorrect
[Not auto]
Setting tool_choice to auto hands over absolute decision-making power to the underlying foundational model. If the model determines it already "knows" the answer from its training data, it can skip the retrieval step entirely.
Box 2: Using a distinct agent identity bound to the client application
Configure the tool to authenticate by
Restriction: Use Published Agent's Own Identity
Map the agent to a Microsoft Entra Agent Identity. This gives the published agent its own distinct service principal identity within Entra ID, ensuring it does not inherit or use user tokens or secondary administrative keys.
Restriction: Identity Isolated from Project Resources
Rather than sharing the default Microsoft Foundry project managed identity (project-mi), assign a unique
User-Assigned Managed Identity exclusively to this agent instance. Limit its role-based access control (RBAC)
scopes solely to the specific retrieval indexes and the target external API endpoints.


Reference:

https://learn.microsoft.com/en-us/azure/foundry/agents/concepts/tool-catalog



View Related Case Study

You have a Microsoft Foundry project named Project1 that contains the following:
▪ An OpenAPI tool that calls an external API
▪ A project connection named Connection1 that stores the API key of the external API
When an agent calls the OpenAPI tool, the API returns a 401 unauthorized error, and traces show that the API
key header is NOT being sent.
You need to ensure that the OpenAPI tool automatically includes the API key from Connection1 on all requests.
What should you do?

  1. Enable identity passthrough so that the tool uses the Microsoft Entra token of the caller.
  2. Add the API key header manually to the OpenAPI specification.
  3. Configure the tool to use the default connection of Project1.
  4. Connect the tool to Connection1.

Answer(s): D



  PDF
Viewing page 5 of 39
Viewing questions 21 - 25 out of 187 questions
