Microsoft AZ-120 Exam
Planning and Administering Microsoft Azure for SAP Workloads (Page 15 )

Updated On: 9-Feb-2026
Page 15 of 84
PDF with 412 Questions

HOTSPOT (Drag and Drop is not supported)

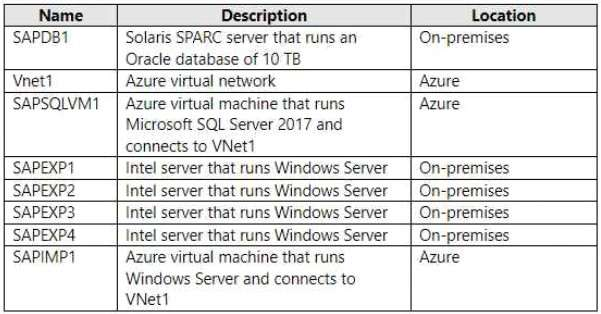

You have an on-premises SAP NetWeaver production landscape and an Azure subscription that contains the resources shown in the following table.




You have a 10-Gbps ExpressRoute circuit between the on-premises environment and VNet1.

You plan to migrate the landscape to Azure.

As part of the solution, you need to migrate the on-premises Oracle database to SAPSQLVM1. The solution must minimize how long it will take to complete the data migration.

What should you use? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

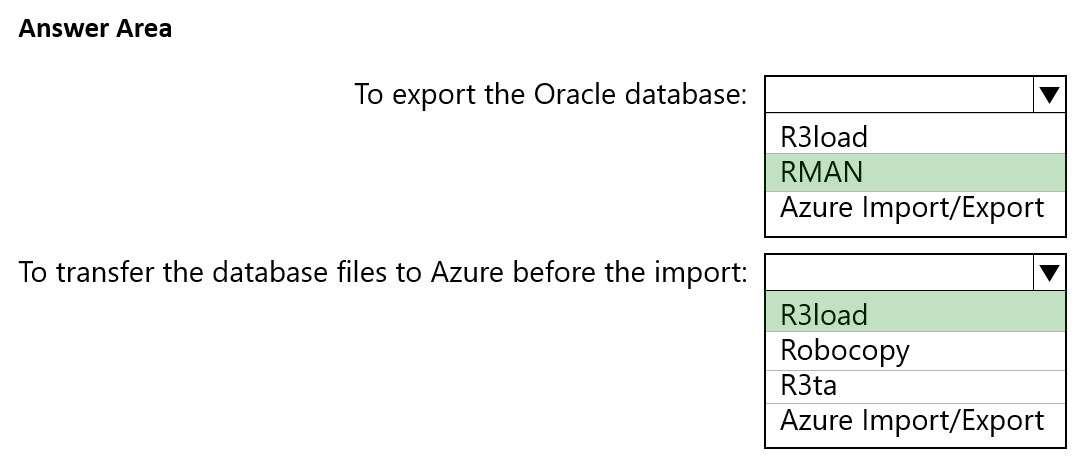

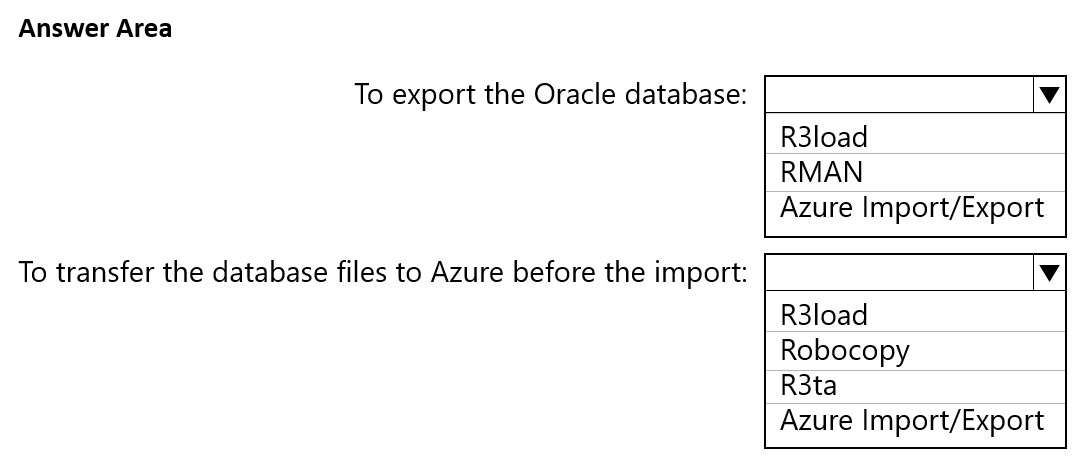

Hot Area:

  1. See Explanation for the Answer.

Answer(s): A

Explanation:



Box 1: RMAN
To export the Oracle database

Azure Virtual Machines Oracle DBMS deployment for SAP workload Scenario: huge data and data change volumes more than 5 TB, restore time crucial Customer has a huge database where backup and/or restore + recovery of a single database can't be accomplished in a timely fashion.

Usually customers are using RMAN, Azure Backup for Oracle and/or disk snap techniques in combination. In this variant, each relevant database file type is separated to different Oracle ASM disk groups.

Box 2: R3load
To transfer the database files to Azure before the import

Very Large Database Migration to Azure Recommendations & Guidance to Partners

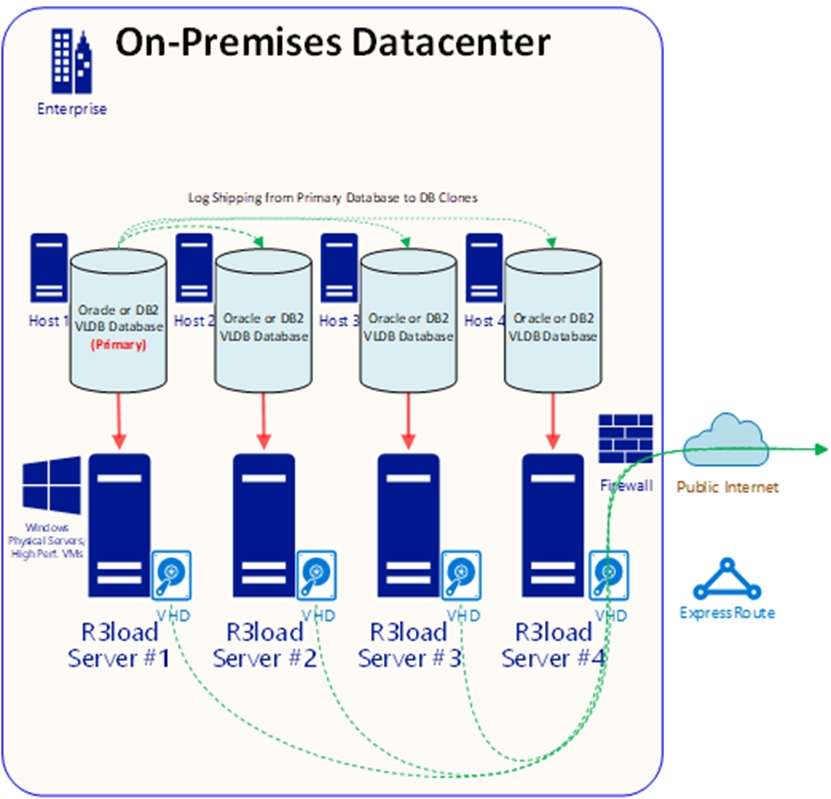

Diagram showing existing Production DB server log shipping to "clone" databases. Each DB server has one or more Intel R3load servers



Reference:

https://learn.microsoft.com/en-us/azure/sap/workloads/dbms-guide-oracle https://techcommunity.microsoft.com/t5/running-sap-applications-on-the/very-large-database-migration-to- azure-8211-recommendations/ba-p/368146



Your on-premises network contains the following:

A 1-Gbps internet connection

An SAP HANA 1.0 instance that has a 4-TB database

An SAP landscape that uses SUSE Linux Enterprise (SLES) 12

You have an Azure subscription that contains a virtual machine. The virtual machine is of the M64s SKU and runs SLES 15 and HANA 2.0.

You need to migrate the database to the virtual machine and upgrade the database to HANA 2.0. The solution must meet the following requirements:

The migration must be performed during a weekend.


The database can be offline during the migration.

Which migration method should you use?

  1. Azure Data Box
  2. HANA database backup and log shipping
  3. Azure Migrate
  4. HANA database export and import

Answer(s): D

Explanation:

SAP HANA Migration
Homogeneous System Copy
This involves moving or copying a SAP system to a new environment, given that:
The source system and target system use the same operating system and database.
The hardware architecture remains unchanged, or the target system is SAP-certified for homogeneous system copy.
You can use a variety of methods for homogeneous system copy:
*-> Using SAP migration tools for database export and import.
Using standard backup tools supported by the database to backup the database and recover it to the new location.
Using hardware-based migration tools to clone the database to the new location Virtual machine (VM) copying.
Heterogeneous System Copy
This involves moving or copying an SAP system to a new environment, given that:
The source system and target system use different operating systems and/or databases There may be a hardware architecture change
Incorrect:
* Azure Data Box
Azure Data Box is just for the data transfer, not for actually upgrading the system.
Azure Data Box is not needed in this scenario.
Azure Data Box is a physical data transfer device offered by Microsoft Azure. It is designed to help users securely move large volumes of data into and out of Azure. The device can store up to 80 TB and transfer up to 1 PB of data, and it comes in several different models, including Data Box, Data Box Disk, and Data Box Heavy. Data can be transferred using the device's high-speed network connections, and it also features security measures such as encryption and tracking.


Reference:

https://bluexp.netapp.com/blog/azure-anf-blg-sap-hana-migration-methods-and-considerations



You have an Azure subscription and an Enterprise Agreement (EA).

You plan to deploy an SAP on Azure production landscape that will contain the following virtual machines:

One M-series virtual machine with 128 cores

15 E-series virtual machines with a total of 300 cores

10 D-series virtual machines with a total of 160 cores


During the deployment of the E-series virtual machines, you receive the following error message.
Operation results in exceeding quota limits of Core.

You need to ensure you can complete the E-series virtual machine deployment. The solution must meet the

following requirements:

Maintain the performance of the SAP landscape.

Minimize administrative effort.

Minimize costs.

What should you do?

  1. Convert the subscription to Pay-As-You-Go (PAYG).
  2. Create a second subscription and split the virtual machines evenly between both subscriptions.
  3. Resize the D-series and E-series virtual machines.
  4. Request a quota increase for the Azure region.

Answer(s): D

Explanation:

Save costs with Azure Reserved VM Instances
Purchase restriction considerations
Reserved VM Instances are available for most VM sizes with some exceptions. Reservation discounts don't apply for the following VMs:
* Insufficient quota - A reservation that is scoped to a single subscription must have vCPU quota available in the subscription for the new RI. For example, if the target subscription has a quota limit of 10 vCPUs for D- Series, then you can't buy a reservation for 11 Standard_D1 instances. The quota check for reservations includes the VMs already deployed in the subscription. For example, if the subscription has a quota of 10 vCPUs for D-Series and has two standard_D1 instances deployed, then you can buy a reservation for 10 standard_D1 instances in this subscription. You can create *quote increase request* to resolve this issue.
* Etc.
Note: Increase regional vCPU quotas
You can request regional vCPU quota increases for all VMs in a given region. You can also request increases for VM-family vCPU quotas or spot vCPU quotas.


Reference:

https://learn.microsoft.com/en-us/azure/virtual-machines/prepay-reserved-vm-instances https://learn.microsoft.com/en-us/azure/quotas/regional-quota-requests



You plan to deploy an SAP production landscape in Azure.

You need to recommend an Azure support agreement for the deployment. The solution must meet the following requirements:

Receive support for moderate business impact events within four hours.

Comply with the SAP support agreement.

Minimize costs.

Which support level should you recommend?

  1. Basic
  2. Professional Direct
  3. Developer
  4. Standard

Answer(s): B

Explanation:

SAP workloads on Azure: planning and deployment checklist
Microsoft recommends either Professional Direct, Premier or Unified Support contract. Identify your escalation paths and contacts for support with Microsoft.
* Azure Support: Professional Direct (ProDirect)
The Azure ProDirect offering is most appropriate for mid-size to large companies with substantial business critical utilization of Microsoft Azure.
Purchase
$1,000/month
Fastest initial response of one hour or less for high-severity support requests Escalation management for priority issues
Pooled team of ProDirect Managers provide account managemen
Incorrect:
* Developer
Initial response time less than 8 hours.
* Azure Support: Standard
The Azure Standard offering is a good choice for small or mid-size companies with minimal business critical dependence on Microsoft Azure.
Purchase
$100/month
Ability to submit support issues 24x7
Fast initial response for support issues (less than an hour) Ability to set severity of issues


Reference:

https://learn.microsoft.com/en-us/azure/sap/workloads/deployment-checklist https://azure.microsoft.com/en-us/support/plans/standard/
https://azure.microsoft.com/en-us/support/plans/prodirect/



You have a deployment of SAP NetWeaver on Azure that contains a virtual machine named VM1.

You need to configure the Linux OS provider for Azure Monitor for SAP solutions on VM1.

What should you do first?

  1. Enable TLS 1.2 for telemetry data in transit in Azure Monitor for SAP solutions.
  2. Install performance co-pilot (PCP) on VM1.
  3. Enable Insights in Azure Monitor for SAP solutions.
  4. Install the node exporter on VM1.

Answer(s): D

Explanation:

Configure Linux provider for Azure Monitor for SAP solutions Prerequisites

An Azure subscription.
An existing Azure Monitor for SAP solutions resource.
*-> Install the node exporter latest version in each SAP host that you want to monitor, either BareMetal or Azure virtual machine (VM).
Node exporter uses the default port 9100 to expose the metrics. If you want to use a custom port, make sure to open the port in the firewall and use the same port while creating the provider.
Default port 9100 or custom port that will be configured for node exporter should be open and listening on the Linux host.


Reference:

https://learn.microsoft.com/en-us/azure/sap/monitor/provider-linux
