You have an SAP landscape on Azure that contains the virtual machines shown in the following table.You need to ensure that the Application Server role is available if a single Azure datacenter fails.What should you include in the solution?
Answer(s): B
For this question these are the correct answers:* Azure Application Gateway v2Application Gateway is available under a Standard_v2 SKU. Web Application Firewall (WAF) is available under a WAF_v2 SKU. The v2 SKU offers performance enhancements and adds support for critical new features likeautoscaling, zone redundancy, and support for static VIPs.Zone redundancy: An Application Gateway or WAF deployment can span multiple Availability Zones, removing the need to provision separate Application Gateway instances in each zone with a Traffic Manager. You can choose a single zone or multiple zones where Application Gateway instances are deployed, which makes it more resilient to zone failure. The backend pool for applications can be similarly distributed across availability zones.Zone redundancy is available only where Azure Zones are available.* Azure Load Balancer StandardFor the load balancers of the failover clusters of SAP Central Services and the DBMS layer, you need to use the Standard SKU Azure Load Balancer. The Basic Load Balancer won't work across zones.For this question these are the incorrect answers:* a local network gateway* Azure Active Directory (Azure AD) Application Proxy* Azure AD Application ProxyApplication Proxy is recommended for giving remote users access to internal resources. Application Proxy replaces the need for a VPN or reverse proxy for these remote access use cases.* Azure Application Gateway v1* Azure Basic Load BalancerThe Basic Load Balancer won't work across zones.* Azure Private Link* Azure Virtual WANAzure Virtual WAN is a networking service that brings many networking, security, and routing functionalities together to provide a single operational interface.Note:The DBMS also is a single point of contact in an SAP system. You need to protect it by using a high-availability solution. The following figure shows a SQL Server AlwaysOn high-availability solution in Azure, with Windows Server Failover Clustering and the Azure internal load balancer.
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/sap-high-availability-architecture- scenarios

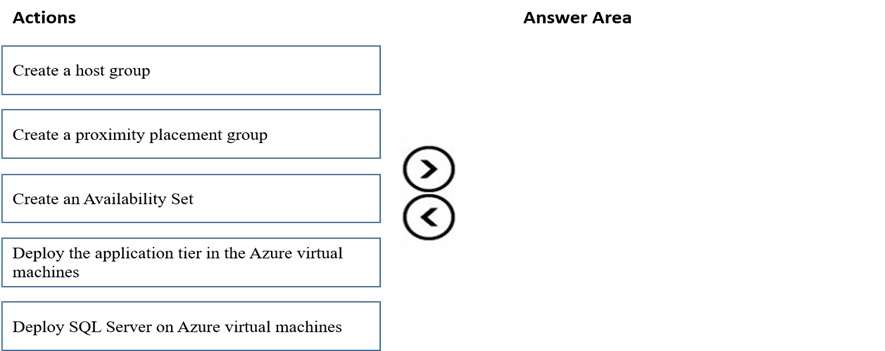

DRAG DROP (Drag and Drop is not supported)You have an Azure subscription.You plan to deploy a SAP NetWeaver landscape that will use SQL Server on Azure virtual machines. The solution must meet the following requirements:The SAP application and database tiers must reside in the same Azure zone.The application tier in the Azure virtual machines must belong to the same Availability Set.Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.NOTE: More than one order of answer choices is correct. You will receive credit for any of the correct orders you select.Select and Place:
Answer(s): A

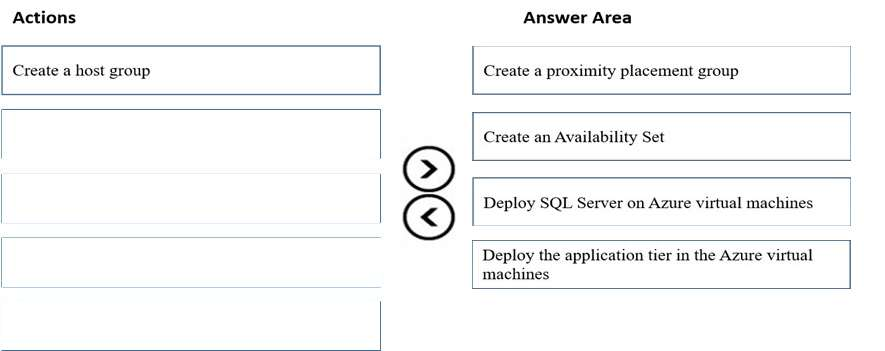

Step 1: Create a proximity placement groupA proximity placement group is a logical grouping of Azure resources within the same Azure data center inorder to reduce latency.Step 2: Create an Availability SetCreate an availability set that references the Azure proximity group. By adding the availability sets to proximity placement groups, the network latencies are considerably reduced, thereby improving the overall performance.Step 3: Deploy SQL Server on Azure Virtual machinesStep 4: Deploy the application tier in the Azure virtual machines Deploy the application layer VMs by referencing the availability set and the proximity placement group.
This question requires that you evaluate the underlined text to determine if it is correct.You have an SAP environment on Azure that uses Microsoft SQL Server as the RDBMS.You plan to migrate to an SAP HANA database.To calculate the amount of memory and disk space required for the database, you can use SAP Quick Sizer.Instructions: Review the underlined text. If it makes the statement correct, select "No change is needed". If the statement is incorrect, select the answer choice that makes the statement correct.
Answer(s): C
If you want to move an existing deployed system from another relational database management system (RDBMS) to HANA. SAP provides reports to run on your existing SAP system. If the database is moved to HANA, these reports check the data and calculate memory requirements for the HANA instance./SDF/HDB_SIZING is a standard Executable ABAP Report available within your SAP system (depending on your version and release level).ABAP code listing snippet for SAP ABAP Report /SDF/HDB_SIZING *&-------------------------------**& Report /SDF/HDB_SIZING // ZNEWHDB_SIZE*&*&-------------------------------**& Estimates the memory requirement in HANA of non-HANA databases * *& When run on HANA, size the database using real memory consumption *& values.*&-------------------------------***REPORT /SDF/HDB_SIZING LINE-SIZE 101 LINE-COUNT 90NO STANDARD PAGE HEADING.DATA: l_version TYPE c LENGTH 6 VALUE '54'. "54.2TYPES: ty_para(2) TYPE n,ty_top(3) TYPE n.TYPE-POOLS: abap.DATA: tabname TYPE tabname,subrc TYPE sy-subrc,p_prf TYPE abap_bool,....See full code listing within your SAP system using transactions such as SE80 and SE38 Incorrect Answers:A: When you're starting an implementation from scratch, SAP Quick Sizer will calculate memory requirements of the implementation of SAP software on top of HANA.
https://www.se80.co.uk/sapreports/-/-fs-/-fs-sdf-fs-hdb_sizing.htm https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/hana-sizing
You are deploying an SAP production landscape to Azure.Your company's chief information security officer (CISO) requires that the SAP deployment complies with ISO 27001.You need to generate a compliance report for ISO 27001.What should you use?
Answer(s): D
In the Azure Security Center regulatory compliance blade, you can get an overview of key portions of your compliance posture with respect to a set of supported standards. Currently supported standards are Azure CIS, PCI DSS 3.2, ISO 27001, and SOC TSP.Note: Azure Security Center is now called Microsoft Defender for Cloud.
https://azure.microsoft.com/en-us/blog/regulatory-compliance-dashboard-in-azure-security-center-now- available/

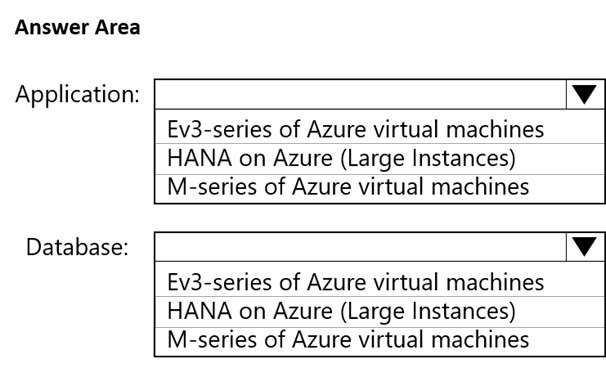

HOTSPOT (Drag and Drop is not supported)You have an on-premises deployment of SAP Business Suite on HANA that includes a CPU-intensive application tier and a 20-TB database tier.You plan to migrate to SAP HANA on Azure.You need to recommend a compute option to host the application and database tiers. The solution must minimize cost.What should you recommend for each tier? To answer, select the appropriate options in the answer area.NOTE: Each correct selection is worth one point.Hot Area:

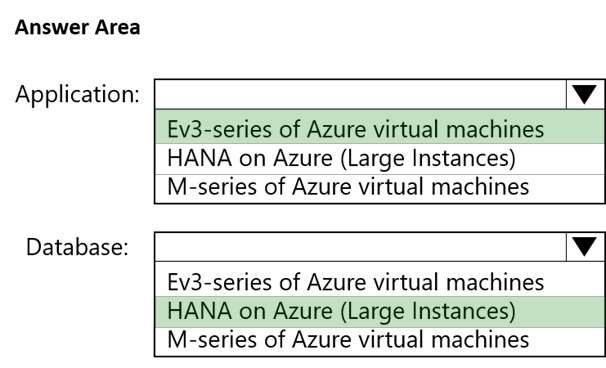

Box 1: Ev3 series M Azure virtual machinesThe Ev3 series pricing is starting from $58.40 /per month.The E-series Azure VMs are optimized for heavy in-memory applications such as SAP HANA. These VMs are configured with high memory-to-core ratios, which makes them well-suited for memory-intensive enterprise applications, large relational database servers, in-memory analytics workloads etc.The Ev3-series VMs range from 2 to 64 vCPUs and 16-432 GiB of RAM, respectively. Example workloads include SAP HANA (e.g., E64s v3, E20ds v4, E32ds v4, E48ds v4, E64ds v4), SAP S/4 HANA application layer, SAP NetWeaver application layer, and more broadly memory-intensive enterprise applications, large relational database servers, data warehousing workloads, business intelligence applications, in-memory analytics workloads, and additional business-critical applications, including systems that process financial transactions of various nature...Incorrect Answers:On price: The M-series family pricing is starting from $1,121.65 /per month.Note: The M-series family of Azure virtual machines are memory optimized and are ideal for heavy in-memory workloads such as SAP HANA. The M-Series offer up to 4 TB of RAM on a single VM. In addition, these VMs offer a virtual CPU count of up to 128 vCPUs on a single VM to enable high performance parallel processing. Example workloads include SAP HANA, SAP S/4 HANA, SQL Hekaton and other large in-memory business critical workloads requiring massive parallel compute power.Box 2: Hana on Azure (Large Instances)The storage used in HANA Large Instances has a file size limitation. The size limitation is 16 TB per file.
