You have two Azure subscriptions.You plan to deploy virtual machines to both subscriptions. The virtual machines will host SAP workloads. As part of the deployment the virtual machines will be deployed to an availability zone named Availability Zone 1 in each subscription.You need to ensure that the virtual machines will reside in the same physical datacenter.What should you do first?
Answer(s): C

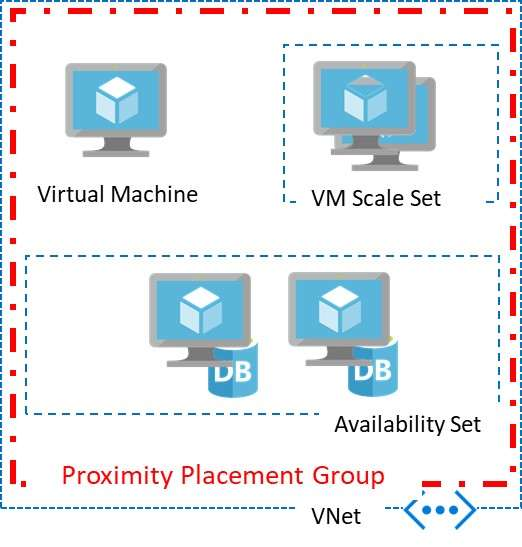

Availability Zones are physically separate datacenters within an Azure region. Each Availability Zone is made up of one or more data centers equipped with independent power, cooling, and networking.* proximity groupA proximity placement group is a logical grouping used to make sure that Azure compute resources are physically located close to each other. Proximity placement groups are useful for workloads where low latency is a requirement.Placing VMs in a single region reduces the physical distance between the instances. Placing them within a single availability zone will also bring them physically closer together. However, as the Azure footprint grows, a single availability zone may span multiple physical data centers, which may result in a network latency impacting your application.To get VMs as close as possible, achieving the lowest possible latency, you should deploy them within a proximity placement group.A proximity placement group is a logical grouping used to make sure that Azure compute resources are physically located close to each other. Proximity placement groups are useful for workloads where low latency is a requirement.Low latency between stand-alone VMs.Low Latency between VMs in a single availability set or a virtual machine scale set.Low latency between stand-alone VMs, VMs in multiple Availability Sets, or multiple scale sets. You can have multiple compute resources in a single placement group to bring together a multi-tiered application.Low latency between multiple application tiers using different hardware types. For example, running the backend using M-series in an availability set and the front end on a D-series instance, in a scale set, in a single proximity placement group.
https://learn.microsoft.com/en-us/azure/virtual-machines/co-location
You have an SAP landscape on Azure that contains a virtual machine named VM1. VM1 hosts the central services application.You need to encrypt VM1. The solution must meet the following requirements:All disks must be encrypted.The impact on the CPU of VM1 must be minimized.The manual rotation of encryption keys must be supported.Which type of encryption should you use?
Answer(s): B
Customer-managed keys for Azure Storage encryptionYou can use your own encryption key to protect the data in your storage account. When you specify a customer-managed key, that key is used to protect and control access to the key that encrypts your data.Customer-managed keys offer greater flexibility to manage access controls.Update the key versionFollowing cryptographic best practices means rotating the key that is protecting your storage account on a regular schedule, typically at least every two years. Azure Storage never modifies the key in the key vault, but you can configure a key rotation policy to rotate the key according to your compliance requirements.

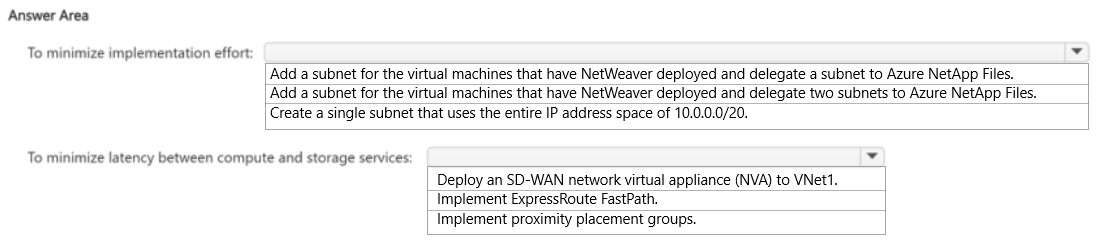

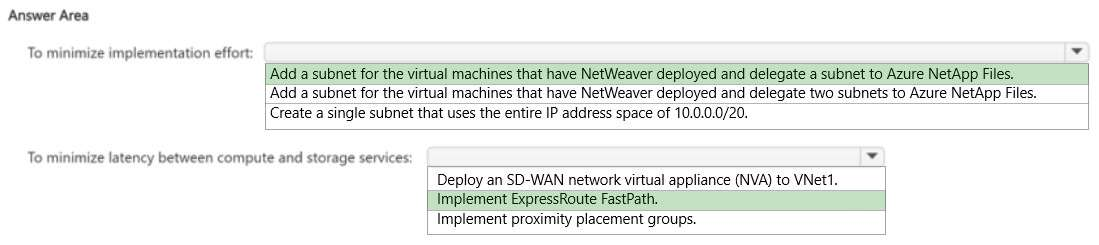

HOTSPOT (Drag and Drop is not supported)You have an Azure subscription that contains a virtual network named VNet1.You plan to deploy SAP NetWeaver to VNet1 and use Azure NetApp Files for storage. You need to recommend a network configuration for VNet1. The solution must use an IP address space of 10.0.0.0/20 and meet the following requirements:Fully support SAP.Minimize implementation effort.Minimize latency between compute and storage services.What should you include in the recommendation? To answer, select the appropriate options in the answer area.NOTE: Each correct selection is worth one point.Hot Area:
Answer(s): A
Box 1: Add a subnet for the virtual machines that have NetWeaver deployed and delete a subnet to Azure NetApp Files.To minimize implementation effortDelegate a subnet to Azure NetApp files.You must delegate a subnet to Azure NetApp Files. When you create a volume, you need to specify the delegated subnet.Box 2: Implement ExpressRoute FastPathTo minimize latency between compute and storage servicesExpressRoute FastPath connectivity to Azure NetApp Files. FastPath is designed to improve the data path performance (low latency and high bandwidth connectivity) between on-premises network and Azure virtual network.

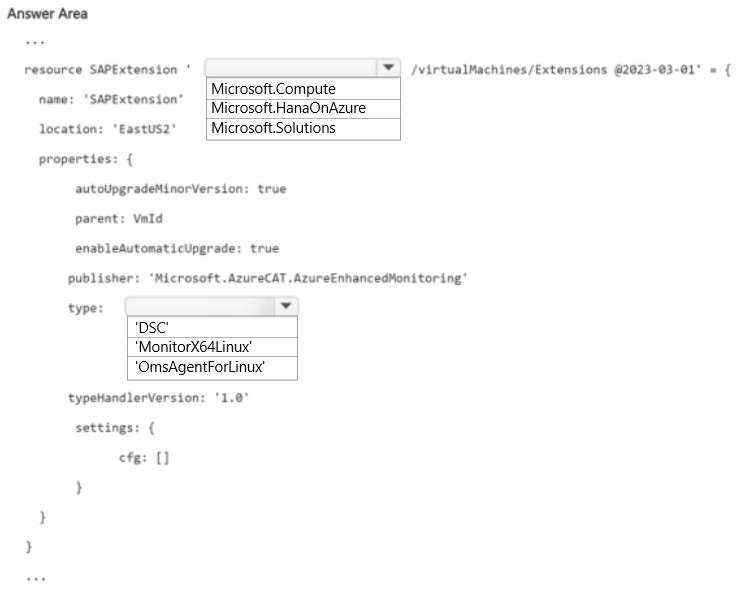

HOTSPOT (Drag and Drop is not supported)You are deploying SAP HANA to Azure virtual machines.You need to include the new version of the Azure VM extension for SAP solutions in the deployment.You have a Bicep resource definition template.How should you complete the template? To answer, select the appropriate options in the answer area.NOTE: Each correct selection is worth one point.Hot Area:

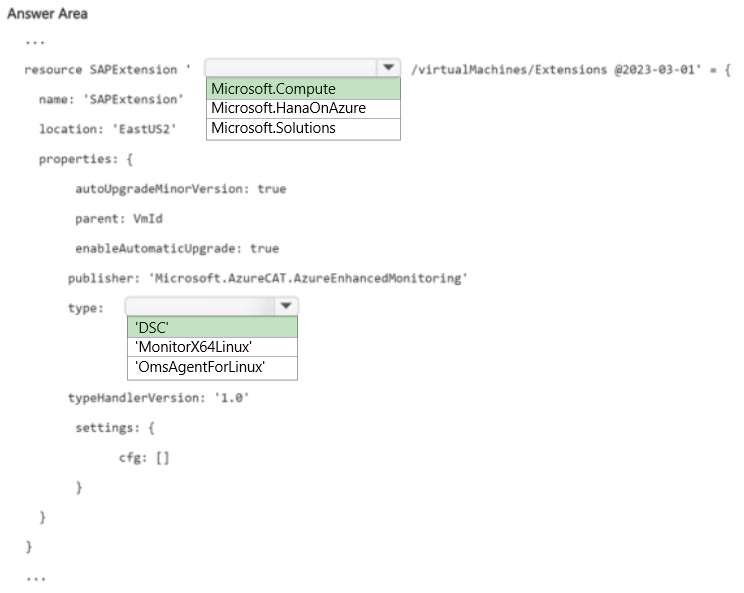

Box 1: Microsoft.Compute/To create a Microsoft.Compute/virtualMachines/extensions resource, add the following Bicep to your template.resource symbolicname 'Microsoft.Compute/virtualMachines/extensions@2023-09-01' = { name: 'string'location: 'string'tags: {tagName1: 'tagValue1'tagName2: 'tagValue2'}Etc.Box 2: DSCDesired State Configuration (DSC) is a feature in PowerShell 4.0 and above that helps administrators to automate the configuration of Windows and Linux operating systems (OSes). DSC provides a set of PowerShell language extensions, cmdlets and a process called declarative scripting.Incorrect:* OmsAgentForLinuxOMS Stands for Operations Management Suite Agent can be configured to collect the performance logs or the application logs of a Linux family Azure Virtual Machine by connecting it to Azure Log Analytics Workspace.* MonitorX64Linux

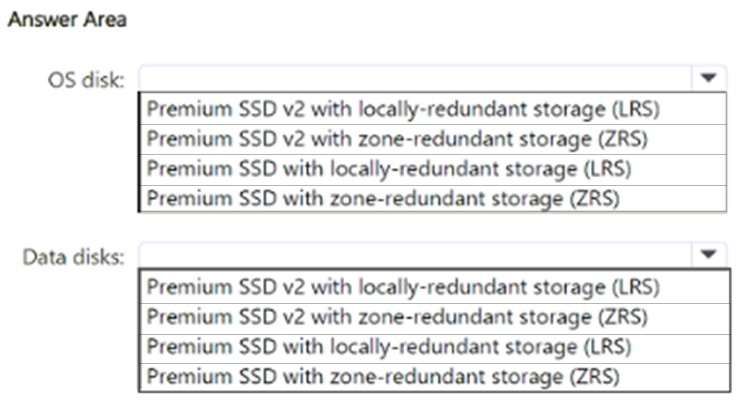

HOTSPOT (Drag and Drop is not supported)You plan to deploy SAP NetWeaver to Azure virtual machines.You need to recommend a storage solution for the OS disk and data disks that store log files. The solution must minimize the latency of read and write operations.What should you recommend for each type of disk? To answer, select the appropriate options in the answer area.NOTE: Each correct selection is worth one point.Hot Area:

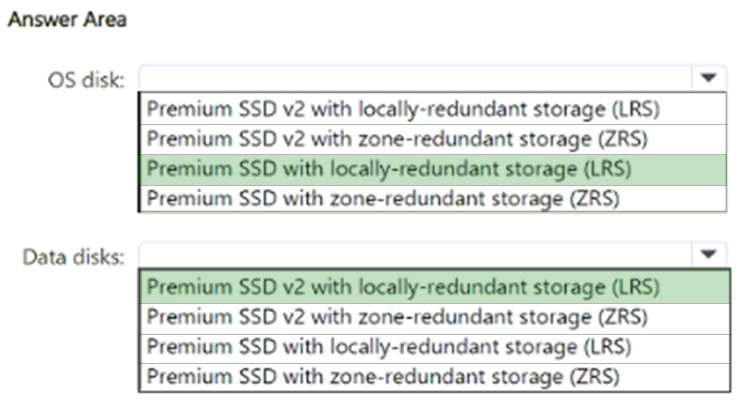

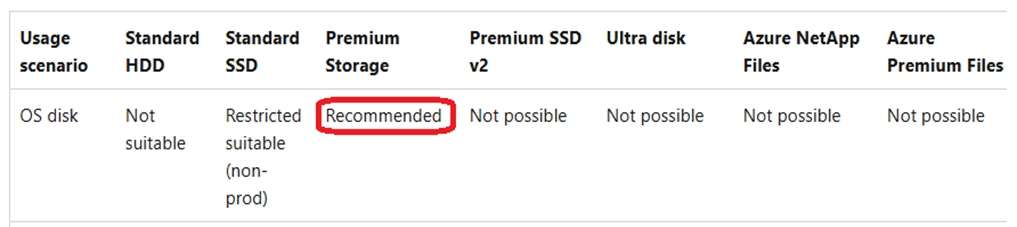

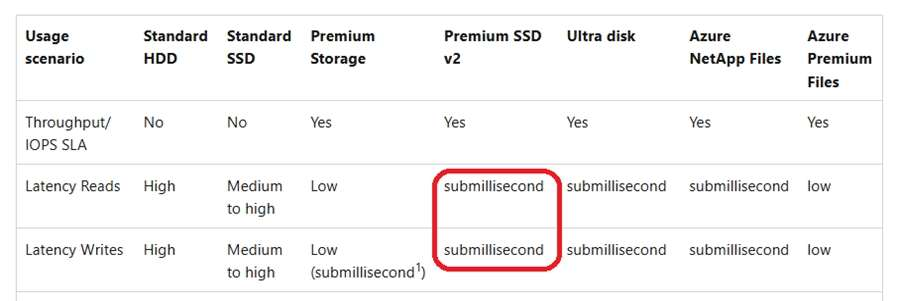

Box 1: Premium SSD with locally-redundant storage (LRS)OS diskMicrosoft Azure Storage resiliencyMicrosoft Azure storage of Standard HDD, Standard SSD, Azure premium storage, Premium SSD v2, and Ultra disk keeps the base VHD (with OS) and VM attached data disks or VHDs in three copies on three different storage nodes. Failing over to another replica and seeding of a new replica if there's a storage node failure, is transparent. As a result of this redundancy, it's NOT required to use any kind of storage redundancy layer across multiple Azure disks. This fact is called Local Redundant Storage (LRS). LRS is default for these types of storage in Azure. Azure NetApp Files provides sufficient redundancy to achieve the same SLAs as other native Azure storage.Storage recommendations for SAP storage scenariosBefore going into the details, we're presenting the summary and recommendations already at the beginning of the document. Whereas the details for the particular types of Azure storage are following this section of the document. When we summarize the storage recommendations for the SAP storage scenarios in a table, it looks like:Box 2: Premium SSD V2 with locally-redundant storage (LRS)Data diskCharacteristics you can expect from the different storage types list like:
