Case Study –
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study –
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview –
Litware, Inc. is a medium-sized finance company that has a main office in Boston.
Existing Environment –
Identity Environment –
The network contains an Active Directory forest named litware.com that is linked to an Azure Active Directory (Azure AD) tenant named litware.com. All users have Azure Active Directory Premium P2 licenses.
Litware has a second Azure AD tenant named dev.litware.com that is used as a development environment.
The litware.com tenant has a Conditional Access policy named Capolicy1. Capolicy1 requires that when users manage the Azure subscription for a production environment by using the Azure portal, they must connect from a hybrid Azure AD-joined device.
Azure Environment –
Litware has 10 Azure subscriptions that are linked to the litware.com tenant and five Azure subscriptions that are linked to the dev.litware.com tenant. All the subscriptions are in an Enterprise Agreement (EA).
The litware.com tenant contains a custom Azure role-based access control (Azure RBAC) role named Role1 that grants the DataActions read permission to the blobs and files in Azure Storage.
On-Premises Environment –

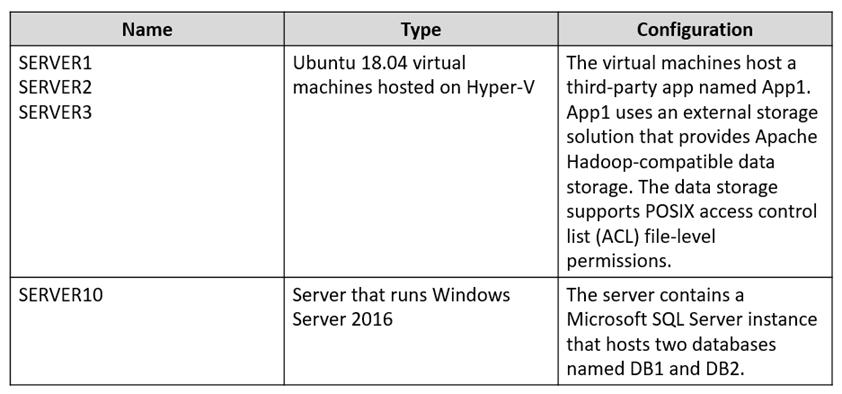

The on-premises network of Litware contains the resources shown in the following table.
Network Environment –
Litware has ExpressRoute connectivity to Azure.
Planned Changes and Requirements
Planned Changes –
Litware plans to implement the following changes:
Migrate DB1 and DB2 to Azure.
Migrate App1 to Azure virtual machines.
Migrate the external storage used by App1 to Azure Storage.
Deploy the Azure virtual machines that will host App1 to Azure dedicated hosts.
Authentication and Authorization Requirements
Litware identifies the following authentication and authorization requirements:
Only users that manage the production environment by using the Azure portal must connect from a hybrid Azure AD-joined device and authenticate by using Azure Multi-Factor Authentication (MFA).
The Network Contributor built-in RBAC role must be used to grant permissions to the network administrators for all the virtual networks in all the Azure subscriptions.
To access the resources in Azure, App1 must use the managed identity of the virtual machines that will host the app.
RBAC roles must be applied to management groups.
Resiliency Requirements –
Litware identifies the following resiliency requirements:
Once migrated to Azure, DB1 and DB2 must meet the following requirements:
– Maintain availability if two availability zones in the local Azure region fail.
– Fail over automatically.
– Minimize I/O latency.
App1 must meet the following requirements:
– Be hosted in an Azure region that supports availability zones.
– Be hosted on Azure virtual machines that support automatic scaling.
– Maintain availability if two availability zones in the local Azure region fail.
Security and Compliance Requirements
Litware identifies the following security and compliance requirements:
Once App1 is migrated to Azure, you must ensure that new data can be written to the app, and the modification of new and existing data is prevented for a period of three years.
On-premises users and services must be able to access the Azure Storage account that will host the data in App1.
Access to the public endpoint of the Azure Storage account that will host the App1 data must be prevented.
All Azure SQL databases in the production environment must have Transparent Data Encryption (TDE) enabled.
App1 must NOT share physical hardware with other workloads.
Business Requirements –
Litware identifies the following business requirements:
Minimize administrative effort.
Minimize costs.
HOTSPOT (Drag and Drop is not supported)
You plan to migrate App1 to Azure.

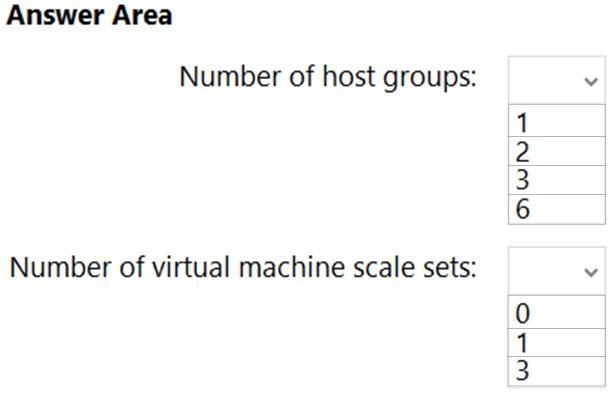

You need to recommend a high-availability solution for App1. The solution must meet the resiliency requirements.
What should you include in the recommendation? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

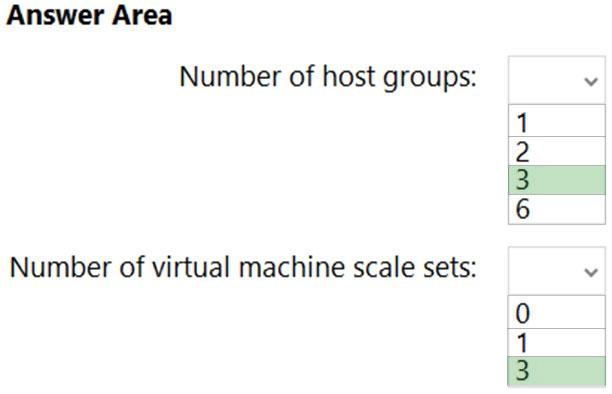

Box 1: 3
Need three host groups to meet the third scenario requirement below.
Scenario: App1 must meet the following requirements:
Be hosted in an Azure region that supports availability zones.
Be hosted on Azure virtual machines that support automatic scaling.
Maintain availability if two availability zones in the local Azure region fail.
Box 2: 3
The availability setting of your host group should match your scale set.
* The host group and the scale set must be using the same availability zone.
* The fault domain count for the host group level should match the fault domain count for your scale set.


Reference:

https://docs.microsoft.com/en-us/azure/virtual-machines/dedicated-hosts



Case Study –
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study –
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview –
Contoso, Ltd. is a research company that has a main office in Montreal.
Existing Environment: Technical Environment
The on-premises network contains a single Active Directory domain named contoso.com.
Contoso has a single Azure subscription.
Existing Environment: Business Partnerships
Contoso has a business partnership with Fabrikam, Inc. Fabrikam users access some Contoso applications over the internet by using Azure Active Directory (Azure AD) guest accounts.
Requirements: Planned Changes –
Contoso plans to deploy two applications named App1 and App2 to Azure.
Requirements: App1 –
App1 will be a Python web app hosted in Azure App Service that requires a Linux runtime. Users from Contoso and Fabrikam will access App1.
App1 will access several services that require third-party credentials and access strings. The credentials and access strings are stored in Azure Key Vault.
App1 will have six instances: three in the East US Azure region and three in the West Europe Azure region.
App1 has the following data requirements:
Each instance will write data to a data store in the same availability zone as the instance.
Data written by any App1 instance must be visible to all App1 instances.
App1 will only be accessible from the internet. App1 has the following connection requirements:
Connections to App1 must pass through a web application firewall (WAF).
Connections to App1 must be active-active load balanced between instances.
All connections to App1 from North America must be directed to the East US region. All other connections must be directed to the West Europe region.
Every hour, you will run a maintenance task by invoking a PowerShell script that copies files from all the App1 instances. The PowerShell script will run from a central location.
Requirements: App2 –
App2 will be a .NET app hosted in App Service that requires a Windows runtime. App2 has the following file storage requirements:
Save files to an Azure Storage account.
Replicate files to an on-premises location.
Ensure that on-premises clients can read the files over the LAN by using the SMB protocol.
You need to monitor App2 to analyze how long it takes to perform different transactions within the application. The solution must not require changes to the application code.
Application Development Requirements
Application developers will constantly develop new versions of App1 and App2. The development process must meet the following requirements:
A staging instance of a new application version must be deployed to the application host before the new version is used in production.
After testing the new version, the staging version of the application will replace the production version.
The switch to the new application version from staging to production must occur without any downtime of the application.
Identity Requirements –
Contoso identifies the following requirements for managing Fabrikam access to resources:
Every month, an account manager at Fabrikam must review which Fabrikam users have access permissions to App1. Accounts that no longer need permissions must be removed as guests.
The solution must minimize development effort.
Security Requirement –
All secrets used by Azure services must be stored in Azure Key Vault.
Services that require credentials must have the credentials tied to the service instance. The credentials must NOT be shared between services.
HOTSPOT (Drag and Drop is not supported)

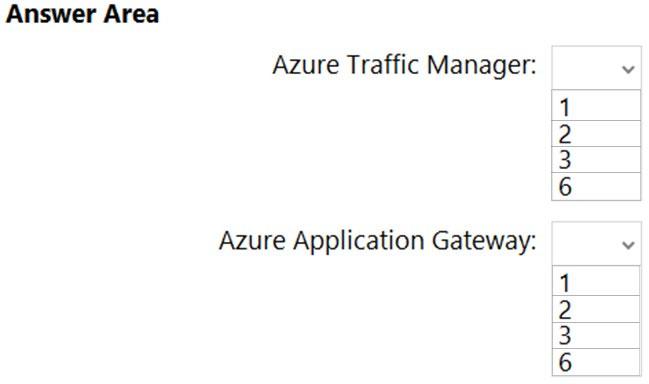

You are evaluating whether to use Azure Traffic Manager and Azure Application Gateway to meet the connection requirements for App1.
What is the minimum numbers of instances required for each service? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

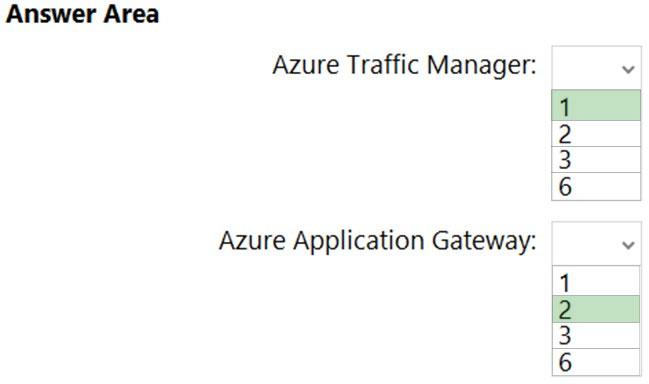

Box 1: 1
App1 will only be accessible from the internet. App1 has the following connection requirements:
ג€¢ Connections to App1 must be active-active load balanced between instances.
ג€¢ All connections to App1 from North America must be directed to the East US region. All other connections must be directed to the West Europe region.
App1 will have six instances: three in the East US Azure region and three in the West Europe Azure region.
Note: Azure Traffic Manager is a DNS-based traffic load balancer. This service allows you to distribute traffic to your public facing applications across the global
Azure regions.
Box 2: 2
For production workloads, run at least two gateway instances.
A single Application Gateway deployment can run multiple instances of the gateway.
Use one Application Gateway in East US Region, and one in the West Europe region.


Reference:

https://docs.microsoft.com/en-us/azure/architecture/high-availability/reference-architecture-traffic-manager-application-gateway



Case Study –
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study –
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview –
Contoso, Ltd. is a research company that has a main office in Montreal.
Existing Environment: Technical Environment
The on-premises network contains a single Active Directory domain named contoso.com.
Contoso has a single Azure subscription.
Existing Environment: Business Partnerships
Contoso has a business partnership with Fabrikam, Inc. Fabrikam users access some Contoso applications over the internet by using Azure Active Directory (Azure AD) guest accounts.
Requirements: Planned Changes –
Contoso plans to deploy two applications named App1 and App2 to Azure.
Requirements: App1 –
App1 will be a Python web app hosted in Azure App Service that requires a Linux runtime. Users from Contoso and Fabrikam will access App1.
App1 will access several services that require third-party credentials and access strings. The credentials and access strings are stored in Azure Key Vault.
App1 will have six instances: three in the East US Azure region and three in the West Europe Azure region.
App1 has the following data requirements:
Each instance will write data to a data store in the same availability zone as the instance.
Data written by any App1 instance must be visible to all App1 instances.
App1 will only be accessible from the internet. App1 has the following connection requirements:
Connections to App1 must pass through a web application firewall (WAF).
Connections to App1 must be active-active load balanced between instances.
All connections to App1 from North America must be directed to the East US region. All other connections must be directed to the West Europe region.
Every hour, you will run a maintenance task by invoking a PowerShell script that copies files from all the App1 instances. The PowerShell script will run from a central location.
Requirements: App2 –
App2 will be a .NET app hosted in App Service that requires a Windows runtime. App2 has the following file storage requirements:
Save files to an Azure Storage account.
Replicate files to an on-premises location.
Ensure that on-premises clients can read the files over the LAN by using the SMB protocol.
You need to monitor App2 to analyze how long it takes to perform different transactions within the application. The solution must not require changes to the application code.
Application Development Requirements
Application developers will constantly develop new versions of App1 and App2. The development process must meet the following requirements:
A staging instance of a new application version must be deployed to the application host before the new version is used in production.
After testing the new version, the staging version of the application will replace the production version.
The switch to the new application version from staging to production must occur without any downtime of the application.
Identity Requirements –
Contoso identifies the following requirements for managing Fabrikam access to resources:
Every month, an account manager at Fabrikam must review which Fabrikam users have access permissions to App1. Accounts that no longer need permissions must be removed as guests.
The solution must minimize development effort.
Security Requirement –
All secrets used by Azure services must be stored in Azure Key Vault.
Services that require credentials must have the credentials tied to the service instance. The credentials must NOT be shared between services.
DRAG DROP (Drag and Drop is not supported)

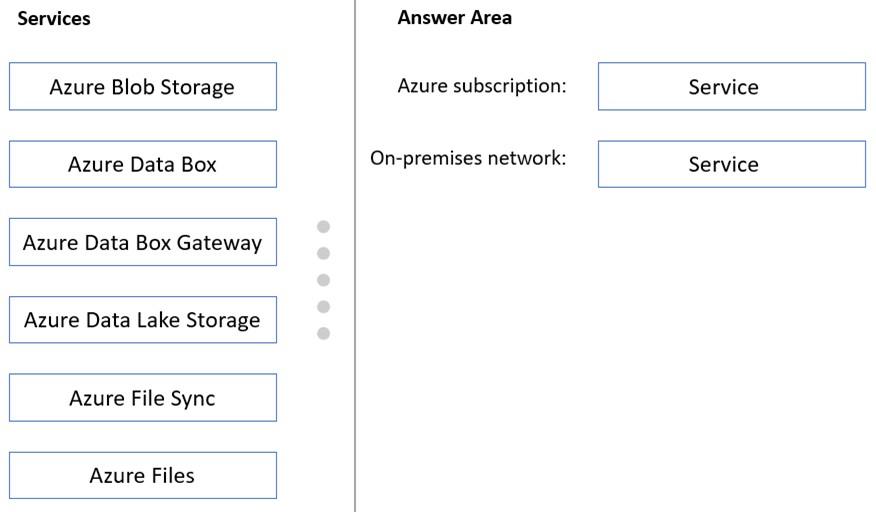

You need to recommend a solution that meets the file storage requirements for App2.
What should you deploy to the Azure subscription and the on-premises network? To answer, drag the appropriate services to the correct locations. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

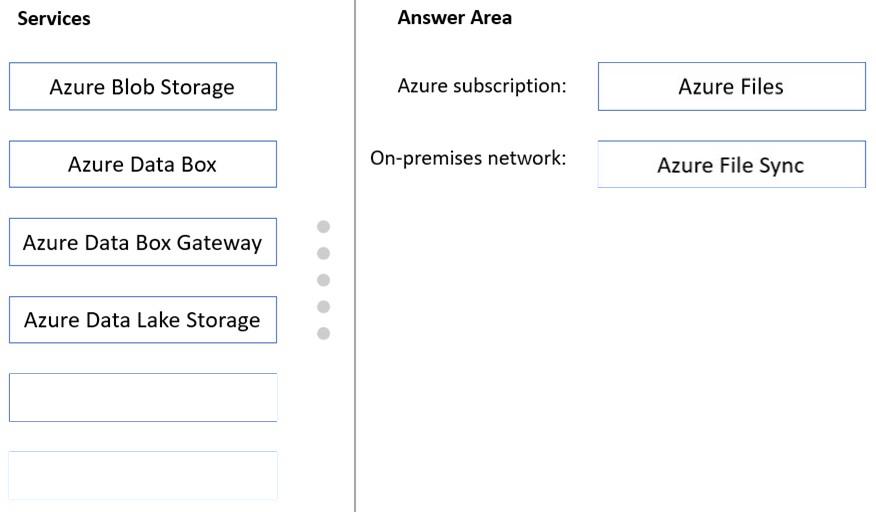

Box 1: Azure Files
Scenario: App2 has the following file storage requirements:
- Save files to an Azure Storage account.
- Replicate files to an on-premises location.
- Ensure that on-premises clients can read the files over the LAN by using the SMB protocol.
Box 2: Azure File Sync
Use Azure File Sync to centralize your organization's file shares in Azure Files, while keeping the flexibility, performance, and compatibility of an on-premises file server. Azure File Sync transforms Windows Server into a quick cache of your Azure file share. You can use any protocol that's available on Windows Server to access your data locally, including SMB, NFS, and FTPS. You can have as many caches as you need across the world.


Reference:

https://docs.microsoft.com/en-us/azure/storage/file-sync/file-sync-deployment-guide



-Same Case Study with topic 8
HOTSPOT (Drag and Drop is not supported)

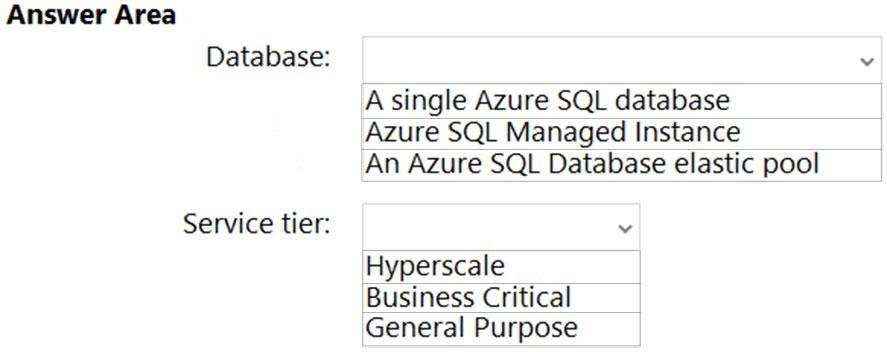

You plan to migrate DB1 and DB2 to Azure.
You need to ensure that the Azure database and the service tier meet the resiliency and business requirements.
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

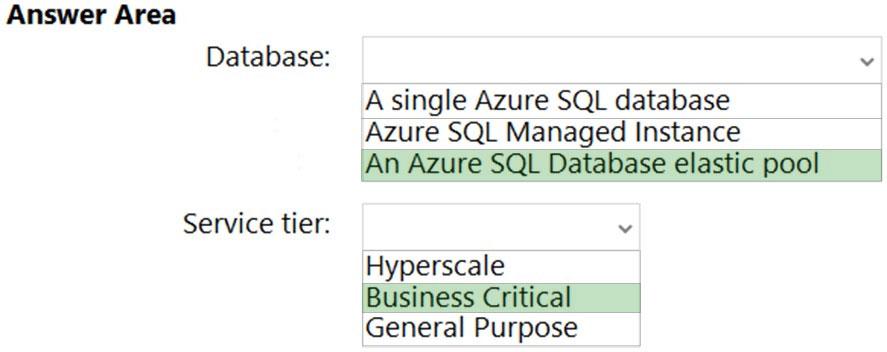

Box 1: An Azure SQL Database elastic pool
Scenario:
* Resiliency Requirements. Once migrated to Azure, DB1 and DB2 must meet the following requirements:
Maintain availability if two availability zones in the local Azure region fail.
Fail over automatically.
Minimize I/O latency.
* Litware identifies the following business requirements:
Minimize administrative effort.
Minimize costs.
Box 2: Business Critical






Post your Comments and Discuss Microsoft AZ-305 exam with other Community members:

AZ-305 Exam Discussions & Posts
