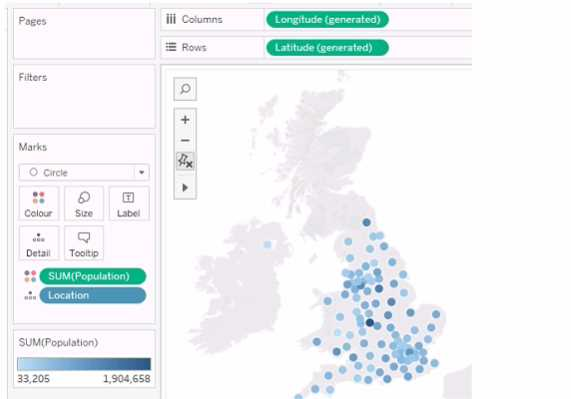

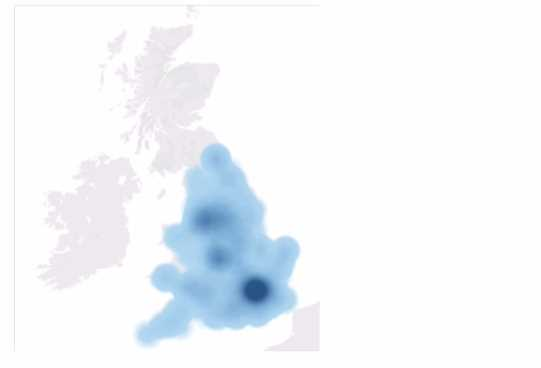

You have the following map.You need the map to appear as shown in the following visualization.What should you do?
Answer(s): A
The question presents a scenario where a geographic map visualization in Tableau needs to be transformed from a series of discrete circles representing data points to a density map visualization. The density map shows concentrations of data points with a gradient of color, where denser areas are indicated by a darker color.Here's the explanation for each option:A . Change the mark type to Density: This is the correct answer because changing the mark type to 'Density' in Tableau creates a density map, which displays the concentration of data points with a color gradient. This is exactly what is needed to achieve the visual effect shown in the second image, where regions with a higher concentration of data points are represented by darker shades. B . Drag Location to Size on the Marks card: This option would adjust the size of the marks based on the number of locations, which is not relevant to creating a density map. It would result in varying sizes of circles, not a continuous gradient.C . Change the mark type to Map: The visualization is already using a map. This option would not change the visualization to the desired density map.D . Drag Population to Size on the Marks card: This would change the size of the circles based on the population values, making some circles larger and others smaller. This is not how a density map is created, which uses color intensity rather than size to show concentration. E . Change the opacity to 75%: Changing the opacity would affect the transparency of the marks on the map but would not transform the visualization into a density map. To achieve the visualization shown in the second image, the mark type must be changed to 'Density,' which will produce a heat map-like effect where the color intensity represents the concentration of data points. Therefore, the correct answer is A. Change the mark type to Density.To create a density map from a scatter plot of data points, you would change the mark type to Density. This mark type allows you to visualize the concentration of data points in an area, which can be useful for identifying clusters or patterns in geospatial data.

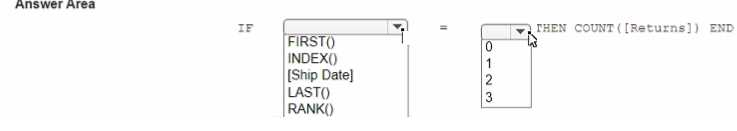

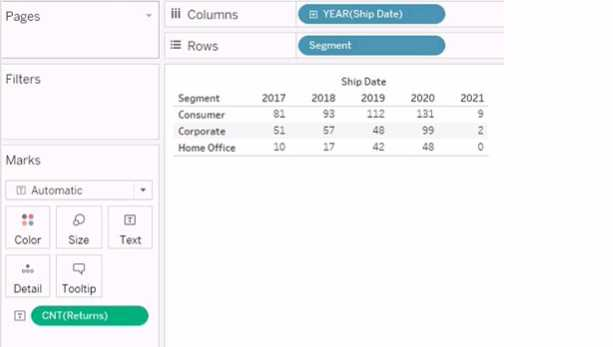

HOTSPOT (Drag and Drop is not supported)You have the following visualization.You want the count of Returns displayed only for the first year in the table.How should you complete the formula in the calculated field? (Use the dropdowns in the Answer Area to select the correct options to complete the formula.)
we need to create a calculated field that displays the count of returns only for the first year in the table. To do this, we can use the following formula:IF FIRST () = 0 THEN COUNT (Returns) ENDThis formula uses the FIRST () function, which returns the number of rows from the current row to the first row in the partition. If the current row is the first row, then FIRST () returns 0. The IF statement checks if this condition is true, and if so, it returns the count of returns for that row.Otherwise, it returns NULL.To complete the formula in the calculated field, you should select the following options from the drop-down menus:FIRST ()COUNT (Returns)https://help.tableau.com/current/pro/desktop/en-us/functions_functions_date.htm

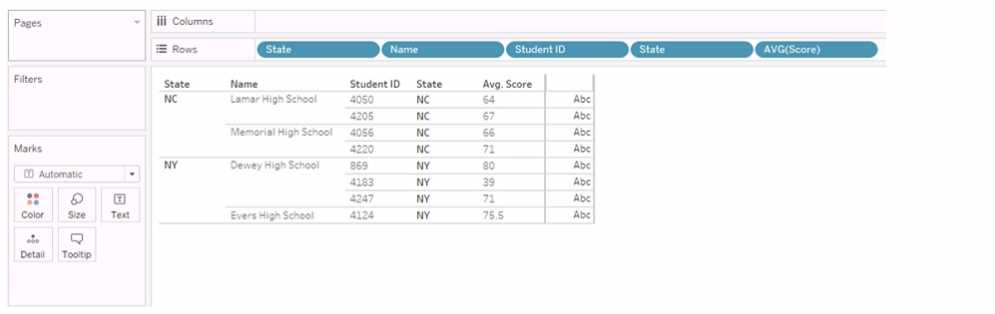

You have the following visualization.You Create a table calculation named Rank_Score that has a formula of RANK(AVG([Score]), and you drag Rank_Score to Text on the Marks cards.What is the Rank Score value for Student ID 4220?
Answer(s): C
To determine the Rank Score value for Student ID 4220, we look at the visualization provided and apply the table calculation of RANK(AVG([Score])). This function will rank the average scores in ascending order by default, with the lowest score receiving the rank of 1. Based on the provided visualization, the scores for the students are as follows (from lowest to highest average score):Student ID 4183: 39 (Rank 1)Student ID 4220: 71 (Rank 6)Student ID 4247: 71 (Rank 6, same score as ID 4220 so they share the same rank) Student ID 4124: 75.5Student ID 4050: 64Student ID 4205: 67Student ID 4056: 66Since Student ID 4220 has an average score of 71, which is the third-highest score, it shares the rank with Student ID 4247. However, since Tableau ranks without gaps, the actual rank assigned is 6, considering that there are two students with a rank of 4 (due to the same average score being the second lowest), making the next rank number 6.Note: The actual ranks for the highest scores are not provided, but they are not needed to determine the rank for Student ID 4220.https://help.tableau.com/current/prep/en-us/prep_calculations.htm

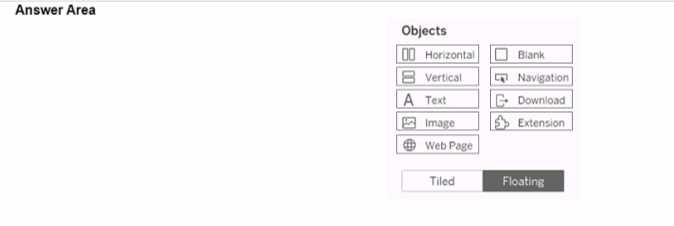

HOTSPOT (Drag and Drop is not supported)You have a dashboard than contains two sheets named Sheet 1 and Sheet 2. You want to add an object to the dashboard that users can click to switch to a different dashboard in the workbook.Which object should you add to the dashboard?
The object that you should add to the dashboard to allow users to switch to a different dashboard in the workbook is Navigation.Navigation objects are used to create links between dashboards or sheets in a workbook. You can add a navigation object to a dashboard by dragging it from the list of objects and dropping it on the dashboard. You can then configure the navigation object to specify the destination dashboard or sheet that you want users to navigate to when they click on it. You can learn more about navigation objects and how to use them in this article:https://help.tableau.com/current/pro/desktop/en-us/dashboards_navigation.htm

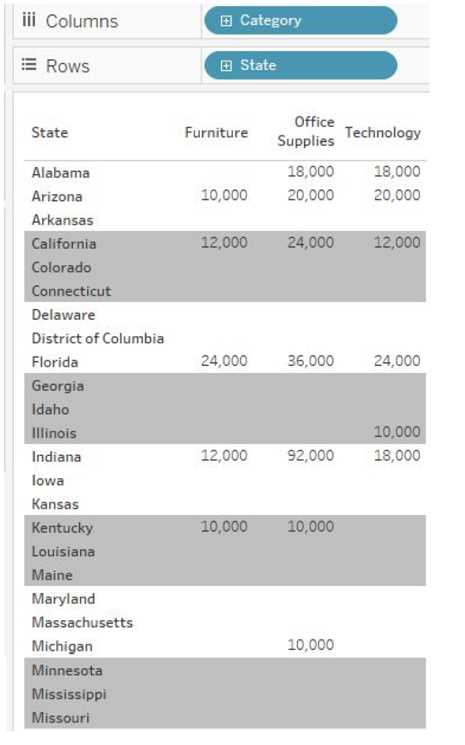

You have the following table.You need each record to alternate between grey and white.What should you change in the Format Shading pane?
To have each record alternate between grey and white, you should change the row banding size to 1 in the Format Shading pane. This setting will ensure that each row has a different shading from the one above and below it, creating an alternating pattern of grey and white rows.
The answer can be verified through practical application within Tableau or by consulting Tableau's official learning resources, such as Tableau Help: Format Shading or Tableau Training Pass: Formatting.
