Considering a process developed using REFramework, if the status of a transaction was set to "Failed" with the Error Type specified as "Business", the process will transition to which state?
Answer(s): A
The REFramework template is a robust and scalable framework for building RPA projects. It uses a state machine to handle the different stages of the automation process. One of the states is the Process Transaction state, where the main actions are performed on each transaction item. A transaction item can be a queue item from Orchestrator, a data row from an Excel file, or any other type of data that needs to be processed. If the status of a transaction item is set to "Failed" with the Error Type specified as "Business", it means that the item did not meet a business or application requirement within the project and was therefore sent to a Set Transaction Status activity, which changed its status to Failed. In this case, the process will transition to the Get Transaction Data state, where the next transaction item is retrieved and assigned to be processed. The process will not transition to the Initialization, End Process, or Process Transaction states, as these are used for different purposes in the REFramework.
The UiPath ReFramework documentation from UiPathState Machines documentation from UiPathProcess.xaml documentation from UiPathTransactionItem Variable documentation from UiPath[Queue Item Statuses] documentation from UiPath[GetTransactionData.xaml] documentation from UiPath
In the context of the REFramework, if the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, what will be the behavior at run time?
Answer(s): B
The REFramework template is a robust and scalable framework for building RPA projects. It uses a config file to store the settings and constants that are used throughout the project. The config file has two sheets: Settings and Assets. The Settings sheet contains the key-value pairs that are read by the InitAllSettings workflow and stored in the config dictionary. The Assets sheet contains the names of the assets that are stored in Orchestrator and need to be retrieved by the InitAllApplications workflow. The OrchestratorQueueName key is used to specify the name of the queue that is used to store the transaction items for the process. If the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, the behavior at run time will be as follows:The InitAllSettings workflow will read the value of the OrchestratorQueueName key from the Settings sheet and store it in the config dictionary.The InitAllApplications workflow will try to retrieve the asset with the name OrchestratorQueueName from Orchestrator using the Get Asset activity. Since the asset does not exist, the activity will throw an exception.The exception will be caught by a Try Catch block and handled by a Log Message activity with level Warning and message "Asset not found: OrchestratorQueueName". The flow will continue with the next asset in the Assets sheet or move to the next state if there are no more assets.The flow will use the value of the OrchestratorQueueName key from the config dictionary whenever it needs to access or update the queue.Therefore, option B is correct. Option A is incorrect because the exception is thrown in InitAllApplications workflow, not InitAllSettings workflow. Option C is incorrect because an empty string is not saved for the OrchestratorQueueName key in the config dictionary. Option D is incorrect because the OrchestratorQueueName key is added to the config dictionary and the flow does not throw in Get Transaction Data workflow.
How to Use Enhanced REFramework to Implement UiPath Projects article from UiPath Config.xlsx documentation from UiPath[InitAllSettings.xaml] documentation from UiPath[InitAllApplications.xaml] documentation from UiPath[TransactionItem Variable] documentation from UiPath
A developer has defined a variable named "CurrentDate" of type Date Time. Which of the following expressions can be used to show what hour was 12 hours prior to the date from the variable?

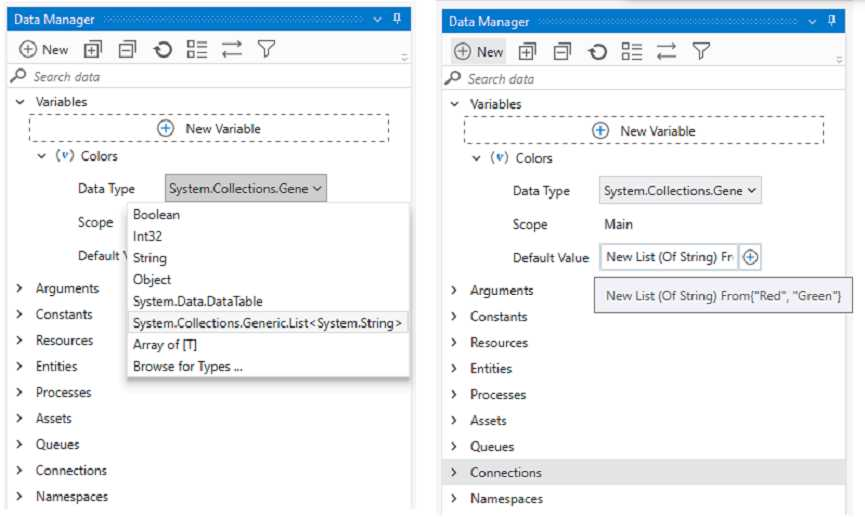

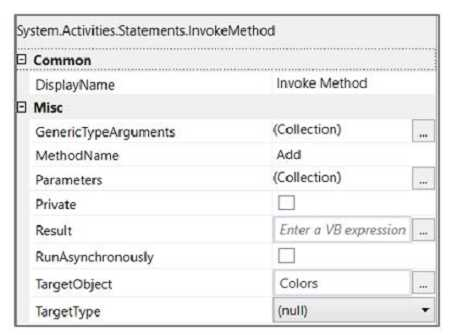

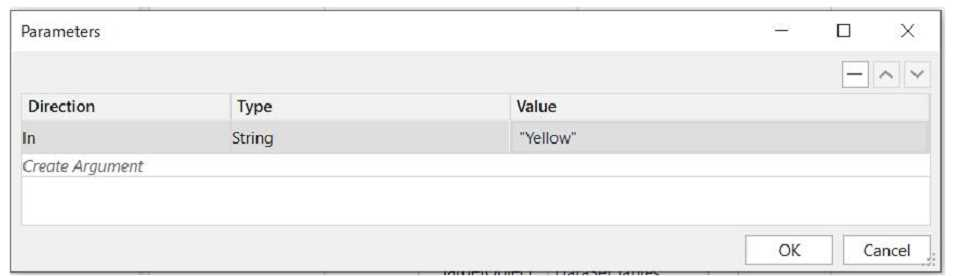

A developer wants to add items to a list of strings using the Invoke Method activity. The list is declared as follows:The Invoke Method includes the following properties:The Parameters property is as follows:Based on the exhibits, what is the outcome of this Invoke Method activity?
Answer(s): C
The Invoke Method activity is used to execute a method of a class or an object. In this case, the developer wants to add items to a list of strings using the Add method of the List class. The list is declared as Colors and initialized with two items: "Red" and "Green". The Invoke Method activity has the following properties:TargetObject: Colors (the list variable)MethodName: Add (the method of the List class)Parameters: Direction - In, Type - String, Value - "Yellow" (the item to be added to the list) Based on these properties, the Invoke Method activity will add the string "Yellow" to the end of the Colors list. Therefore, the outcome of this Invoke Method activity is that Colors will contain items in the following order: "Red", "Green", "Yellow".Option A is incorrect because the Invoke Method activity will not throw an error, as the properties are configured correctly. Option B is incorrect because the order of the items in the list will not change, as the Add method appends the item to the end of the list. Option D is incorrect because the list will have three items, not two, as the Add method does not overwrite any existing item.
Invoke Method activity documentation from UiPathList<T>.Add(T) Method documentation from Microsoft
A developer needs to use the REFramework to automate a business process that involves processing transactions within an Excel table. Each transaction in the table should follow the same steps for processing and queues cannot be used as there is no Orchestrator in the environment. Which variable type is best suited for Transactionltem in this scenario?
The REFramework template is a robust and scalable framework for building RPA projects. It uses a state machine to handle the different stages of the automation process. One of the states is the Process Transaction state, where the main actions are performed on each transaction item. A transaction item can be a queue item from Orchestrator, a data row from an Excel file, or any other type of data that needs to be processed. If the transactions are stored in an Excel table, the best variable type for TransactionItem is System.Data.DataRow, as it represents a single row of data in a DataTable. A DataTable is a collection of rows and columns that can be read from or written to an Excel file using the Excel activities. Therefore, option A is correct. Option B is incorrect because UiPath.Core.QueueItem is a variable type that represents an item from a queue in Orchestrator. If there is no Orchestrator in the environment, queues cannot be used and QueueItem is not applicable. Option C is incorrect because System.Data.DataTable is a variable type that represents a table of data with rows and columns. A single transaction item cannot be a whole table, but only a row from the table. Option D is incorrect because System.Data.DataRow[] is a variable type that represents an array of data rows. An array is a collection of items of the same type that can be accessed by an index. A single transaction item cannot be an array, but only an element from the array.
The UiPath ReFramework documentation from UiPathState Machines documentation from UiPathProcess.xaml documentation from UiPath[TransactionItem Variable] documentation from UiPath[DataRow Class] documentation from Microsoft[Excel Activities] documentation from UiPath[QueueItem Class] documentation from UiPath[DataRow[] Structure] documentation from Microsoft[Array Class] documentation from Microsoft
