QUESTION: 5

Which storage product allows the pooling of resources to create datastores in a software defined datacenter?

VMware VMFS
VMware Storage I/O Control
VMware HCI Mesh
VMware vSAN

Answer(s): D

Explanation:

VMware vSAN is a storage product that allows the pooling of resources to create datastores in a software defined datacenter. VMware vSAN is a hyper-converged infrastructure solution that integrates compute, storage, and networking resources on industry-standard x86 servers. VMware vSAN aggregates local or direct-attached data storage devices to create a single storage pool shared across all hosts in the vSAN cluster. VMware vSAN enables you to provision and manage storage from the VMware vSphere Web Client or the VMware vCenter Server Appliance Shell. VMware vSAN provides several benefits, such as lower total cost of ownership, simplified management, high performance, scalability, and availability12. Reference := 1: VMware Horizon 8 Documentation: VMware vSAN Overview 2: VMware Horizon 8 Documentation: Benefits of Using VMware vSAN with Horizon 8

Reveal Solution Next Question

QUESTION: 6

DRAG DROP (Drag and Drop is not supported)

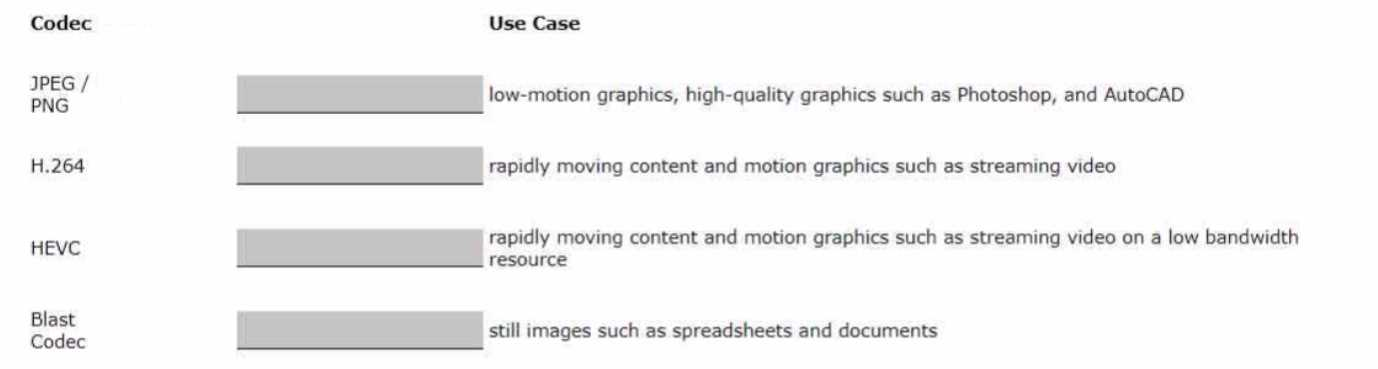

Drag and drop the codecs supported by Blast on the left to the appropriate use case on the right.

See Explanation section for answer.

Answer(s): A

Explanation:

JPEG/PNG - Still images.
H 264: Rapidly moving content and motion graphics such as streaming video, video editing, and gaming.
HEVC: Rapidly moving content on a low bandwidth resource. Proprietary Blast codec: Low-motion graphics, high-quality graphics such as Photoshop, and AutoCAD.

Reveal Solution Next Question

QUESTION: 7

Which three steps are required to entitle user and groups to pools? (Choose three.)

Run the Active Directory entitlement script in the golden master, when preparing if for the pool.
During pool creation in the entitlement pane, click on add, search for users and groups in the Active Directory, continue and finish the pool creation.
During the Pool creation the desired Active Directory OU for the VMs will be specified. This will automatically add the preconfigured associated user group to the Horizon entitlements.
Navigate to Inventory > Desktops > check mark a pool > click on Add Entitlement.
Navigate to Users and Groups > Entitlements > click on Entitlements > click on Add Entitlements, search for users and groups in the Users pane and add the desired desktop pool in the next pane Desktop Pools.

Answer(s): B,D,E

Explanation:

To entitle users and groups to pools, you need to perform the following steps:
During pool creation in the entitlement pane, click on add, search for users and groups in the Active Directory, continue and finish the pool creation. This option allows you to entitle users and groups to a desktop or application pool at the same time as you create the pool3. Navigate to Inventory > Desktops > check mark a pool > click on Add Entitlement. This option allows you to add entitlements to an existing desktop or application pool after you create the pool4. Navigate to Users and Groups > Entitlements > click on Entitlements > click on Add Entitlements, search for users and groups in the Users pane and add the desired desktop pool in the next pane Desktop Pools. This option allows you to review and manage the entitlements for users and groups from a single location5.
The other options are not required or valid for entitling users and groups to pools. Running the Active Directory entitlement script in the golden master is not necessary as Horizon 8 automatically synchronizes with Active Directory domains that are configured in Horizon Console6. Specifying the desired Active Directory OU for the VMs during pool creation does not automatically add the preconfigured associated user group to the Horizon entitlements as you still need to select the users or groups from the search results7. Reference := 3: VMware Horizon 8 Documentation: Add Entitlements During Pool Creation 4: VMware Horizon 8 Documentation: Add Entitlements After Pool Creation 5: VMware Horizon 8 Documentation: Review and Manage Entitlements 6: VMware Horizon 8 Documentation: Active Directory Requirements for Horizon Connection Server 7: VMware Horizon 8 Documentation: Create an Automated Desktop Pool

Reveal Solution Next Question

QUESTION: 8

An administrator is creating an instant clone desktop pool and needs to enable NVIDIA Grid 3D

Rendering. NVIDIA GRID vGPU and drivers are installed on the physical ESXi hosts. In Horizon Console, when creating an instant-clone pool, the NVIDIA GRID vGPU option is not available in the 3D Render field.
Which two of the following could be the reason for the issue? (Choose two.)

Horizon 8 does not have an explicit 3D renderer option for instant clone. Select Manage Using vSphere Client in the 3D Render field. Instant-clones inherit the settings configured in the vSphere Client for the golden image.
In Horizon Console, when an instant-clone pool is created, the golden image and snapshot that the administrator selected has not been configured for NVIDIA GRID vGPU.
The administrator has selected Shared when editing the Host Graphics Settings for the ESXi host in the vCenter Server.
Instant-clone pools do not support NVIDIA GRID vGPU.
The administrator has selected Shared Direct when editing the Host Graphics Settings for the ESXi host in the vCenter Server.

Answer(s): A,B

Explanation:

To enable an instant-clone pool to use NVIDIA GRID vGPU, the administrator needs to do the following:
Install NVIDIA GRID vGPU in the physical ESXi hosts and select Shared Direct in the Host Graphics Settings12.
Prepare a golden image with NVIDIA GRID vGPU configured, including selecting the vGPU profile to use12.
Take a snapshot of the golden image12.
In Horizon Console, when creating an instant-clone pool, select Manage Using vSphere Client in the 3D Render field. Instant-clones inherit the settings configured in the vSphere Client for the golden image12.
Therefore, the possible reasons for the issue are:
The administrator has selected Shared instead of Shared Direct when editing the Host Graphics Settings for the ESXi host in the vCenter Server. This option is for vSGA, not vGPU3. The golden image and snapshot that the administrator selected has not been configured for NVIDIA GRID vGPU. The administrator needs to verify that the correct vGPU profile is selected and that the NVIDIA drivers are installed in the golden image4.
The other options are not valid because:

Horizon 8 does have an explicit 3D renderer option for instant clone, but it is Manage Using vSphere Client, not NVIDIA GRID vGPU12.
Instant-clone pools do support NVIDIA GRID vGPU as long as the ESXi hosts and the golden image are properly configured12.

Reveal Solution Next Question
