WatchGuard Essentials Exam
Fireware Essentials (Page 2 )

Updated On: 1-Feb-2026
Page 2 of 16
PDF with 75 Questions

When your device is in a default state, to which interface do you connect your management computer so you can use the Quick Setup Wizard or Web Setup Wizard to configure the device?

  1. Interface 0
  2. Console interface
  3. Any interface
  4. Interface 1

Answer(s): D

Explanation:

To start the Web Setup Wizard, connect your computer to interface number 1 of your XTM device with an Ethernet cable. This is the trusted interface.


Reference:

http://www.watchguard.com/help/docs/wsm/xtm_11/en-US/index.html#en-US/installation/qsw_web_about_c.html

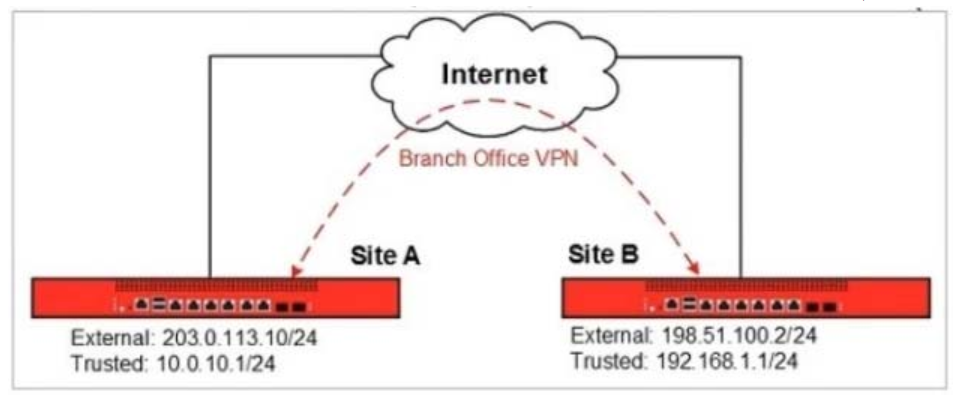

In this diagram, which branch office VPN tunnel route must you add on the Site A Firebox to allow traffic between devices on the trusted network at Site A and the trusted network at site B?

  1. Local: 192.168.1.0/24 <--> Remote: 10.0.10.0/24
  2. Local: 203.0.113.10/24 <--> Remote: 198.151.100.2/24
  3. Local: 10.0.10.1/24 <--> Remote: 192.168.1.1/24
  4. Local: 10.0.10.0/24 <--> Remote: 192.168.1.0/24

Answer(s): C

Explanation:

The local, Site A, network is 10.0.10.1/24 while the remote, Site B, network is 192.168.1.1/24.



From the Fireware Web UI, you can generate a report that shows your device configuration settings.

  1. True
  2. False

Answer(s): A



What is one reason that users could see a certificate warning in their web browsers when they connect to Fireware XTM Web UI?

  1. The Firebox or XTM device uses the default self-signed certificate.
  2. The authentication server does not respond after three minutes.
  3. The user has been previously added to the Blocked Sites list.
  4. The user or group is not present in the Firebox User database.

Answer(s): A



How can you prevent connections to the Fireware Web UI from computers on optional interface Eth2?

  1. Remove Eth2 from the Any-Optional alias.
  2. Remove Any-Optional from the To list of the WatchGuard Web UI policy.
  3. Remove Any-Optional from the From list of the WatchGuard policy.
  4. Remove Any-Optional from the To list of the WatchGuard policy
  5. Remove Any-Optional from the From list of the WatchGuard Web UI policy

Answer(s): E



Viewing page 2 of 16
Viewing questions 6 - 10 out of 75 questions
