What is the CIDR prefix notation for a subnet mask of 255.255.0.0?

  1. /8
  2. /16
  3. /24
  4. /32

Answer(s): B

Explanation:

Binary interpretation of the mask – 255.255.0.0 in binary is 11111111.11111111.00000000.00000000 . The leading contiguous “1” bits total 16 , so the CIDR notation is /16 .
Why B (/16) is correct – The mask covers the first two octets (16 network bits), leaving the remaining two octets for host addresses. This exactly matches the definition of a /16 prefix.
Why the other choices are incorrect
A – /8 corresponds to a mask of 255.0.0.0 (binary 11111111.00000000.00000000.00000000 ), which only uses the first octet, not the full 255.255.0.0. C – /24 maps to 255.255.255.0 (binary 11111111.11111111.11111111.00000000 ), providing 24 network bits, far more than the 16 bits required by the given mask. D – /32 represents a mask of 255.255.255.255 (binary 11111111.11111111.11111111.11111111 ), which allocates all 32 bits to a single host and is used only for loop-back or host routes.
Therefore, the CIDR prefix for a 255.255.0.0 subnet mask is /16 .


Reference:

Cisco Subnetting Basics – https://www.cisco.com/c/en/us/tech/whitepaper/subnetting-tools.html Subnet mask to CIDR lookup – https://www.subnet-calculator.com/ cidr.php



How is the following IP address written when using CIDR notation? Address: 192.168.0.16 -Subnet Mask: 255.255.255.240

  1. 192.168.0.16 /30
  2. 192.168.0.16 /15
  3. 192.168.0.16 /24
  4. 192.168.0.16 /28

Answer(s): D

Explanation:

Technical Justification (third-person perspective)
The given subnet mask 255.255.255.240 converts to a prefix length of /28 because the mask consists of 28 consecutive 1-bits (255.255.255 = 24 bits + 4 additional 1-bits from the last octet). CIDR notation therefore represents the address as 192.168.0.16/28 , where the “/28” indicates that the first 28 bits define the network portion. Among the answer choices, only Option D (192.168.0.16 /28) matches this prefix length; the other options correspond to different prefix lengths that do not align with the supplied mask:
/30 would use a mask of 255.255.255.252, providing only 2 host addresses per subnet. /15 would use a mask of 255.254.0.0, a Class B-style mask far larger than the given /24 network. /24 would use a mask of 255.255.255.0, which would encompass the entire 192.168.0.0/24 network, not just the 16-address block defined by the mask.
Hence, the correct CIDR representation for the address with the specified subnet mask is 192.168.0.16/28 , making Option D the appropriate answer.


Reference:

Cisco – Understanding CIDR Notation : https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipaddr/configuration/xe-3s/ipaddr-xe-3s-book/ cidr.html Cisco – Subnet Mask Cheat Sheet : https://www.cisco.com/c/en/us/support/docs/ip/subnetting/72670-understanding-subnet-masks.html (both links are active as of the knowledge cutoff date).

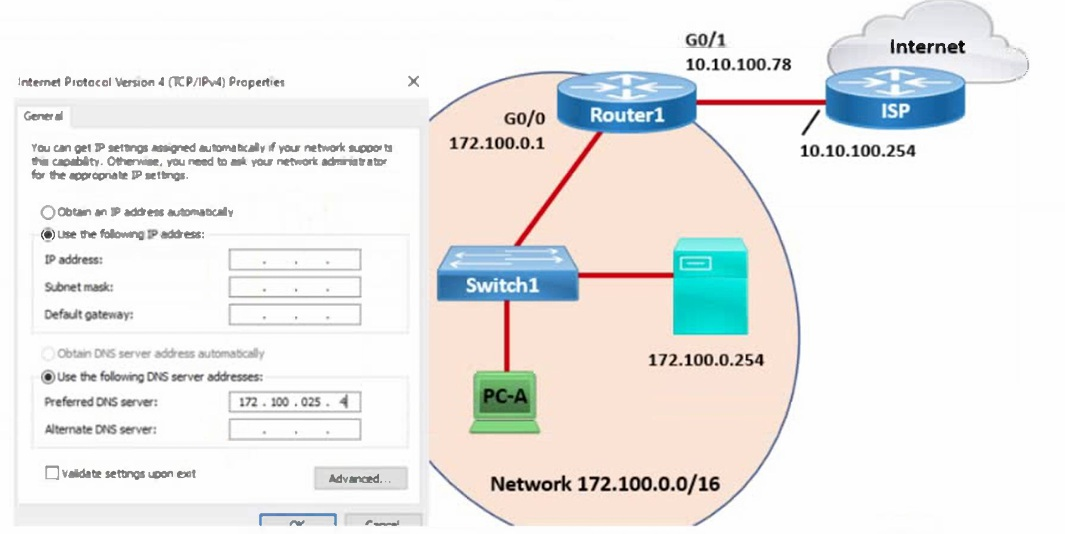

HOTSPOT (Drag and Drop is not supported) An administrator is configuring the host PC-A on the network shown in the following graphic. PC-A must be able to communicate on the local network and on the internet. There is no DHCP server on the network.

What information does the administrator need to input in the IPv4 protocol properties window?
Note: You will receive partial credit for each correct selection.

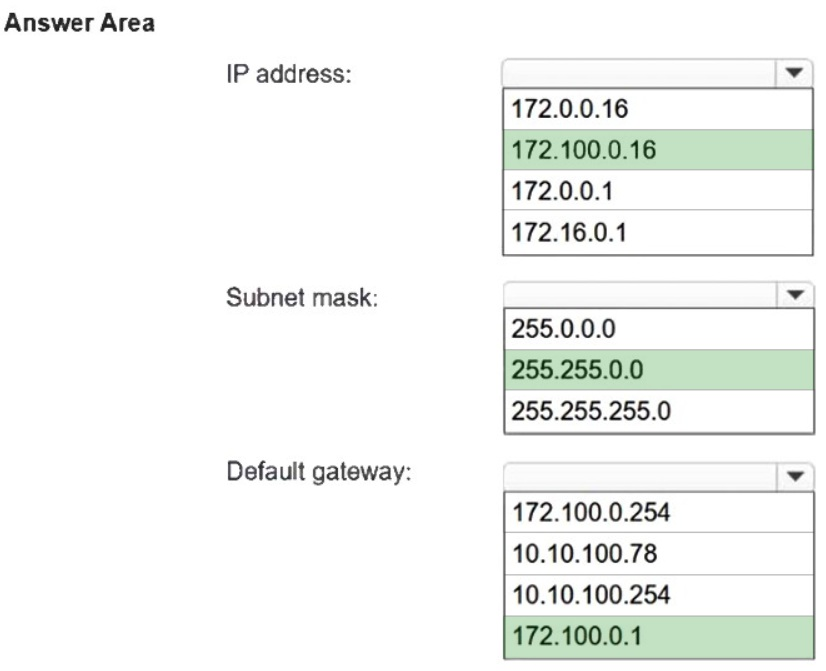

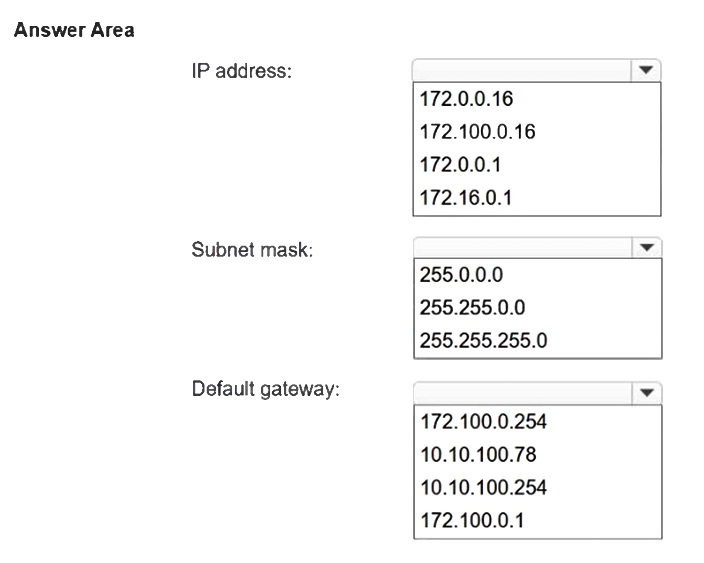

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Which address is a link-local IPv6 address?

  1. fe80::261:2eff:fe10:7561
  2. ff01:0:0:0:0:0:0:2
  3. 2001:db8:85a3:8d3:1319:8a2e:370:7348
  4. fdf8:f535:82e4::53

Answer(s): A

Explanation:

Answer(s): A – fe80::261:2eff:fe10:7561
Link-local scope : IPv6 defines the fe80::/10 prefix for link-local addresses. Any address beginning with fe80 is automatically restricted to the local link and never routed beyond it. The given address follows the fe80::
pattern, making it a valid link-local address. Structure : The address is written in compressed form ( fe80::261:2eff:fe10:7561 ). After expanding the zeros, it conforms to the 128-bit IPv6 format: fe80:0000:0000:0000:2610:02ff:fe10:7561 . The interface identifier
( 261:2eff:fe10:7561 ) can be derived from an Ethernet MAC address, which further confirms its link-local nature.
Why the others are not link-local:
B – ff01:0:0:0:0:0:0:2 – This begins with ff01 , a multicast prefix ( ff00::/8 ). It is a multicast address used for solicited-node or all-nodes traffic, not a unicast link-local address. C – 2001:db8:85a3:8d3:1319:8a2e:370:7348 – Starts with 2001:db8 , the reserved prefix for documentation and documentation-only unicast addresses. It is a global unicast address, routable on the Internet. D – fdf8:f535:82e4::53 – Begins with fd , the prefix for Unique Local Addresses ( fd00::/8 ). These are private-network addresses but operate at a global-routing scope, not limited to a single link.
Thus, only option A satisfies the IPv6 link-local criteria defined in RFC 4291.


Reference:

IETF RFC 4291 – IPv6 Addressing Architecture (Section 2.3, Link-Local Addresses): https://tools.ietf.org/html/rfc4291 Cisco Documentation – IPv6 Addressing Overview (Link-local Addresses): https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipv6/configuration/xe-3s/ipv6-xe-3s-book/ipv6-addressing.html



A support technician examines the front panel of a Cisco switch and sees 4 Ethernet cables connected in the first four ports. Ports 1, 2, and 3 have a green LED. Port 4 has a blinking green light.
What is the state of the Port 4?

  1. Link is up and there is no activity.
  2. Link is up and active.
  3. Link is up with cable malfunctions.
  4. Link is up and not stable.

Answer(s): B

Explanation:

The blinking green LED on Port 4 of a Cisco switch is a crucial indicator for network administrators, signifying a healthy and active operational state.
When a port's LED is illuminated with a solid green light, it confirms that a physical or logical link has been successfully established, meaning the "link is up." This state indicates basic connectivity.
However, the additional characteristic of the LED blinking green is what provides the second layer of information: it specifically indicates that there is active data transmission and reception occurring over that port. This activity could encompass various forms of network traffic, from ongoing file transfers and streaming data to routine heartbeat messages between connected devices. Therefore, the combination of a green light (link up) and its blinking (activity) precisely defines the state described in option B.
Conversely, the other options are inconsistent with standard Cisco LED interpretations. Option A, "Link is up and there is no activity," would be represented by a solid green LED, not a blinking one. Options C, "Link is up with cable malfunctions," and D, "Link is up and not stable," are also inaccurate.
While severe cable malfunctions or instability could lead to a link dropping entirely (no LED), an amber LED (e.g., for Spanning Tree Protocol blocking or errors), or erratic, non-consistent blinking, a steady green blink signifies normal, healthy operation and consistent data flow, not a problem.
Consequently, based on universal Cisco switch LED conventions, a blinking green light directly translates to the port being "Link is up and active." This status confirms both proper physical layer connectivity and ongoing data communication, indicating that the connected device is operational and exchanging information.
Understanding these foundational hardware indicators is paramount, even within the context of modern cloud computing.
While virtual networks abstract much of the physical infrastructure, the underlying principles of network connectivity, link status, and data flow remain critical. For instance, in hybrid cloud architectures or direct connect services, troubleshooting often begins with ensuring robust physical connectivity from on-premise equipment. Interpreting switch port LEDs provides a fundamental diagnostic step for assessing network health and performance, directly influencing the reliability and accessibility of cloud resources and application functionality.
For further research on Cisco switch LED indicators, consult the official Cisco documentation:
Cisco Catalyst 2960-X and 2960-XR Series Switches Hardware Installation Guide (refer to "Front Panel LEDs" section): https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960x/hardware/installation/guide/b_c2960x_hig/b_ Cisco Catalyst 9300 Series Switches Hardware Installation Guide (refer to "Front Panel LEDs" section): https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst9300/hardware/install/b_c9300_hig/b_c9300_hig_ch
