Free Cisco® 200-301 Exam Braindumps (page: 53)

Page 53 of 350
PDF with 1395 Questions

Which command should you enter to configure an LLDP delay time of 5 seconds?

  1. lldp timer 5000
  2. lldp holdtime 5
  3. lldp reinit 5000
  4. lldp reinit 5

Answer(s): D

Explanation:

-lldp holdtime seconds: Specify the amount of time a receiving device should hold the information from your device before discarding it
-lldp reinit delay: Specify the delay time in seconds for LLDP to initialize on an interface
-lldp timer rate: Set the sending frequency of LLDP updates in seconds


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3560/software/release/12-2_55_se/configuration/guide/3560_scg/swlldp.html



In a CDP environment, what happens when the CDP interface on an adjacent device is configured without an IP address?

  1. CDP becomes inoperable on that neighbor
  2. CDP uses the IP address of another interface for that neighbor
  3. CDP operates normally, but it cannot provide IP address information for that neighbor
  4. CDP operates normally, but it cannot provide any information for that neighbor

Answer(s): B



DRAG DROP (Drag and Drop is not supported)

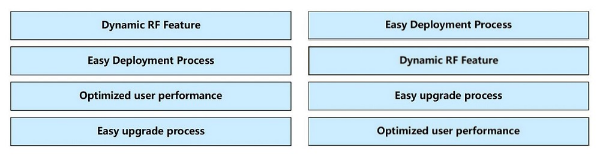

Drag and drop the benefits of a Cisco Wireless Lan Controller from the left onto the correct examples on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



When configuring an EtherChannel bundle, which mode enables LACP only if a LACP device is detected?

  1. Passive
  2. Desirable
  3. On
  4. Auto
  5. Active

Answer(s): A

Explanation:

The LACP is Link Aggregation Control Protocol. LACP is an open protocol, published under the 802.3ad.
The modes of LACP are active, passive or on. The side configured as “passive” will waiting the other side that should an Active for the Etherchannel to be established.
PAgP is Port-Aggregation Protocol. It is Cisco proprietary protocol. The mode are On, Desirable or Auto. Desirable “" Auto will establish an EtherChannel.
An example of how to configure an Etherchannel:

SwitchFormula1>enable -
SwitchFormula1#configure terminal
SwitchFormula1(config)# interface range f0/5 -14
SwitchFormula1(config-if-range)# channel-group 13 mode ?
active Enable LACP unconditionally
auto Enable PAgP only if a PAgP device is detected
desirable Enable PAgP unconditionally
on Enable Etherchannel only
passive Enable LACP only if a LACP device is detected



Viewing page 53 of 350
Viewing questions 209 - 212 out of 1395 questions
