QUESTION: 117

To increase total throughput and redundancy on the links between the wireless controller and switch, the customer enabled LAG on the wireless controller.
Which EtherChannel mode must be configured on the switch to allow the WLC to connect?

Active
Passive
On
Auto

Answer(s): C

Reference:

https://community.cisco.com/t5/wireless-mobility-documents/lag-link-aggregation/ta-p/3128669

Show Answer Next Question

QUESTION: 118

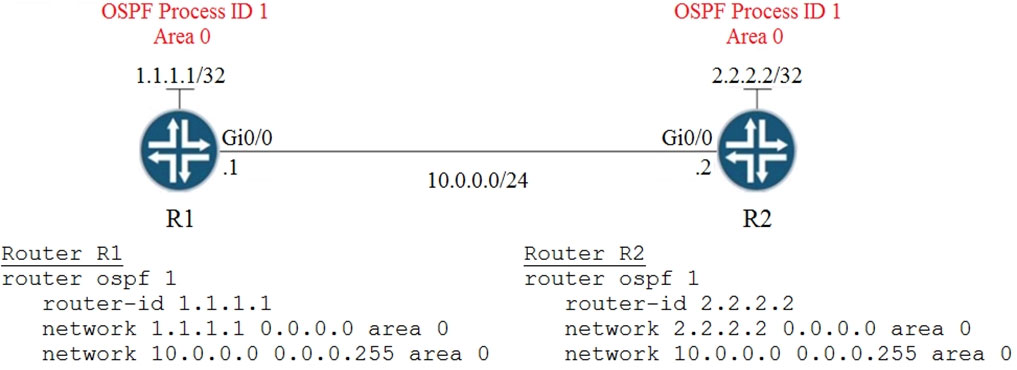

Based on this interface configuration, what is the expected state of OSPF adjacency?

2WAY/DROTHER on both routers
not established
FULL on both routers
FULL/BDR on R1 and FULL/BDR on R2

Answer(s): B

Show Answer Next Question

QUESTION: 119

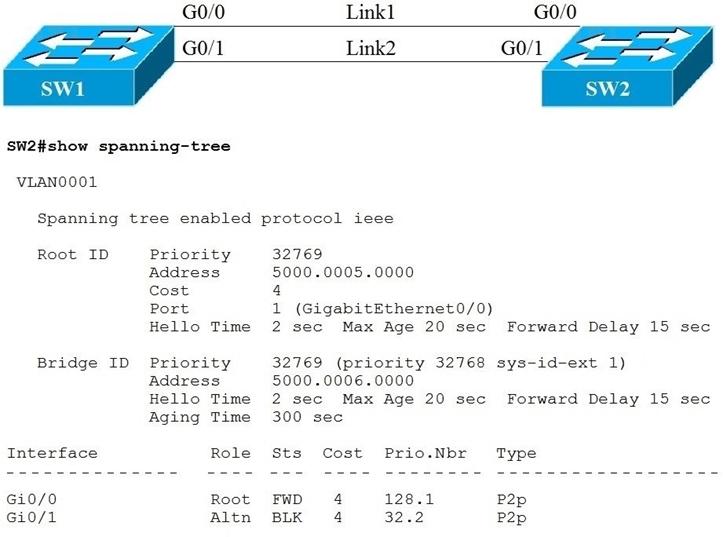

Refer to the exhibit.
Link1 is a copper connection and Link2 is a fiber connection. The fiber port must be the primary port for all forwarding. The output of the show spanning-tree command on SW2 shows that the fiber port is blocked by spanning tree. An engineer enters the spanning-tree port-priority 32 command on G0/1 on SW2, but the port remains blocked.
Which command should be entered on the ports that are connected to Link2 to resolve the issue?

Enter spanning-tree port-priority 4 on SW2.
Enter spanning-tree port-priority 32 on SW1.
Enter spanning-tree port-priority 224 on SW1.
Enter spanning-tree port-priority 64 on SW2.

Answer(s): B

Show Answer Next Question

QUESTION: 120

Which behavior can be expected when the HSRP version is changed from 1 to 2?

No changes occur because the standby router is upgraded before the active router.
No changes occur because version 1 and 2 use the same virtual MAC OUI.
Each HSRP group reinitializes because the virtual MAC address has changed.
Each HSRP group reinitializes because the multicast address has changed.

Answer(s): C

Show Answer Next Question
