Free Cisco® 350-401 Exam Braindumps (page: 43)

Page 43 of 268
PDF with 1067 Questions

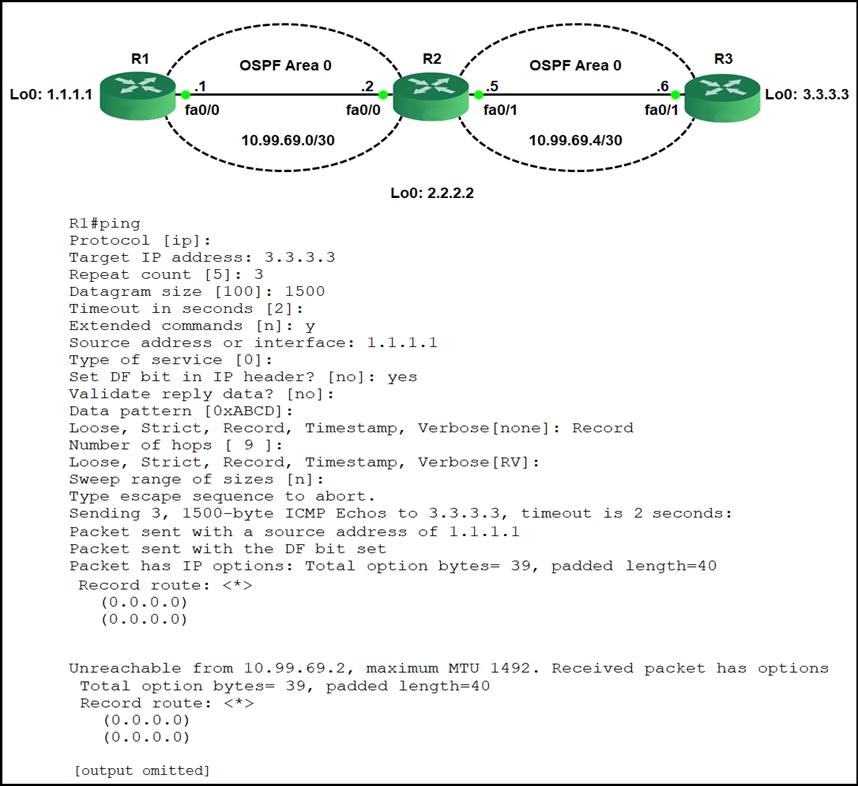

Refer to the exhibit. R1 is able to ping the R3 fa0/1 interface.
Why do the extended pings fail?

  1. The maximum packet size accepted by the command is 1476 bytes.
  2. The DF bit has been set.
  3. R3 is missing a return route to 10.99.69.0/30.
  4. R2 and R3 do not have an OSPF adjacency.

Answer(s): B

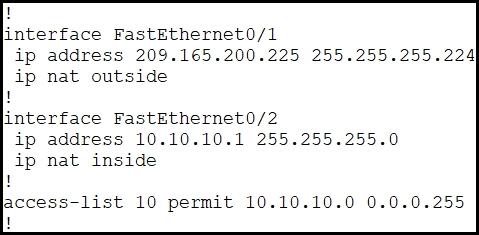

Refer to the exhibit.
Which command allows hosts that are connected to FastEthernet0/2 to access the Internet?

  1. ip nat inside source list 10 interface FastEthernet0/2 overload
  2. ip nat inside source list 10 interface FastEthernet0/1 overload
  3. ip nat outside source static 209.165.200.225 10.10.10.0 overload
  4. ip nat outside source list 10 interface FastEthernet0/2 overload

Answer(s): B

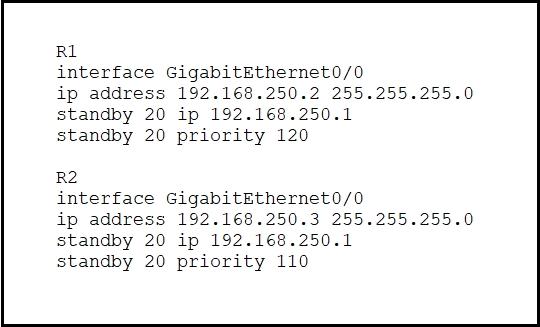

Refer to the exhibit.
What are two effects of this configuration? (Choose two.)

  1. If R1 goes down, R2 becomes active but reverts to standby when R1 comes back online.
  2. If R2 goes down, R1 becomes active but reverts to standby when R2 comes back online.
  3. R1 becomes the active router.
  4. R1 becomes the standby router.
  5. If R1 goes down, R2 becomes active and remains the active device when R1 comes back online.

Answer(s): C,E

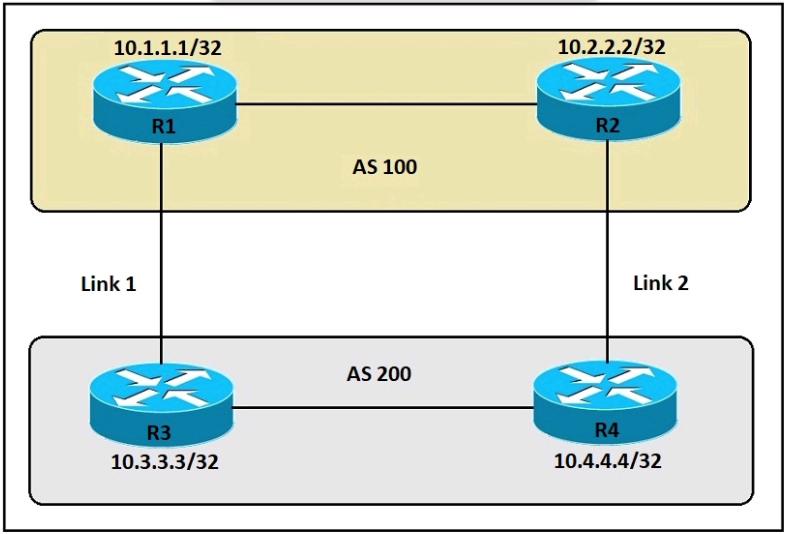

Refer to the exhibit. An engineer must ensure that all traffic entering AS 200 from AS 100 chooses Link 2 as an entry point. Assume that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers.
Which configuration accomplishes this task?

  1. R3(config)#route-map PREPEND permit 10 R3(config-route-map)#set as-path prepend 200 200 200 R3(config)#router bgp 200 R3#(config-router)#neighbor 10.1.1.1 route-map PREPEND out
  2. R4(config)#route-map PREPEND permit 10 R4(config-route-map)#set as-path prepend 100 100 100 R4(config)#router bgp 200 R4(config-router)#neighbor 10.2.2.2 route-map PREPEND in
  3. R4(config)#route-map PREPEND permit 10 R4(config-route-map)#set as-path prepend 200 200 200 R4(config)#router bgp 200 R4(config-router)#neighbor 10.2.2.2 route-map PREPEND out
  4. R3(config)#route-map PREPEND permit 10 R3(config-route-map)#set as-path prepend 100 100 100 R3(config)#router bgp 200 R3(config-router)#neighbor 10.1.1.1 route-map PREPEND in

Answer(s): A



Viewing page 43 of 268
Viewing questions 169 - 172 out of 1067 questions
