Free 350-601 Exam Braindumps (page: 16)

Page 15 of 125
PDF with 499 Questions

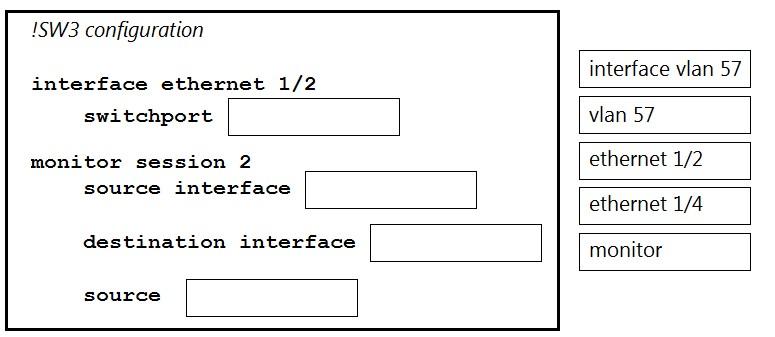

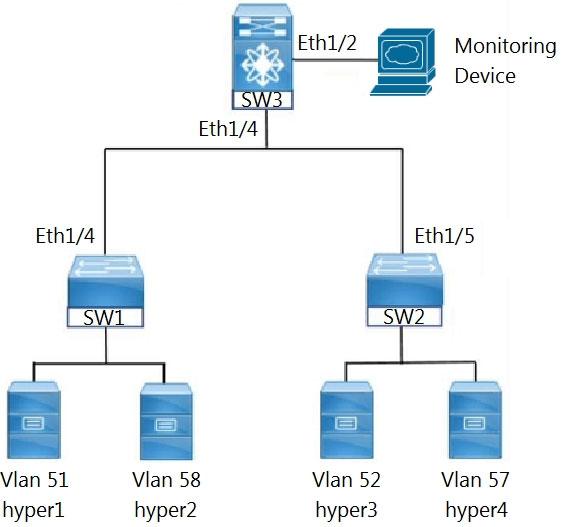

Refer to the exhibit.


An engineer must monitor ingress traffic from SW1 and SW2 port-channel interfaces from SW3. Which configuration must be implemented to accomplish this goal?

  1. SW3# configure terminal
    SW3(config)# source interface port-channel 1 rx
    SW3(config)# source interface port-channel 2 tx

    SW3(config)# interface ethernet 1/4
    SW3(config-if)# destination interface ethernet 1/4
    SW3(config-if)# exit

    SW3(config)# interface Port-channel 1-2
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit
  2. SW3# configure terminal
    SW3(config)# monitor session 2
    SW3(config-monitor)# source interface port-channel 1 rx
    SW3(config-monitor)# source interface port-channel 2 rx

    SW3(config)# interface ethernet 1/4
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit

    SW3(config)# monitor session 2
    SW3(config-monitor)# destination interface ethernet 1/4
  3. SW3# configure terminal

    SW3(config)# monitor session 2
    SW3(config-monitor)# source interface port-channel 1 tx
    SW3(config-monitor)# source interface port-channel 2 tx

    SW3(config)# interface Port-channel 1
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit

    SW3(config)# interface Port-channel 2
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit
  4. SW3# configure terminal
    SW3(config)# monitor session 2
    SW3(config-monitor)# source interface port-channel 1 tx
    SW3(config-monitor)# source interface port-channel 2 rx

    SW3(config)# interface port-channel 1
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit

    SW3(config)# interface port-channel 2
    SW3(config-if)# switchport monitor
    SW3(config-if)# exit

Answer(s): B



Refer to the exhibit.


A host with a source address 10.10.10.10 sends traffic to multicast group 239.1.1.1. How do the vPC switches forward the multicast traffic?

  1. If multicast traffic is received on Switch1 over the vPC peer-link, the traffic is dropped
  2. If multicast traffic is received on Po10 Switch1, the traffic is forwarded out on Po1 and Po20
  3. If multicast traffic is received on Po11 Switch2, the traffic is forwarded out only on Po20
  4. If multicast traffic is received on Po11 Switch2, the traffic is dropped.

Answer(s): D



A network architect must redesign a data center network based on OSPFv2. The network must perform fast reconvergence between directly connected switches. Which two actions must be taken to meet the requirements? (Choose two.)

  1. Set low OSPF hello and DEAD timers.
  2. Configure all links on AREA 0.
  3. Enable BFD for failure detection.
  4. Use OSPF point-to-point links only.
  5. Implement a virtual link between the switches.

Answer(s): C,D



Refer to the exhibit.



Which configuration ensures that the Cisco Nexus 7000 Series Switches are the primary devices for LACP?

  1. N7K_A(config-vpc-domain)# role priority 1
    N7K_B(config-vpc-domain )# role priority 2
  2. N7K_A(config-vpc-domain)# system-priority 32768
    N7K_B(config-vpc-domain)# system-priority 32768
  3. N7K_A(config-vpc-domain)# system-priority 100
    N7K_B(config-vpc-domain)# system-priority 200
  4. N7K_A(config-vpc-domain)# system-priority 4000
    N7K_B(config-vpc-domain)# system-priority 4000

Answer(s): D
