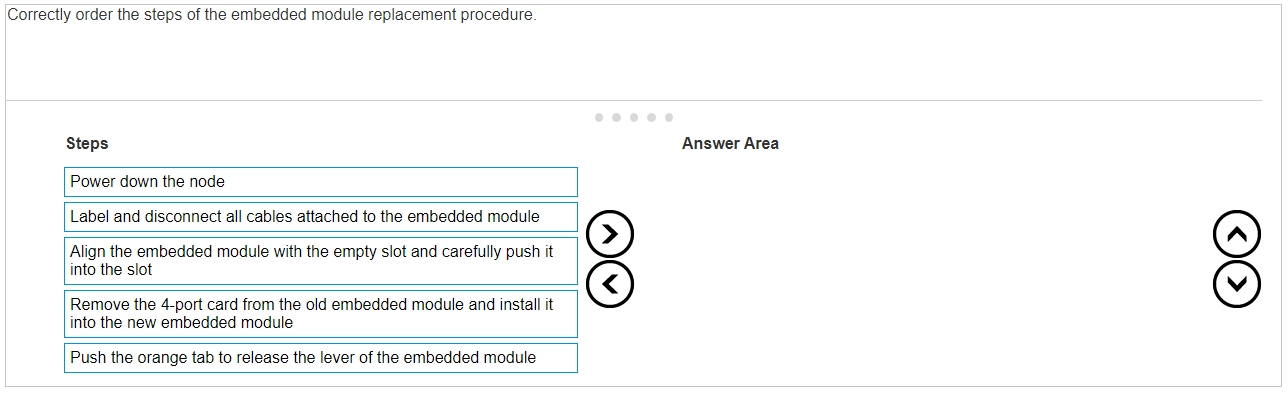

DRAG DROP (Drag and Drop is not supported)Correctly order the steps of the embedded module replacement procedure.
Answer(s): A

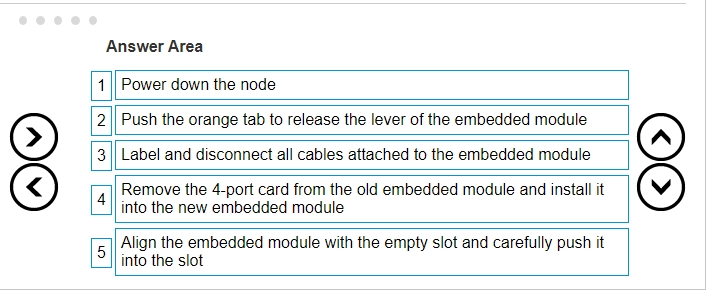

The correct order of steps for the embedded module replacement procedure is:Power down the nodePush the orange tab to release the lever of the embedded module Label and disconnect all cables attached to the embedded module Remove the 4-port card from the old embedded module and install it into the new embedded moduleAlign the embedded module with the empty slot and carefully push it into the slotThe procedure for replacing an embedded module in a Dell PowerStore system is a critical task that should be performed with care. Here is a detailed explanation of each step:Power down the node: Ensure that the node is properly powered down to avoid any electrical hazards or data corruption. This step is crucial for the safety of both the technician and the system. Push the orange tab to release the lever of the embedded module: Locate the orange tab on the embedded module and push it to release the lever. This action will unlock the module from its slot. Label and disconnect all cables attached to the embedded module: Before removing the embedded module, label all cables for easy reconnection later. Then, carefully disconnect each cable to free the module.Remove the 4-port card from the old embedded module and install it into the new embedded module: Transfer the 4-port card from the old module to the new one. Handle the card with care to avoid damage to the electronic components.Align the embedded module with the empty slot and carefully push it into the slot: Carefully align the new embedded module with the guides in the empty slot and gently push it into place until it is securely seated.After completing these steps, reconnect the cables as per the labels, and power up the node to verify the operation of the new embedded module. For detailed instructions and safety information, refer to the Dell PowerStore Installation and Service Guide. It is important to follow these guidelines closely to ensure the replacement is performed correctly and the system operates smoothly after the procedure.

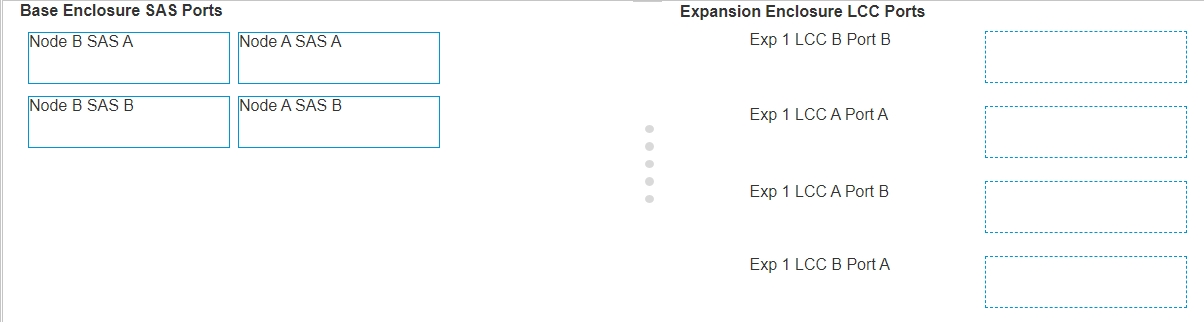

DRAG DROP (Drag and Drop is not supported)Match the base enclosure SAS ports in column A to their corresponding expansion enclosure LCC ports in column B; when connecting a PowerStore base enclosure to a single expansion enclosure.
To match the base enclosure SAS ports in column A to their corresponding expansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:Node B SAS A to Exp 1 LCC A Port BNode A SAS A to Exp 1 LCC B Port ANode B SAS B to Exp 1 LCC A Port ANode A SAS B to Exp 1 LCC B Port BStep by Step Comprehensive Detailed Explanation with Reference Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure. Match the ports according to the configuration provided above. Connect the cables between the corresponding SAS and LCC ports.Secure the connections to ensure there is no loose cabling. Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.
While on-site installing a Dell EMC PowerStore T system, the node A embedded module management Ethernet port link LED is off. What does this indicate?
Answer(s): D
When the link LED of the node A embedded module management Ethernet port is off, it indicates that there is no network connection established. The link LED is typically used to indicate the presence of a network connection and its status. If the LED is off, it means that the Ethernet port is not currently connected to a network or there is an issue preventing the connection from being established.In the case of the Dell EMC PowerStore T system, the embedded module management Ethernet ports are used for network management traffic. It is essential that these ports have an active network connection for the system to be managed remotely. If the link LED is off, the following steps should be taken:Check the physical connection of the Ethernet cable to ensure it is securely plugged into both the node's port and the corresponding switch or router port. Verify that the switch or router is powered on and functioning correctly. Ensure that the correct port on the switch or router is being used and that it is configured correctly for the PowerStore system.If the issue persists after checking the physical connections and switch/router configuration, consult the Dell EMC PowerStore T Installation and Service Manual for further troubleshooting steps. It is important to resolve any network connection issues promptly to maintain the manageability and accessibility of the PowerStore system. Following the official Dell documentation and support resources will help ensure that the system is installed and configured correctly for optimal performance and reliability.
How is a service laptop IP configured to connect to the Service LAN port of a Dell EMC PowerStore node?
Answer(s): C
To connect a service laptop to the Service LAN port of a Dell EMC PowerStore node, the laptop's Ethernet interface should be configured with a static IP address and netmask. The correct configuration is:IP: 128.221.1.249Netmask: 255.255.255.0Gateway: None1This configuration allows the service laptop to communicate with the PowerStore nodes for SSH and PowerStore Manager (UI) access. It's important to note that the laptop can be physically connected to one of the PowerStore nodes at a time, or to both nodes' Service LAN ports using a small switch or hub. However, multiple appliances should never be connected to the same hub or switch as the nodes use the same internal IPs.Once the IP is configured as shown above and the physical connection is established, you can ping the relevant IPs:Node A: 128.221.1.250Node B: 128.221.1.251You should only be able to ping the IPs where you are physically connected to. If you can ping, you can proceed to use SSH to connect to the IPs over port 22 using your preferred SSH client. For file transfers, SCP protocol must be used.For more detailed instructions on how to connect to the system over the Service LAN Ports for SSH and PowerStore Manager access, refer to the Dell Support Knowledge Base Article.
Which reference source provides service information and FRU procedures for Dell EMC PowerStore?
The SolVe Tool is the reference source that provides service information and Field Replaceable Unit (FRU) procedures for Dell EMC PowerStore. The SolVe Tool is an online resource that offers step-by- step guidance for various procedures, including servicing and replacing hardware components, also known as FRUs.The tool is designed to help users and service technicians perform maintenance tasks accurately and efficiently. It includes detailed instructions, diagrams, and other helpful information that can assist in troubleshooting and resolving issues with Dell EMC PowerStore systems. For accessing the SolVe Tool and finding the service information and FRU procedures for PowerStore, users can visit the Dell Support website and navigate to the SolVe Online section. Additionally, the PowerStore Info Hub provides a collection of product documentation and videos that can be useful for understanding the system's operation and maintenance. It is important to use the SolVe Tool and follow the provided instructions carefully to ensure that any service actions are performed correctly and safely, maintaining the integrity and performance of the PowerStore system.
