F5 101 Exam
Application Delivery Fundamentals Exam (Page 5 )

Updated On: 1-Feb-2026
Page 5 of 93
PDF with 460 Questions

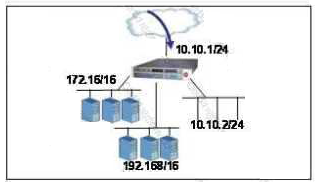

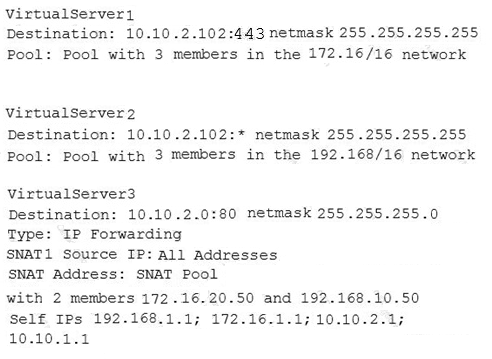

An LTM has the 3 virtual servers, four self IP addresses defined and the networks shown in the exhibit. Selected options for each object are shown below. Settings not shown are at their defaults.

A connection attempt is made with a source IP and port of 10.20.100.50:2222 and a destination
IP and port of 10.10.2.102:80.
When the request is processed, what will be the destination IP address?

  1. Destination IP: 10.10.2.102
  2. The request will be dropped.
  3. Destination IP: pool member in the 192.168/16 network
  4. Destination IP: pool member in the 172.16/16 network

Answer(s): C



Which is the result when multiple monitors are assigned to a pool member?

  1. The member is marked available if sufficient monitors succeed, and as unavailable if insufficient monitors succeed.
  2. The member is marked as available if any of the monitors succeed.
  3. The member is marked as unavailable if any of the monitors fails.
  4. The member is marked available if all monitors succeed, and as marginal if one or more monitors fail(s).

Answer(s): A



Which two statements are true concerning capabilities of current BIG-IP platforms? (Choose two.)

  1. The 1600 hosts more ports than the 3900.
  2. All current BIG-IP platform use both an A SIC. And CPU(s) to process traffic.
  3. All current BIG-IP platform can perform hardware compression.
  4. Only 2U BIG-IP Platform have an option of a second power supply.
  5. All BIG-IP have capacity to perform bulk encryption I decryption of SSL traffic independent of the CPU.

Answer(s): B,E



Which is a potential result when a trunk is configured on a BIG-IP?

  1. No additional trunks can be configuration since each BIG-IP is limited to one trunk
  2. Packets flowing to the VLAN could arrive on any of the interfaces in the trunk
  3. Since any VLANs associated with the trunk are necessarily associated with multiple interfaces, the VLAN using the must use tagged packets.
  4. VLAN failsafe is not available for any VLAN associated with any trunks.

Answer(s): B



A BIG-IP has the following objects configured: A SNAT pool with 2 members:

A virtual server at 150.10.30.30:80 that is associated with both the SNAT pool and the load balancing pool. If a client at IP address 200.10.10.10 initiates a connection to the virtual server, what will the source IP address be in the packets sent to the chosen pool member?

  1. 150.10.30.30
  2. 150.10.33.33
  3. 10.10.1.10
  4. It could be any of the addresses of the members of the load balancing pool.
  5. 10.10.1.33
  6. 200.10.10.10

Answer(s): E



Viewing page 5 of 93
Viewing questions 21 - 25 out of 460 questions
