F5 101 Exam
Application Delivery Fundamentals Exam (Page 6 )

Updated On: 1-Feb-2026
Page 6 of 93
PDF with 460 Questions

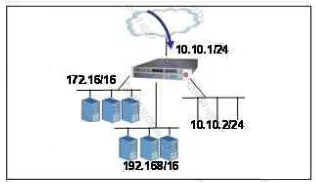

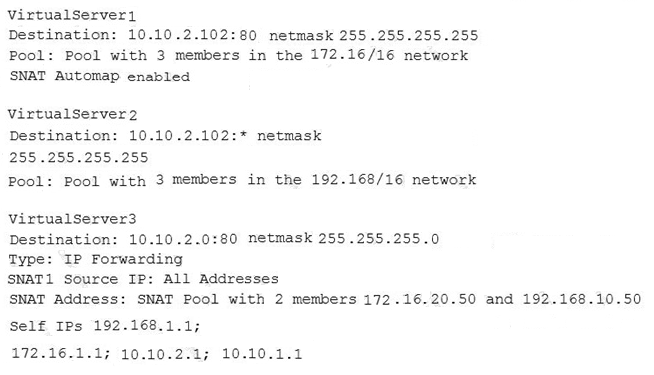

Click the Exhibit Button an LTM has the 3 virtual servers, a SNAT defined, four self IP addresses defined, and the networks shown in the exhibit. Selected options for each object are shown below. Settings not shown are at their defaults.


A connection attempt is made with a source IP and port of 10.20.100.50:80 and a destination IP and port of 10.10.2.10:80. When the request is processed, what will be the source and destination IP addresses?

  1. The request will be dropped.
  2. Source IP: Either 172.16.20.50 or 192.168.10.50; Destination IP: 10.10.2010
  3. Source IP: 10.20.100.50; Destination IP: 10.10.2.10
  4. Source IP: 10.10.2.1; Destination IP: 10.10.2.10

Answer(s): B



Which statement concerning virtual servers is true?

  1. Virtual servers can keep idle server connections open indefinitely.
  2. Virtual servers can compress data between the BIG-IP and servers.
  3. Virtual servers cannot perform load balancing without performing address translation.
  4. Virtual servers can reuse connections between the BIG-IP and server for multiple HTTP GETs.
  5. Virtual server processing always translates the virtual server address to the address of the chosen pool member.

Answer(s): D



Which tool is used on BIG-IP systems to capture data packets?

  1. tcpdump
  2. snoop
  3. ethereal
  4. qkview

Answer(s): A



Which statement is true regarding OneConnect processing?

  1. The virtual server must have UDP profile.
  2. Server-side request can utilize existing client-side connections.
  3. The number of client connection is reduced.
  4. Client-side request can utilize existing server-side connections.

Answer(s): D



How many events can be referenced in a given iRule?

  1. iRules are limited to one event, but a virtual server could be associated with multiple rules.
  2. iRules can have multiple events.
  3. Exactly one.
  4. iRules can have up to event if one is client-side and one is server-side.

Answer(s): B



Viewing page 6 of 93
Viewing questions 26 - 30 out of 460 questions
