Free NSE7_EFW-7.2 Exam Braindumps (page: 2)

Page 1 of 15
PDF with 64 Questions

Which two statements about metadata variables are true? (Choose two.)

  1. You create them on FortiGate
  2. They apply only to non-firewall objects.
  3. The metadata format is $<metadata_variabie_name>.
  4. They can be used as variables in scripts

Answer(s): A,D

Explanation:

Metadata variables in FortiGate are created to store metadata associated with different FortiGate features. These variables can be used in various configurations and scripts to dynamically replace the variable with its actual value during processing. A: You create metadata variables on FortiGate. They are used to store metadata for FortiGate features and can be called upon in different configurations.
D: They can be used as variables in scripts. Metadata variables are utilized within the scripts to dynamically insert values as per the context when the script runs.
Fortinet FortiOS Handbook: CLI Reference

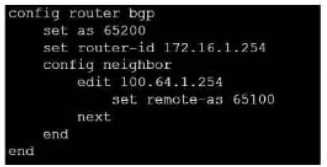

Refer to the exhibit, which contains a partial BGP combination.



You want to configure a loopback as the OGP source.
Which two parameters must you set in the BGP configuration? (Choose two)

  1. ebgp-enforce-multihop
  2. recursive-next-hop
  3. ibgp-enfoce-multihop
  4. update-source

Answer(s): A,D

Explanation:

To configure a loopback as the BGP source, you need to set the "ebgp-enforce-multihop" and "update-source" parameters in the BGP configuration. The "ebgp-enforce-multihop" allows EBGP connections to neighbor routers that are not directly connected, while "update-source" specifies the IP address that should be used for the BGP session.


Reference:

BGP on loopback, Loopback interface, Technical Tip: Configuring EBGP Multihop Load-Balancing, Technical Tip: BGP routes are not installed in routing table with loopback as update source



Exhibit.

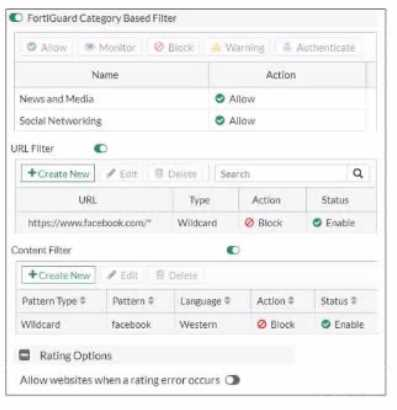

Refer to the exhibit, which shows a partial web filter profile conjuration What can you cone udo from this configuration about access to www.facebook, com, which is categorized as Social Networking?

  1. The access is blocked based on the Content Filter configuration
  2. The access is allowed based on the FortiGuard Category Based Filter configuration
  3. The access is blocked based on the URL Filter configuration
  4. The access is hocked if the local or the public FortiGuard server does not reply

Answer(s): C

Explanation:

The access to www.facebook.com is blocked based on the URL Filter configuration. In the exhibit, it shows that the URL "www.facebook.com" is specifically set to "Block" under the URL Filter section.


Reference:

Fortigate: How to configure Web Filter function on Fortigate, Web filter | FortiGate / FortiOS 7.0.2 | Fortinet Document Library, FortiGate HTTPS web URL filtering ... - Fortinet ... - Fortinet Community



An administrator has configured two fortiGate devices for an HA cluster.
While testing HA failover, the administrator notices that some of the switches in the network continue to send traffic to the former primary device What can the administrator do to fix this problem?

  1. Verify that the speed and duplex settings match between me FortiGate interfaces and the connected switch ports
  2. Configure set link -failed signal enable under-config system ha on both Cluster members
  3. Configure remote Iink monitoring to detect an issue in the forwarding path
  4. Configure set send-garp-on-failover enables under config system ha on both cluster members

Answer(s): D

Explanation:

Virtual MAC Address and Failover
- The new primary broadcasts Gratuitous ARP packets to notify the network that each virtual MAC is now reachable through a different switch port.
- Some high-end switches might not clear their MAC table correctly after a failover - Solution: Force former primary to shut down all its interfaces for one second when the failover happens (excluding heartbeat and reserved management interfaces):
#Config system ha set link-failed-signal enable end
- This simulates a link failure that clears the related entries from MAC table of the switches.
