You created a VPN community using VPN Manager on FortiManager. You also added gateways to the VPN community. Now you are trying to create firewall policies to permit traffic over the tunnel however, the VPN interfaces do not appear as available options.
Answer(s): D
To use the VPN interfaces in a policy, you need to install the VPN community and gateway configuration on the FortiGate devices first. This will create the VPN interfaces on the FortiGate and sync them with FortiManager.
Creating IPsec VPN communitiesVPN | FortiGate / FortiOS 7.2.0
Which two statements about the Security fabric are true? (Choose two.)
Answer(s): C,D
In the Security Fabric, only the root FortiGate sends logs to FortiAnalyzer (B). Additionally, only FortiGate devices with configuration-sync enabled receive and synchronize global Central Management Database (CMDB) objects that the root FortiGate sends (C). FortiGate uses the FortiTelemetry protocol to communicate with other FortiGates, not FortiAnalyzer (A). The last option (D) is incorrect as all FortiGates can collect and forward network topology information to FortiAnalyzer.
FortiOS Handbook - Security Fabric

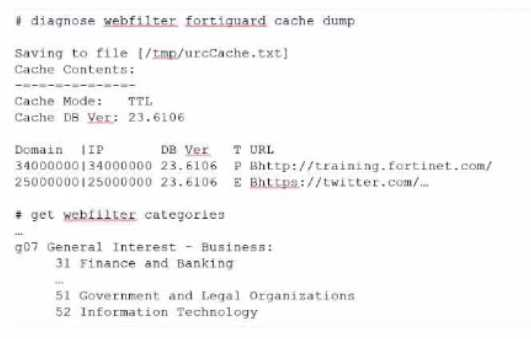

Exhibit.Refer to the exhibit, which shows the output from the webfilter fortiguard cache dump and webfilter categories commands.Using the output, how can an administrator determine the category of the training.fortinet.com am website?
Answer(s): B
Option B is correct because the administrator can determine the category of the training.fortinet.com website by looking up the hex value of 34 in the second command output. This is because the first command output shows that the domain and the IP of the website are both in category (Hex) 34, which corresponds to Information Technology in the second command output1.Option A is incorrect because the administrator does not need to convert the first three digits of theIP hex value to binary. The IP hex value is already in the same format as the category hex value, so the administrator can simply compare them without any conversion2.Option C is incorrect because the administrator does not need to add both the Pima in and Iphex values of 34 to get the category number. The Pima in and Iphex values are not related to the category number, but to the cache TTL and the database version respectively3.Option D is incorrect because the administrator does not need to convert the first two digits of the Domain hex value to a decimal value. The Domain hex value is already in the same format as the category hex value, so the administrator can simply compare them without any conversion2.
=1: Technical Tip: Verify the webfilter cache content42: Hexadecimal to Decimal Converter53: FortiGate - Fortinet Community6: Web filter | FortiGate / FortiOS 7.2.0 - Fortinet Documentation7
Which two statements about bfd are true? (Choose two)
Answer(s): B,C
BFD (Bidirectional Forwarding Detection) is a protocol that can quickly detect failures in the forwarding path between two adjacent devices. You can disable BFD at the protocol level by using the "set bfd disable" command under the OSPF or BGP configuration. BFD works for both OSPF and BGP protocols, as well as static routes and SD-WAN rules. Reference := BFD | FortiGate / FortiOS7.2.0 - Fortinet Document Library, section "BFD".
Winch two statements about ADVPN are true? (Choose two)
Answer(s): A,C
ADVPN (Auto Discovery VPN) is a feature that allows to dynamically establish direct tunnels (called shortcuts) between the spokes of a traditional Hub and Spoke architecture. The auto-discovery receiver must be set to enable on the spokes to allow them to receive NHRP messages from the hub and other spokes. NHRP (Next Hop Resolution Protocol) is used for on-demand tunnels, which are established when there is traffic between spokes. Routing is configured by enabling add-nhrp-route, not add-advpn-route. Reference := ADVPN | FortiGate / FortiOS 7.2.0 | Fortinet Document Library, Technical Tip: Fortinet Auto Discovery VPN (ADVPN)
