Which, three conditions are required for two FortiGate devices to form an OSPF adjacency? (Choose three.)
Answer(s): A,B,E
Option A is correct because the OSPF interface network types determine how the routers form adjacencies and exchange LSAs on a network segment. The network types must match for the routers to become neighbors1.Option B is correct because the OSPF router IDs are used to identify each router in the OSPF domain and to establish adjacencies. The router IDs must be unique for the routers to become neighbors2.Option E is correct because the authentication settings control how the routers authenticate each other before exchanging OSPF packets. The authentication settings must match for the routers to become neighbors3.Option C is incorrect because the OSPF interface priority settings are used to elect the designated router (DR) and the backup designated router (BDR) on a broadcast or non-broadcast multi-access network. The priority settings do not have to be unique for the routers to become neighbors, but they affect the DR/BDR election process4.Option D is incorrect because the OSPF link costs are used to calculate the shortest path to a destination network based on the bandwidth of the links. The link costs do not have to match for the routers to become neighbors, but they affect the routing decisions5.
=1: OSPF network types2: OSPF router ID3: OSPF authentication4: OSPF interface priority5: OSPF link cost

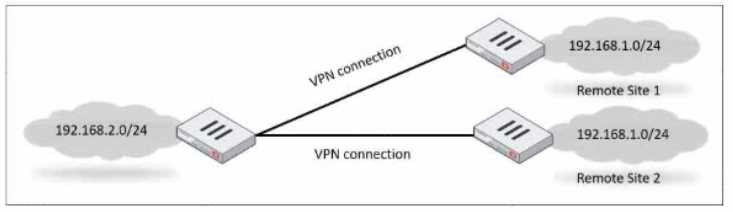

Refer to the exhibit, which shows a network diagram.Which IPsec phase 2 configuration should you impalement so that only one remote site is connected at any time?
Answer(s): C
To ensure that only one remote site is connected at any given time in an IPsec VPN scenario, you should use route-overlap with the option to either use-new or use-old. This setting dictates which routes are preferred and how overlaps in routes are handled, allowing for one connection to take precedence over the other (C).
FortiOS Handbook - IPsec VPN

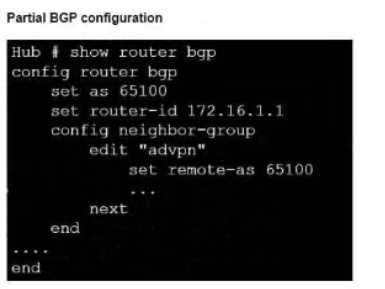

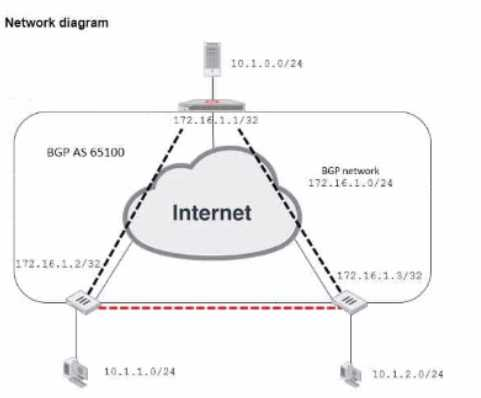

Exhibit.Refer to the exhibit, which contains an ADVPN network diagram and a partial BGP con figuration Which two parameters Should you configure in config neighbor range? (Choose two.)
Answer(s): A,C
In the ADVPN configuration for BGP, you should specify the prefix that the neighbors can advertise. Option A is correct as you would configure the BGP network prefix that should be advertised to the neighbors, which matches the BGP network in the diagram. Option C is also correct since you should reference the neighbor group configured for the ADVPN setup within the BGP configuration.
You want to configure faster failure detection for BGPWhich parameter should you enable on both connected FortiGate devices?
Answer(s): B
BFD (Bidirectional Forwarding Detection) is a protocol that provides fast failure detection for BGP by sending periodic messages to verify the connectivity between two peers1. BFD can be enabled on both connected FortiGate devices by using the command set bfd enable under the BGP configuration2.
= Technical Tip : FortiGate BFD implementation and examples ..., Configure BGP | FortiGate / FortiOS 7.0.2 - Fortinet Documentation

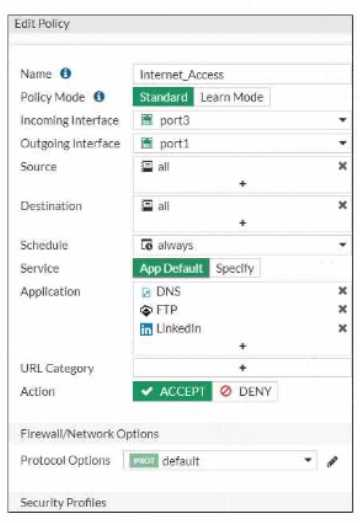

Exhibit.Refer to the exhibit, which contains a partial policy configuration.Which setting must you configure to allow SSH?
Option A is correct because to allow SSH, you need to specify SSH in the Service field of the policy configuration. This is because the Service field determines which types of traffic are allowed by the policy1. By default, the Service field is set to App Default, which means that the policy will use the default ports defined by the applications. However, SSH is not one of the default applications, so you need to specify it manually or create a custom service for it2.Option B is incorrect because configuring port 22 in the Protocol Options field is not enough to allow SSH. The Protocol Options field allows you to customize the protocol inspection and anomaly protection settings for the policy3. However, this field does not override the Service field, which still needs to match the traffic type.Option C is incorrect because including SSH in the Application field is not enough to allow SSH. The Application field allows you to filter the traffic based on the application signatures and categories4. However, this field does not override the Service field, which still needs to match the traffic type.Option D is incorrect because selecting an application control profile corresponding to SSH in the Security Profiles section is not enough to allow SSH. The Security Profiles section allows you to apply various security features to the traffic, such as antivirus, web filtering, IPS, etc. However, this section does not override the Service field, which still needs to match the traffic type.
=1: Firewall policies2: Services3: Protocol options profiles4: Application control
