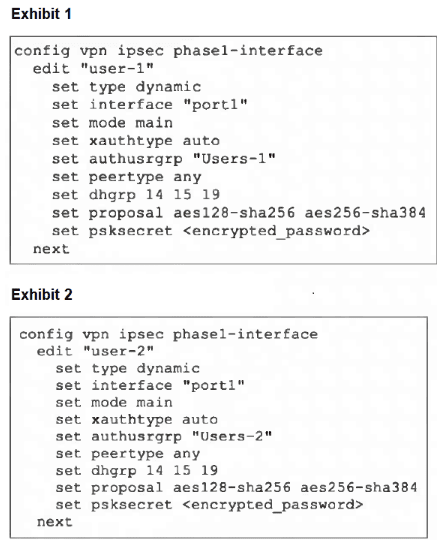

MULTIPLE CHOICERefer to the exhibits, which contain the partial configurations of two VPNs on FortiGate.An administrator has configured two VPNs for two different user groups. Users who are in the Users-2 group are not able to connect to the VPN. After running a diagnostics command, the administrator discovers that FortiGate is not matching the user-2 VPN for members of the Users-2 group.Which two changes must the administrator make to fix the issue? (Choose two.)
Answer(s): A,D
The key point is that the two VPNs are dynamic dialup IPsec tunnels on the same interface and both are using IKEv1 main mode. In this design, FortiGate cannot reliably distinguish which dialup phase1 to match before phase 1 completes.The uploaded Network Security Support Engineer 7.6 Study Guide shows that XAuth happens only after phase 1 is already established:''The IKE real-time debug shows, after phase 1, the exchange of extended authentication (XAuth) packets... You can also see the CFG_REPLY, showing the XAuth user and group name.''That means the user group is learned too late to be used for selecting the correct phase1 definition. So the fix must be applied to the phase1 matching method itself, not to XAuth.The FortiOS administration guide gives the exact rule for this scenario:''When the remote VPN peer has a dynamic IP address and is authenticated by a pre-shared key you must select Aggressive mode if there is more than one dialup phase 1 configuration for the interface IP address.''

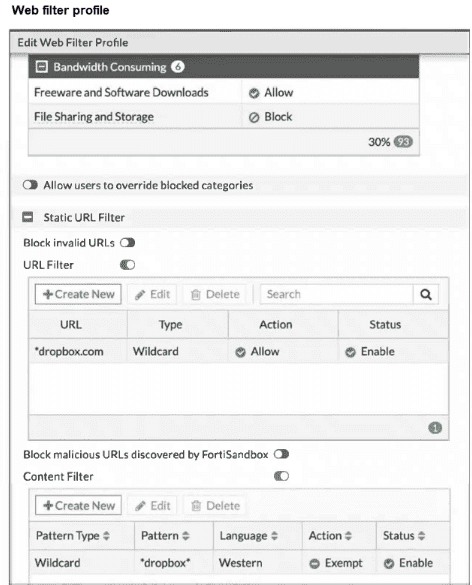

Refer to the exhibit, which shows a partial web filter profile configuration.The URL www.dropbox.com is categorized as File Sharing and Storage.Which action does FortiGate take if a user attempts to access www.dropbox.com?
Answer(s): B
The exhibit showing the web filter profile configuration is not visible. The action FortiGate takes on a URL depends on the category-based policy rules defined in the profile. For a File Sharing and Storage category URL like www.dropbox.com, the configured action could be: allow, deny/block, warn/prompt the user, redirect, or quarantine. The specific action depends on what rule is configured for that category in the exhibit.
In the SAML negotiation process, which section does the Identity Provider (IdP) provide the SAML attributes utilized in the authentication process to the Service Provider (SP)?
Answer(s): D
The correct answer is D. Assertion dump.The study guide states that: ''SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process.''It also shows the real-time SAML debug output under ''** Assertion Dump ****''**, where the SAML attributes appear inside the assertion, such as:<saml:Attribute Name='username'><saml:Attribute Name='groups'>The same study-guide page explicitly labels this area as ''Attributes sent by IdP''So, although the IdP sends an authentication response overall, the actual section that contains the SAML attributes is the Assertion dump
You are configuring BGP on a dual-hub SD-WAN overlay using the FortiManager VPN manager. The primary hub and secondary hub have different AS numbers (AS 65001 and AS 65002). Your design requires that branch offices prefer the primary hub for outbound traffic under normal conditions, automatically converge to the secondary hub within 3 seconds if the primary fails, and perform asymmetric traffic inspection in a cloud environment where return traffic may arrive via a different path. Which combination of BGP and FortiManager settings is most appropriate?
Answer(s): A
The correct approach uses IBGP between hubs with a unified AS number (converging them into a single EBGP peer from the branches' perspective), BFD for sub-3-second failure detection, and BGP local preference to achieve deterministic hub selection. Metadata variables on FortiManager enable dynamic hub IP assignment, which is essential for cloud environments where IP addresses may be assigned from pools or elastic interfaces. This configuration supports asymmetric traffic because BGP routing is independent of physical return path, and FortiGate session tracking handles asymmetric returns via cloud interfaces.Option B uses EBGP correctly but omits BFD, which is critical for sub-second convergence. Option C implements route reflectors unnecessarily (appropriate for very large deployments, not dual-hub), and disabling BFD contradicts the 3-second convergence requirement. Option D confuses graceful-restart (a BGP optimization for maintaining state during restart) with fast failure detection, and IP route tagging alone cannot enforce asymmetric traffic inspection policy.
During which phase of IKEv2 does the Diffie-Helman key exchange take place?
In IKEv2, the Diffie-Hellman (DH) key exchange takes place during the IKE_SA_INIT phase (the first phase).The IKE_SA_INIT phase is responsible for:Negotiating cryptographic algorithmsPerforming the DH key exchange to establish a shared secretEstablishing the IKE Security Association (SA)Providing mutual authentication preparationThis is different from IKEv1, where the DH exchange could occur in either Main Mode (phase 1) or Aggressive Mode. In IKEv2, the DH exchange is consolidated into the initial IKE_SA_INIT exchange.
