MULTIPLE CHOICEWhich two statements are true regarding heartbeat messages sent from an FSSO collector agent to FortiGate? (Choose two.)
Answer(s): B,C
According to the official Fortinet documentation (Technical Tip: Useful FSSO Commands), heartbeat messages play a crucial role in communication between the FSSO Collector Agent and FortiGate. These messages are regularly sent from the Collector Agent to verify its status, maintain session awareness, and confirm connectivity between the authentication infrastructure and FortiGate appliances.Option B is confirmed by Fortinet, as the collector agent logs on Windows or its management console will specifically note heartbeat events, connection status, and any issues maintaining contact with FortiGate units.Option C is validated by both official CLI documentation and the technical tip linked. On FortiGate, heartbeat messages from the collector agent are visible using real-time debug tools such asdiagnose debug application authdor FSSO-specific commands. These enable administrators to monitor live logon states, session status, and connection health directly from the FortiGate CLI. The debug stream shows heartbeats received and their effect on active logons, associating health monitoring with active sessions.Heartbeat operation is fully automated once FSSO is set up---there is no requirement for manual enablement or configuration, aligning with Fortinet's philosophy of seamless integration and centralized management across the Security Fabric. This ensures that both FortiGate and the collector agent can quickly and reliably detect any miscommunication or outage, addressing authentication issues proactively.Technical Tip: Useful FSSO Commands (Fortinet Community)FortiOS Administration Guide: FSSO, Collector Agent, Heartbeat, CLI Debug

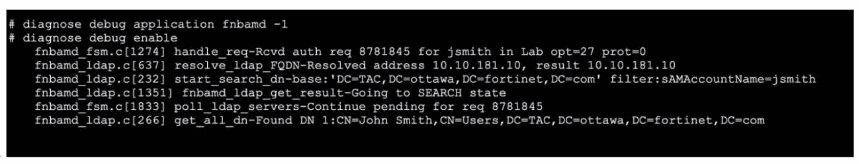

MULTIPLE CHOICERefer to the exhibit, which shows a truncated output of a real-time LDAP debug.What two conclusions can you draw from the output? (Choose two.)
Answer(s): A,D
The exhibit shows these key lines:handle_req-Rcvd auth req ... for jsmith in Lab start_search_dn-base:'DC=TAC,DC=ottawa,DC=fortinet,DC=com' filter:sAMAccountName=jsmith get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=comThe study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:handle_req-Rcvd auth req ... for jsmith in Lab ...That supports A: Lab is the configured LDAP server name being used for this authentication request.For the LDAP flow stage, the study guide states:''An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.'' It also says that if the LDAP server finds the user, the output shows the user's full DN.That matches the exhibit's start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.Why the other options are wrong:B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2, and only in step 3 does FortiGate bind using the user DN.C is wrong because the exhibit is showing step 2 (Search Request), not step 3 (Bind Request). The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to 'CN=John Smith,...'

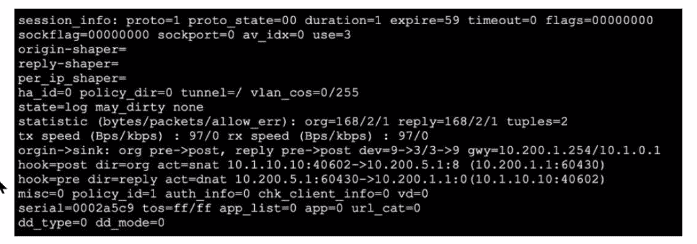

Refer to the exhibit, which shows a session entry.Which statement about this session is true?
Answer(s): B
The session output reveals a session with proto=1 (ICMP) and the origin and reply directions show address and NAT translations. Specifically, thehook=post dir=org act=snatshows that source NAT is performed for outgoing packets, where the source 10.1.10.10:40602 is translated to 10.200.5.1:8 (likely ICMP id 8, not a TCP/UDP port). The reply direction,hook=pre dir=reply act=dnat, indicates destination NAT for incoming packets: packets incoming for 10.200.5.1:60430 are destination-NATed to 10.1.10.10:40602. The gateway (gwy) is listed as 10.200.1.254/10.1.0.1, which for outgoing traffic means that return traffic is directed to the gateway (10.200.1.254), per the NAT policy. This is confirmed by the FortiOS Session Table Guide, which explains that the returned ICMP reply will be routed out to this NAT gateway. The session statistics and logical flow (SNAT out, matching DNAT in) reinforce that reply traffic to the initiator traverses via 10.200.1.254.FortiOS Administration Guide: Session Table, NAT, and Route InteractionFortinet Technical Note: Diagnose sys session list, Direction and NAT Analysis
Which statement about parallel path processing is correct (PPP)?
Answer(s): A
Parallel Path Processing (PPP) in FortiOS refers to the system's ability to evaluate and select among multiple processing paths---often involving dedicated network processors, content processors, or CPU-based workflows---to optimally process packets. The official documentation highlights that the PPP engine dynamically selects which hardware or software path to use for each session based on session characteristics, policy configuration, and traffic type. This dynamic selection results in optimal throughput and resource utilization.The document specifies that PPP assesses several processing paths in parallel, using decision logic to determine whether a session should be offloaded to specialist hardware (like NP6, CP9, etc.) or stay in the CPU path, ensuring that each packet is handled by the most efficient available method under current load and policy. Hardware and software configurations both influence this outcome, but it is the PPP engine's decision-making that defines the optimal path per session.Fortinet FortiGate Handbook: Parallel Path ProcessingFortinet FortiOS Technical Documentation: Packet Flow and Path Selection
In IKEv2, which exchange establishes the first CHILD_SA?
Answer(s): D
The correct answer is D. IKE_AUTH.The study guide explicitly states:''IKE_Auth exchange:* Performs the mutual authentication of two IKE endpoints.* Configures settings like IP/mask, DNS, and so on.* Sets up the piggyback of a child SA. Negotiates IP flow and security settings for the IPsec SA.''It also says:''By default, a piggyback child (IPsec) SA is negotiated along with the IKEv2 SA during IKE_AUTH. If additional IPsec SAs are needed ... they are negotiated during subsequent CREATE_CHILD_SA exchanges.''Why the other options are wrong:A . IKE_SA_INIT is incorrect because this exchange negotiates the security settings to protect the IKE traffic, not the first CHILD_SA.B . INFORMATIONAL is incorrect because it is used to convey control messages between IKE endpoints.C . CREATE_CHILD_SA is incorrect for the first CHILD_SA, because it is used to create new additional child SAs or rekey existing ones after the initial exchange.
