Free NSE7_PBC-7.2 Exam Braindumps (page: 3)

Page 2 of 16
PDF with 59 Questions

Which two attachments are necessary to connect a transit gateway to an existing VPC with BGP? (Choose two )

  1. A transport attachment
  2. A BGP attachment
  3. A connect attachment
  4. A GRE attachment

Answer(s): A,C

Explanation:

The correct answer is A and C. A transport attachment and a connect attachment are necessary to connect a transit gateway to an existing VPC with BGP.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To connect a transit gateway to an existing VPC with BGP, you need to do the following steps:

Create a transport attachment. A transport attachment is a resource that connects a VPC or VPN to a transit gateway. You can specify the BGP options for the transport attachment, such as the autonomous system number (ASN) and the BGP peer IP address.

Create a connect attachment. A connect attachment is a resource that enables you to use your own appliance to provide network services for traffic that flows through the transit gateway. You can use a connect attachment to route traffic between the transport attachment and your appliance using GRE tunnels and BGP.

The other options are incorrect because:

A BGP attachment is not a valid type of attachment for a transit gateway. BGP is a protocol that enables dynamic routing between the transit gateway and the VPC or VPN.

A GRE attachment is not a valid type of attachment for a transit gateway. GRE is a protocol that encapsulates packets for tunneling purposes. GRE tunnels are established between the connect attachment and your appliance.

: [Transit Gateways - Amazon Virtual Private Cloud] : [Transit Gateway Connect - Amazon Virtual Private Cloud]



You have created a TGW route table to route traffic from your spoke VPC to the security VPC where two FortiGate devices are inspecting traffic. Your spoke VPC CIDR block is already propagated to the Transit Gateway (TGW) route table.

Which type of attachment should you use to advertise routes through BGP from the spoke VPC to the security VPC?

  1. Connect attachment
  2. VPC attachment
  3. Route attachment
  4. GRE attachment

Answer(s): B

Explanation:

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels.


Reference:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

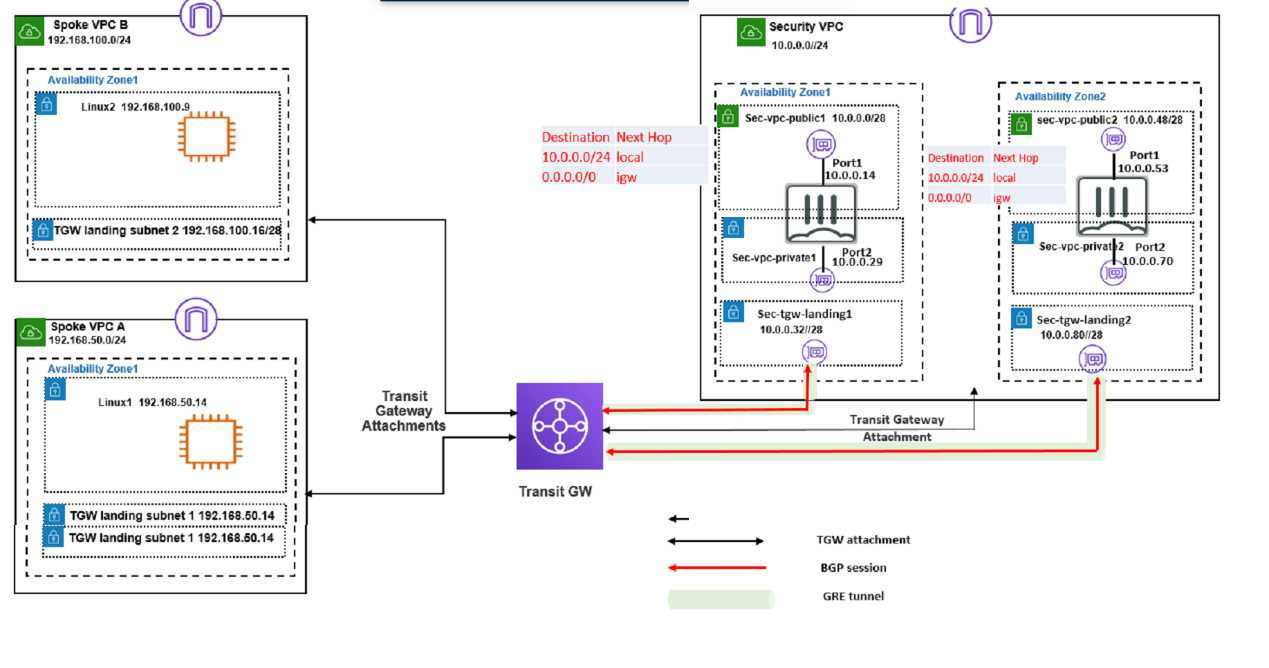

Refer to the exhibit



A customer has deployed an environment in Amazon Web Services (AWS) and is now trying to send outbound traffic from the Linux1 and Linux2 instances to the internet through the security VPC (virtual private cloud). The FortiGate policies are configured to allow all outbound traffic; however, the traffic is not reaching the FortiGate internal interface. Assume there are no issues with the Transit Gateway (TGW) configuration

Which two settings must the customer add to correct the issue? (Choose two.)

  1. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the Internet Gateway (IOW).
  2. Both landing subnets in the spoke VPCs must have a 0.0 00/0 traffic route to the TGW
  3. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.
  4. The four landing subnets in all the VPCs must have a 0.0 0 0/0 traffic route to the TGW

Answer(s): B,C

Explanation:

The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps:

In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.

The other options are incorrect because:

Adding a 0.0.0.0/0 traffic route to the Internet Gateway (IGW) in the spoke VPCs is not correct, as this would bypass the TGW and the security VPC and send all traffic directly to the internet.

Adding a 0.0.0.0/0 traffic route to the TGW in all the VPCs is not necessary, as only the spoke VPCs need to send traffic to the TGW. The security VPC needs to send traffic to the FortiGate port2.

: Transit Gateways - Amazon Virtual Private Cloud : Fortinet Documentation Library - Deploying FortiGate VMs on AWS



Which two Amazon Web Services (AWS) features support east-west traffic inspection within the AWS cloud by the FortiGate VM? (Choose two.)

  1. A NAT gateway with an EIP
  2. A transit gateway with an attachment
  3. An Internet gateway with an EIP
  4. A transit VPC

Answer(s): B,D

Explanation:

The correct answer is B and D. A transit gateway with an attachment and a transit VPC support east- west traffic inspection within the AWS cloud by the FortiGate VM.

According to the Fortinet documentation for Public Cloud Security, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. By using a transit gateway with an attachment, you can route traffic from your spoke VPCs to your security VPC, where the FortiGate VM can inspect the traffic1.

A transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). By using a transit VPC, you can deploy the FortiGate VM as a virtual appliance that provides network security and threat prevention for your VPCs2.

The other options are incorrect because:

A NAT gateway with an EIP is a service that enables instances in a private subnet to connect to the internet or other AWS services, but prevents the internet from initiating a connection with those instances. A NAT gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM3.

An Internet gateway with an EIP is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. An Internet gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM4.

1: Fortinet Documentation Library - Deploying FortiGate VMs on AWS 2: [Fortinet Documentation Library - Transit VPC on AWS] 3: [NAT Gateways - Amazon Virtual Private Cloud] 4: [Internet Gateways
- Amazon Virtual Private Cloud]
