You are automating configuration changes on one of the FortiGate VMS using Linux Red Hat Ansible.How does Linux Red Hat Ansible connect to FortiGate to make the configuration change?
Answer(s): C
Ansible connects to FortiGate using an API, which is a method of communication between different software components. Ansible uses the fortios_* modules to interact with the FortiOS API, which is a RESTful API that allows configuration and monitoring of FortiGate devices12. Ansible can use either HTTP or HTTPS as the transport protocol, and can authenticate with either a username and password or an API token3.The other options are incorrect because:Ansible does not use TCP port 21 to connect to FortiGate. Port 21 is typically used for FTP, which is not supported by FortiOS4.Ansible does not use SSH as a connection method to FortiOS. SSH is a secure shell protocol that allows remote command execution and file transfer, but it is not the preferred way of automating configuration changes on FortiGate devices.Ansible does not use YAML to connect to FortiGate. YAML is a data serialization language that Ansible uses to write playbooks and inventory files, but it is not a connection method.
Fortinet.Fortios -- Ansible DocumentationFortiOS REST API ReferenceFortiOS Module Guide -- Ansible DocumentationFortiOS 7.0 CLI Reference[Connection methods and details -- Ansible Documentation][YAML Syntax -- Ansible Documentation]

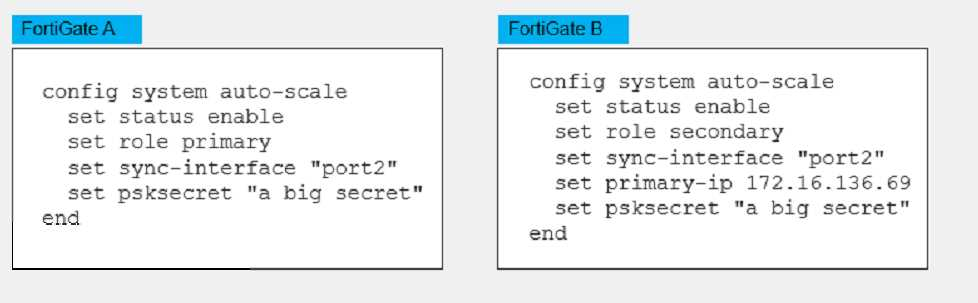

Refer to the exhibitAn administrator deployed an HA active-active load balance sandwich in Microsoft Azure. The setup requires configuration synchronization between devices-What are two outcomes from the configured settings? (Choose two.)
Answer(s): B,D
B . FortiGate A and FortiGate B are two independent devices. This means that they are not part of a cluster or a high availability group, and they do not share the same configuration or state information. They are configured as standalone FortiGates with standalone configuration synchronization enabled1. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname1. D. It does not synchronize the FortiGate hostname. This is one of the settings that are excluded from the standalone configuration synchronization, as mentioned above. The hostname is a unique identifier for each FortiGate device, and it should not be changed by the synchronization process1.The other options are incorrect because:FortiGate-VM instances are not scaled out automatically according to predefined workload levels. This is a feature of the auto scaling solution for FortiGate-VM on Azure, which requires a different deployment and configuration than the one shown in the exhibit2. The exhibit shows a static deployment of two FortiGate-VM instances behind an Azure load balancer, which does not support auto scaling.By default, FortiGate does not use FGCP. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group3. However, the exhibit shows that the FortiGates are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

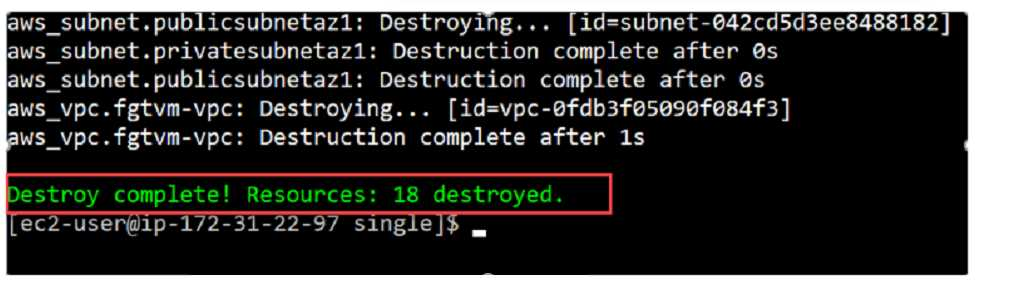

Refer to the exhibitAn administrator deployed a FortiGate-VM in a high availability (HA)(active/passive) architecture in Amazon Web Services (AWS) using Terraform for testing purposes. At the same time, the administrator deployed a singleLinux server using AWS MarketplaceWhich two options are available for the administrator to delete all the resources created in this test? (Choose two.)
Answer(s): A,D
A . Use the terraform destroy command. This command is used to remove all the resources that were created using the Terraform configuration1. It is the opposite of the terraform apply command, which is used to create resources. The terraform destroy command will first show a plan of what resources will be destroyed, and then ask for confirmation before proceeding. The command will also update the state file to reflect the changes. D. The administrator must manually delete the Linux server. This is because the Linux server was not deployed using Terraform, but using AWS Marketplace2. Therefore, Terraform does not have any information about the Linux server in its state file, and cannot manage or destroy it. The administrator will have to use the AWS console or CLI to delete the Linux server manually.The other options are incorrect because:There is no terraform validate command. The correct command is terraform plan, which is used to show a plan of what changes will be made by applying the configuration3. However, this command does not delete any resources, it only shows what will happen if terraform apply or terraform destroy is run.There is no terraform destroy all command. The correct command is terraform destroy, which will destroy all the resources in the current configuration by default1. There is no need to add an all argument to the command.
You are tasked with deploying a FortiGate HA solution in Amazon Web Services (AWS) using Terraform What are two steps you must take to complete this deployment? (Choose two.)
Answer(s): B,C
To deploy a FortiGate HA solution in AWS using Terraform, you need to create an AWS IAM user with permissions to access the AWS resources and services required by the FortiGate-VM. You also need to use CloudShell to install Terraform, which is a tool for building, changing, and versioning infrastructure as code.
Deploying FortiGate-VM using Terraform | AWS Administration GuideSetting up IAM roles | AWS Administration GuideLaunching the instance using roles and user data | AWS Administration GuideTerraform by HashiCorp

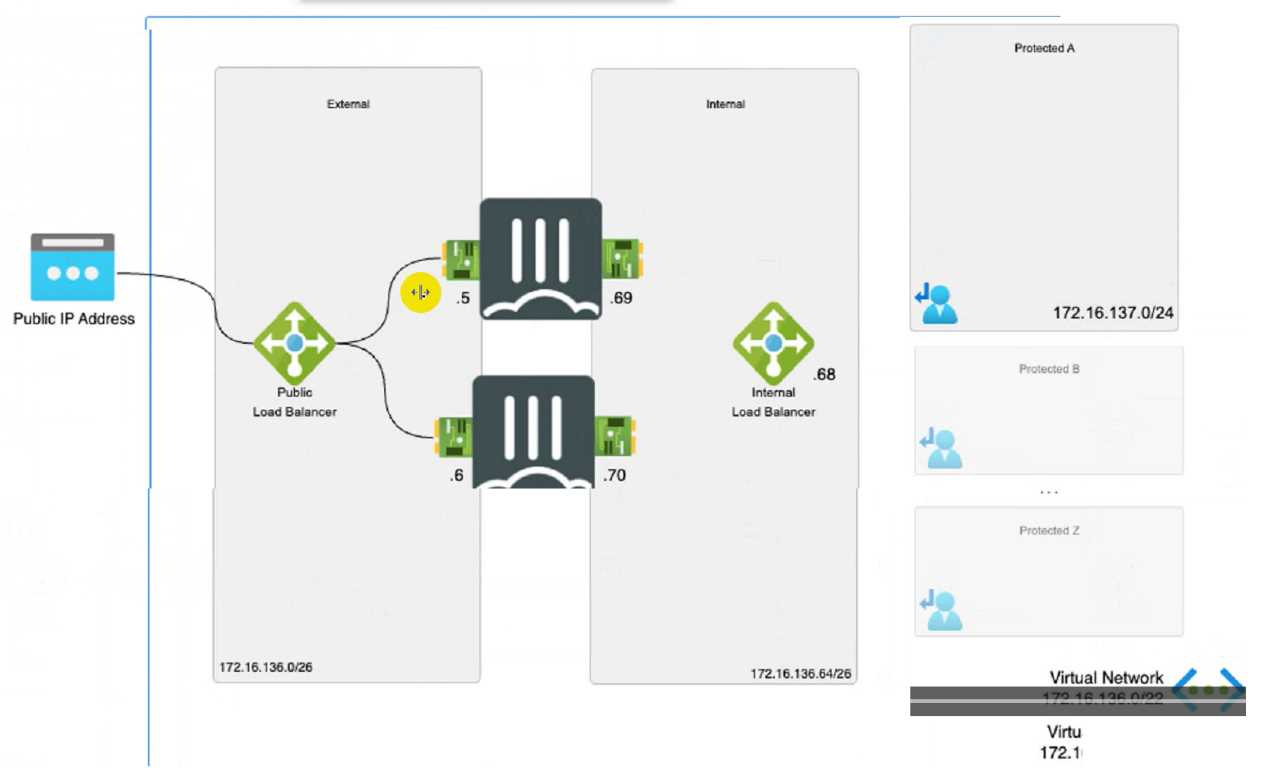

Refer to the exhibitConsider the active-active load balance sandwich scenario in Microsoft Azure.What are two important facts in the active-active load balance sandwich scenario? (Choose two )
B . It is recommended to enable NAT on FortiGate policies. This is because the Azure load balancer uses a hash-based algorithm to distribute traffic to the FortiGate instances, and it relies on the source and destination IP addresses and ports of the packets1. If NAT is not enabled, the source IP address of the packets will be the same as the load balancer's frontend IP address, which will result in uneven distribution of traffic and possible asymmetric routing issues1. Therefore, it is recommended to enable NAT on the FortiGate policies to preserve the original source IP address of the packets and ensure optimal load balancing and routing1. D. It supports session synchronization for handling asynchronous traffic. This means that the FortiGate instances can synchronize their session tables with each other, so that they can handle traffic that does not follow the same path as the initial packet of a session2. For example, if a TCP SYN packet is sent to FortiGate A, but the TCP SYN-ACK packet is sent to FortiGate B, FortiGate B can forward the packet to FortiGate A by looking up the session table2. This feature allows the FortiGate instances to handle asymmetric traffic that may occur due to the Azure load balancer's hash-based algorithm or other factors.The other options are incorrect because:It does not use the vdom-exception command to exclude the configuration from being synced. The vdom-exception command is used to exclude certain configuration settings from being synchronized between FortiGate devices in a cluster or a high availability group3. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, but they are standalone devices with standalone configuration synchronization enabled. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname.It does not use the FGCP protocol. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.
