Free Fortinet NSE8_812 Exam Questions (page: 5)

Page 5 of 28
PDF with 118 Questions

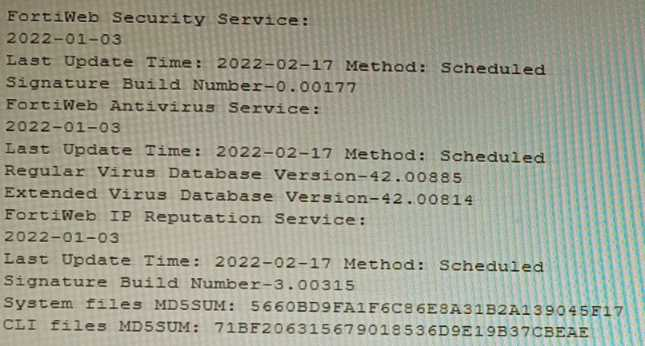

Refer to the CLI output:



Given the information shown in the output, which two statements are correct? (Choose two.)

  1. Geographical IP policies are enabled and evaluated after local techniques.
  2. Attackers can be blocked before they target the servers behind the FortiWeb.
  3. The IP Reputation feature has been manually updated
  4. An IP address that was previously used by an attacker will always be blocked
  5. Reputation from blacklisted IP addresses from DHCP or PPPoE pools can be restored

Answer(s): B,E

Explanation:

The CLI output shown in the exhibit indicates that FortiWeb has enabled IP Reputation feature with local techniques enabled and geographical IP policies enabled after local techniques (set geoip- policy-order after-local). IP Reputation feature is a feature that allows FortiWeb to block or allow traffic based on the reputation score of IP addresses, which reflects their past malicious activities or behaviors. Local techniques are methods that FortiWeb uses to dynamically update its own blacklist based on its own detection of attacks or violations from IP addresses (such as signature matches, rate limiting, etc.). Geographical IP policies are rules that FortiWeb uses to block or allow traffic based on the geographical location of IP addresses (such as country, region, city, etc.). Therefore, based on the output, one correct statement is that attackers can be blocked before they target the servers behind the FortiWeb. This is because FortiWeb can use IP Reputation feature to block traffic from IP addresses that have a low reputation score or belong to a blacklisted location, which prevents them from reaching the servers and launching attacks. Another correct statement is that reputation from blacklisted IP addresses from DHCP or PPPoE pools can be restored. This is because FortiWeb can use local techniques to remove IP addresses from its own blacklist if they stop sending malicious traffic for a certain period of time (set local-techniques-expire-time), which allows them to regain their reputation and access the servers. This is useful for IP addresses that are dynamically assigned by DHCP or PPPoE and may change frequently.


Reference:

https://docs.fortinet.com/document/fortiweb/6.4.0/administration-guide/19662/ip-reputation https://docs.fortinet.com/document/fortiweb/6.4.0/administration-guide/19662/geographical-ip- policies https://docs.fortinet.com/document/fortiweb/7.4.2/administration-guide/608374/ip-reputation- blocklisting-source-ips-with-poor-reputation Fortinet compiles a reputation for each public IP address. Clients will have poor reputations if they have been participating in attacks, willingly or otherwise. Because blacklisting innocent clients is equally undesirable, Fortinet also restores the reputations of clients that improve their behavior. This is crucial when an infected computer is cleaned, or in DHCP or PPPoE pools where an innocent client receives an IP address that was previously leased by an attacker.

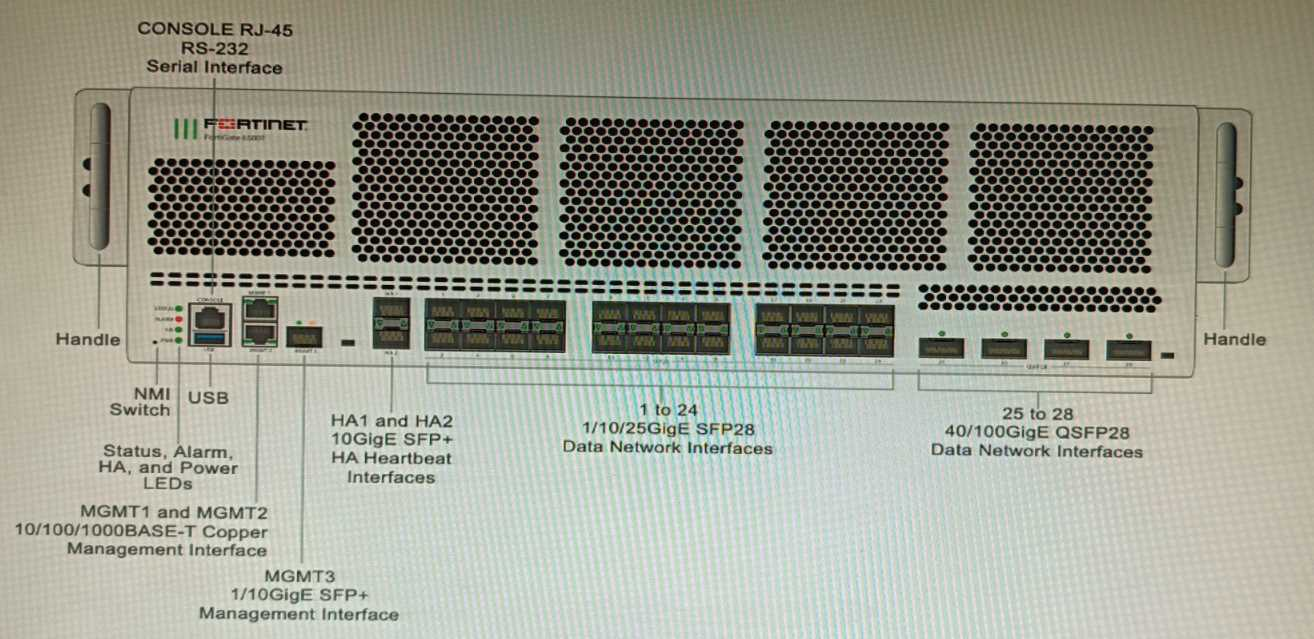

Refer to the exhibit.



You are deploying a FortiGate 6000F. The device should be directly connected to a switch. In the future, a new hardware module providing higher speed will be installed in the switch, and the connection to the FortiGate must be moved to this higher-speed port. You must ensure that the initial FortiGate interface connected to the switch does not affect any other port when the new module is installed and the new port speed is defined.

How should the initial connection be made?

  1. Connect the switch on any interface between ports 21 to 24
  2. Connect the switch on any interface between ports 25 to 28
  3. Connect the switch on any interface between ports 1 to 4
  4. Connect the switch on any interface between ports 5 to 8.

Answer(s): B


Reference:

FortiGate 6000F Front Panel Interfaces: https://docs.fortinet.com/document/fortigate- 6000/hardware/fortigate-6000f-system-guide/827055/front-panel-interfaces https://docs.fortinet.com/document/fortigate-6000/7.0.12/fortigate-6000- handbook/633498/interface-groups-and-changing-data-interface-speeds



Which feature must you enable on the BGP neighbors to accomplish this goal?

  1. Graceful-restart
  2. Deterministic-med
  3. Synchronization
  4. Soft-reconfiguration

Answer(s): A

Explanation:

Graceful-restart is a feature that allows BGP neighbors to maintain their routing information during a BGP restart or failover event, without disrupting traffic forwarding or causing route flaps. Graceful- restart works by allowing a BGP speaker (the restarting router) to notify its neighbors (the helper routers) that it is about to restart or failover, and request them to preserve their routing information and forwarding state for a certain period of time (the restart time). The helper routers then mark the routes learned from the restarting router as stale, but keep them in their routing table and continue forwarding traffic based on them until they receive an end-of-RIB marker from the restarting router or until the restart time expires. This way, graceful-restart can minimize traffic disruption and routing instability during a BGP restart or failover event.


Reference:

https://docs.fortinet.com/document/fortigate/7.0.0/cookbook/19662/bgp-graceful-restart



Refer to the exhibit, which shows a Branch1 configuration and routing table.

In the SD-WAN implicit rule, you do not want the traffic load balance for the overlay interface when all members are available.
In this scenario, which configuration change will meet this requirement?

  1. Change the load-balance-mode to source-ip-based.
  2. Create a new static route with the internet sdwan-zone only
  3. Configure the cost in each overlay member to 10.
  4. Configure the priority in each overlay member to 10.

Answer(s): D

Explanation:

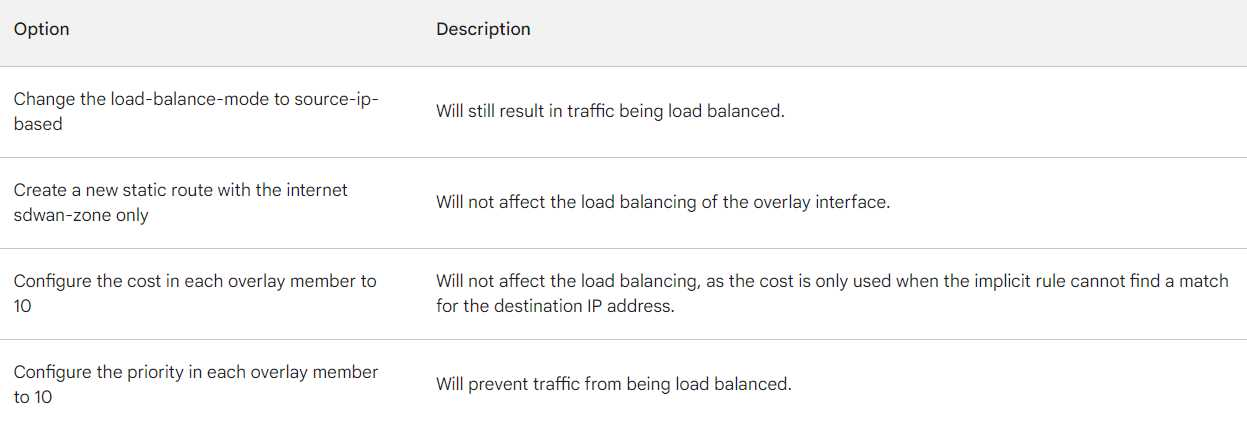

The default load balancing mode for the SD-WAN implicit rule is source IP based. This means that traffic will be load balanced evenly between the overlay members, regardless of the member's priority.
To prevent traffic from being load balanced, you can configure the priority of each overlay member to 10. This will make the member ineligible for load balancing. The other options are not correct. Changing the load balancing mode to source-IP based will still result in traffic being load balanced. Creating a new static route with the internet sdwan-zone only will not affect the load balancing of the overlay interface. Configuring the cost in each overlay member to 10 will also not affect the load balancing, as the cost is only used when the implicit rule cannot find a match for the destination IP address.



https://docs.fortinet.com/document/fortigate/6.4.0/sd-wan-deployment-for- mssps/775385/defining-interface-members
